TYPE: Residential/ Custom Hybrid Adobe Universal Home™

SERIES: 009 Prototype

YEAR: 2020

CLIENT: Matt Barber

LOCATION: Idalou, Texas

SIZE: 2,717 (4 Bed, 3 Bath, 2 Car)



PERFORMANCE STUDY

STUDY DURATION: In Progress

AVG. ENERGY CONSUMPTION PER MONTH: TBD



CONSTRUCTION

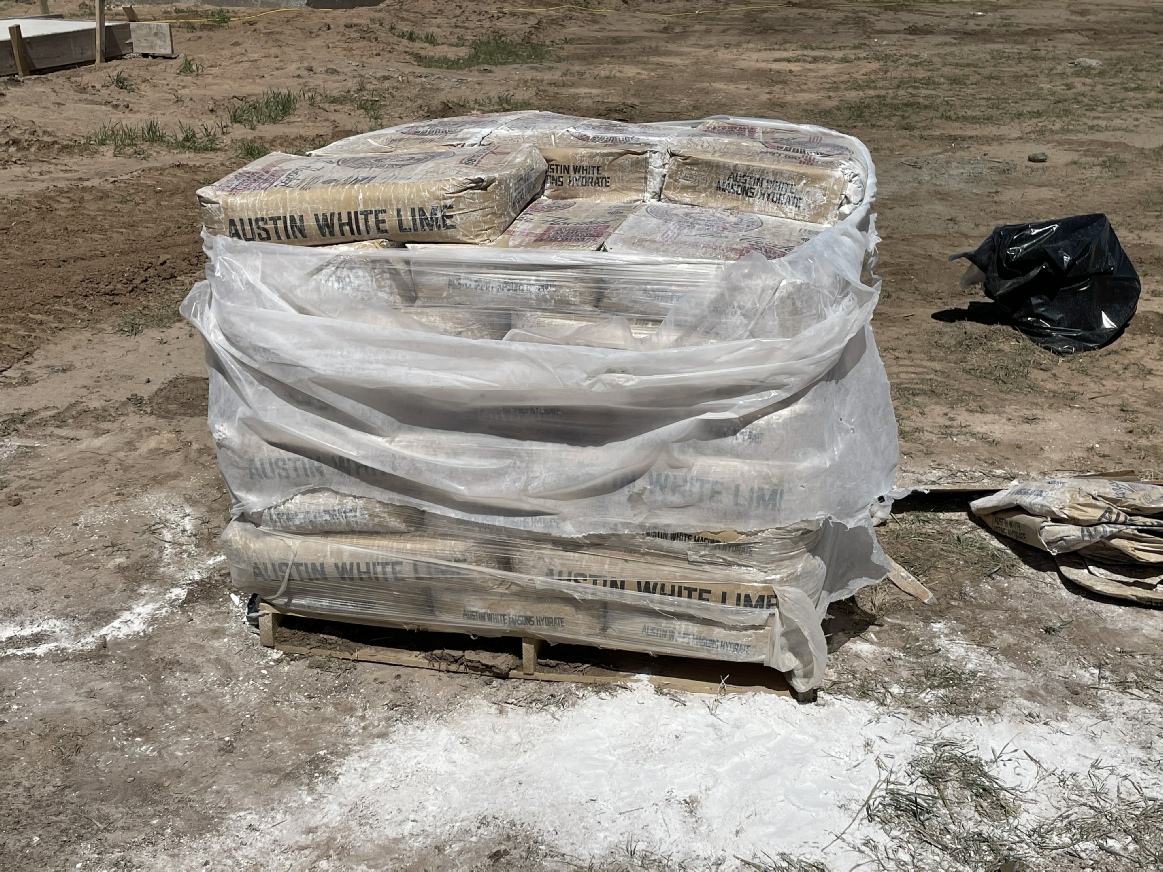

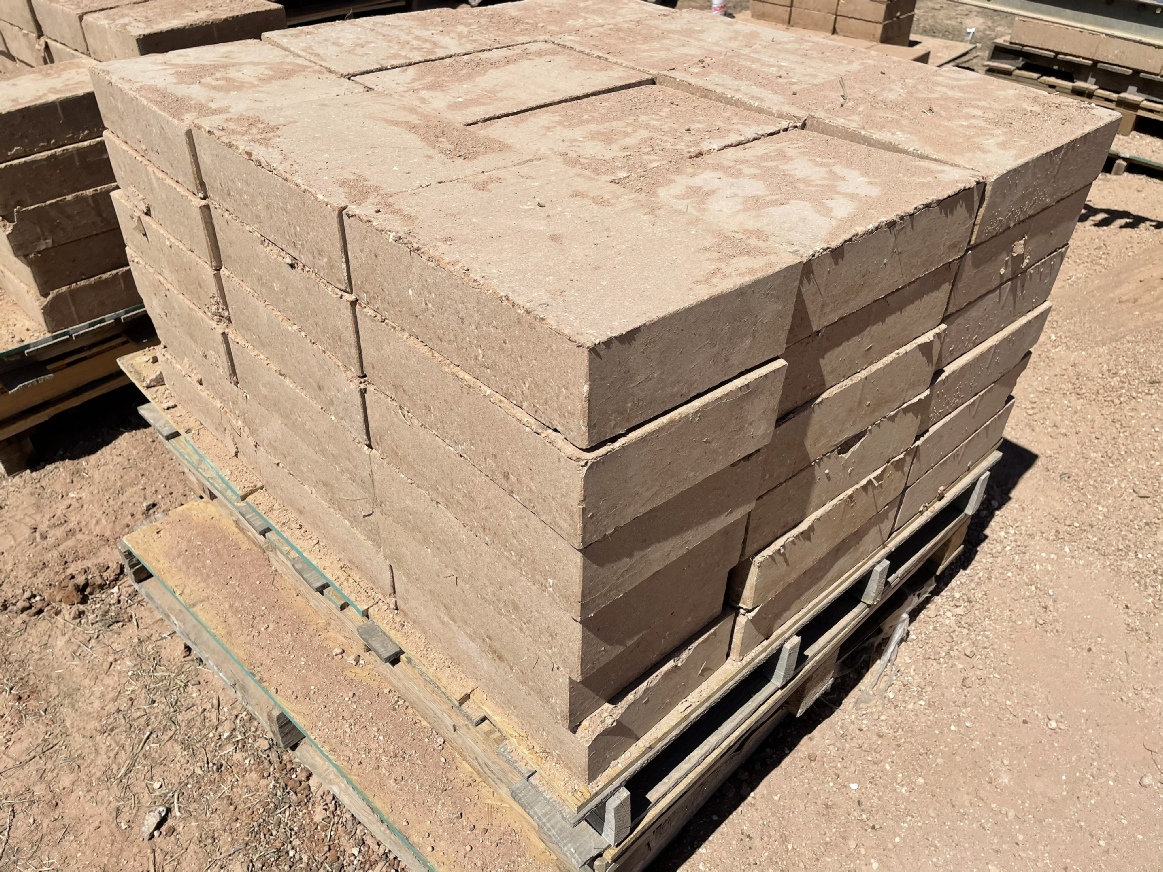

WALL ASSEMBLY: Lime Stabilized Compressed Earth Block

ROOF SYSTEM: Asphalt Shingle

TOTAL COST: $424,000

COST PER SQUARE FOOT: $156.05

DESIGN AND PURPOSE

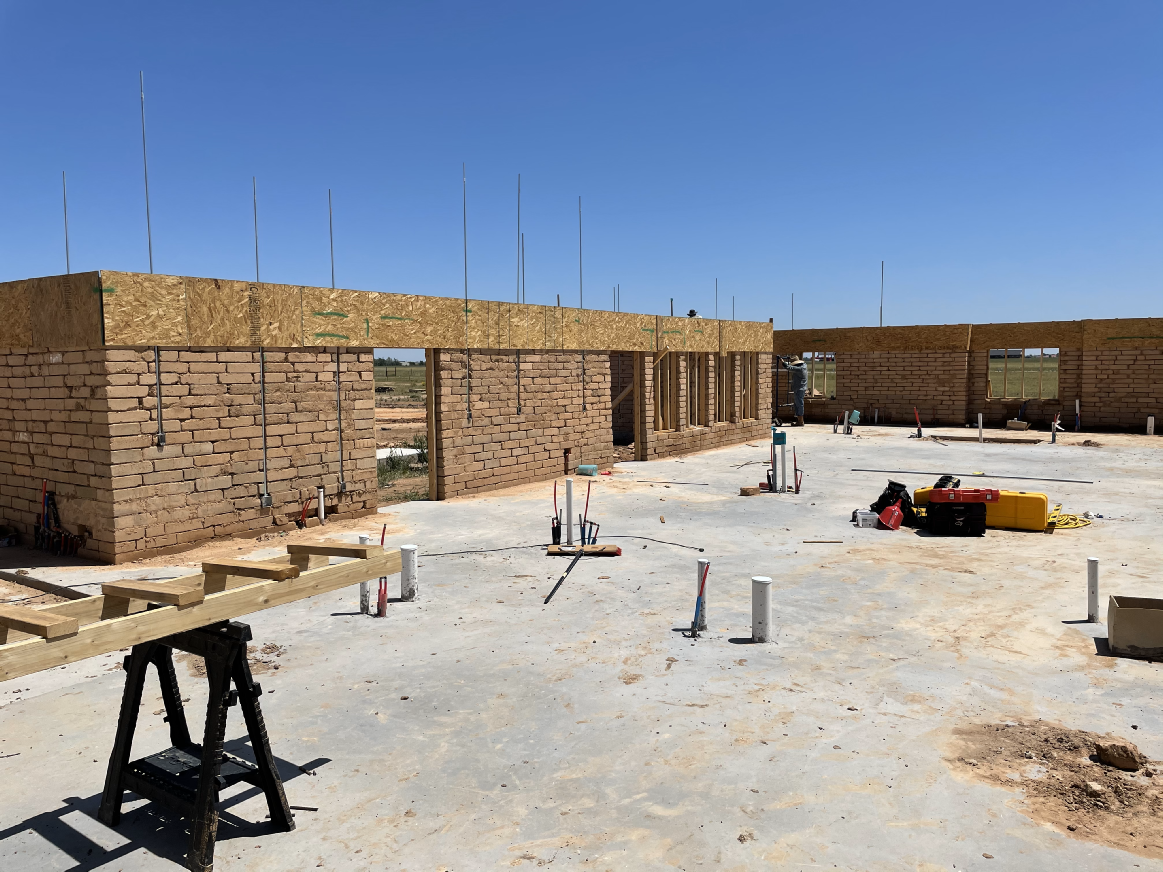

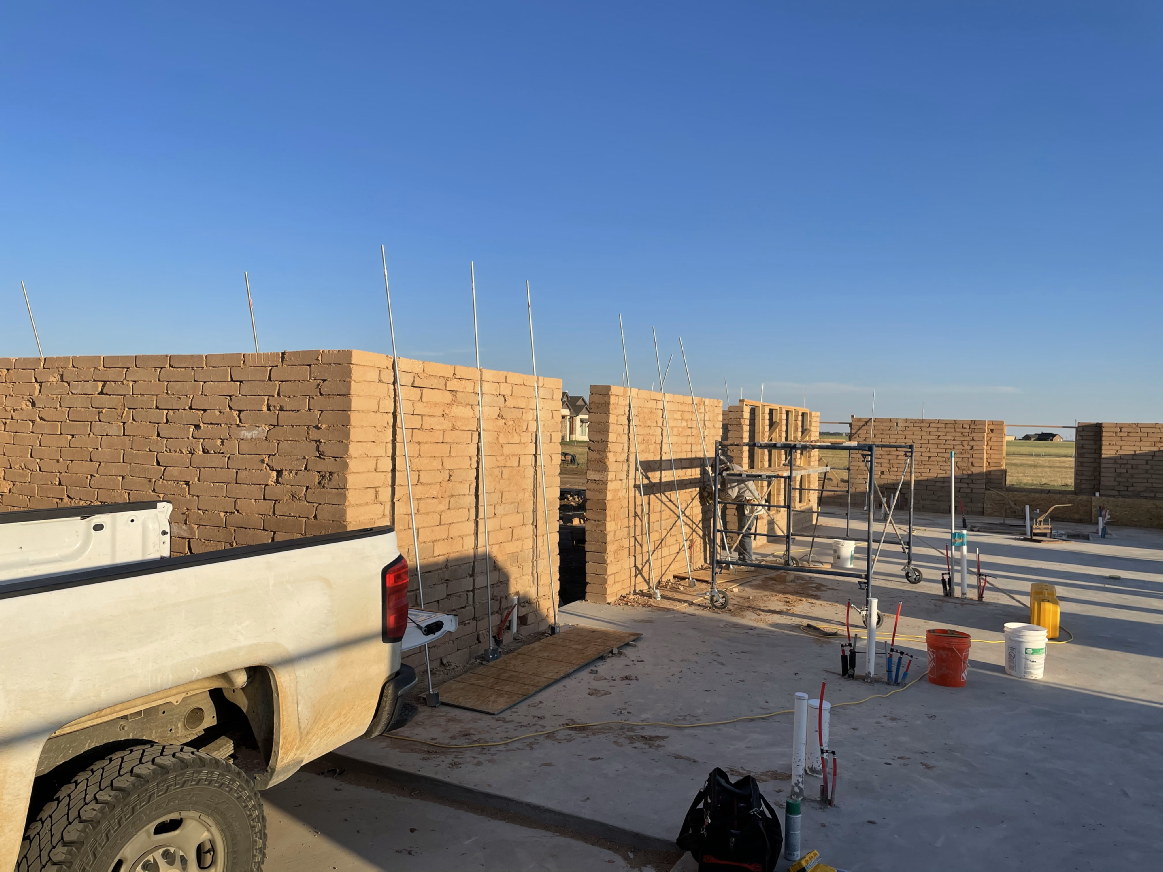

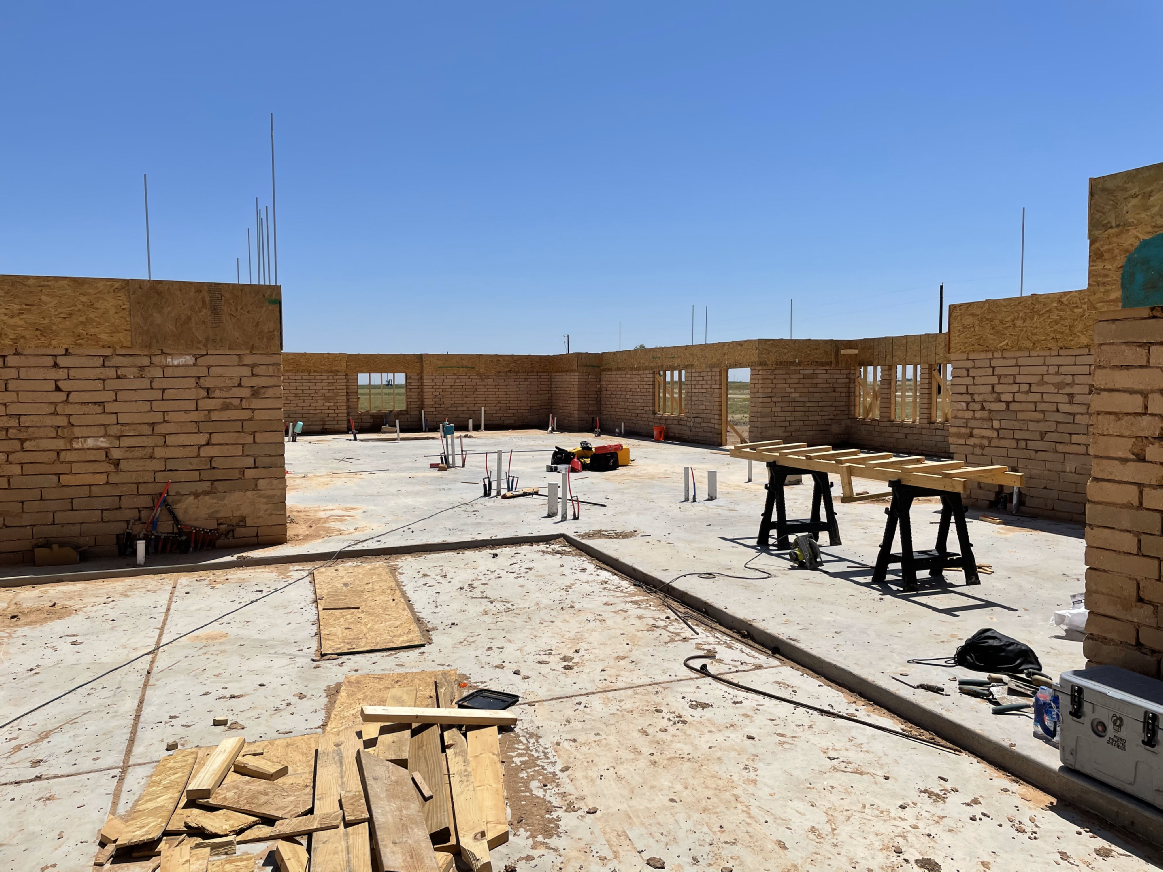

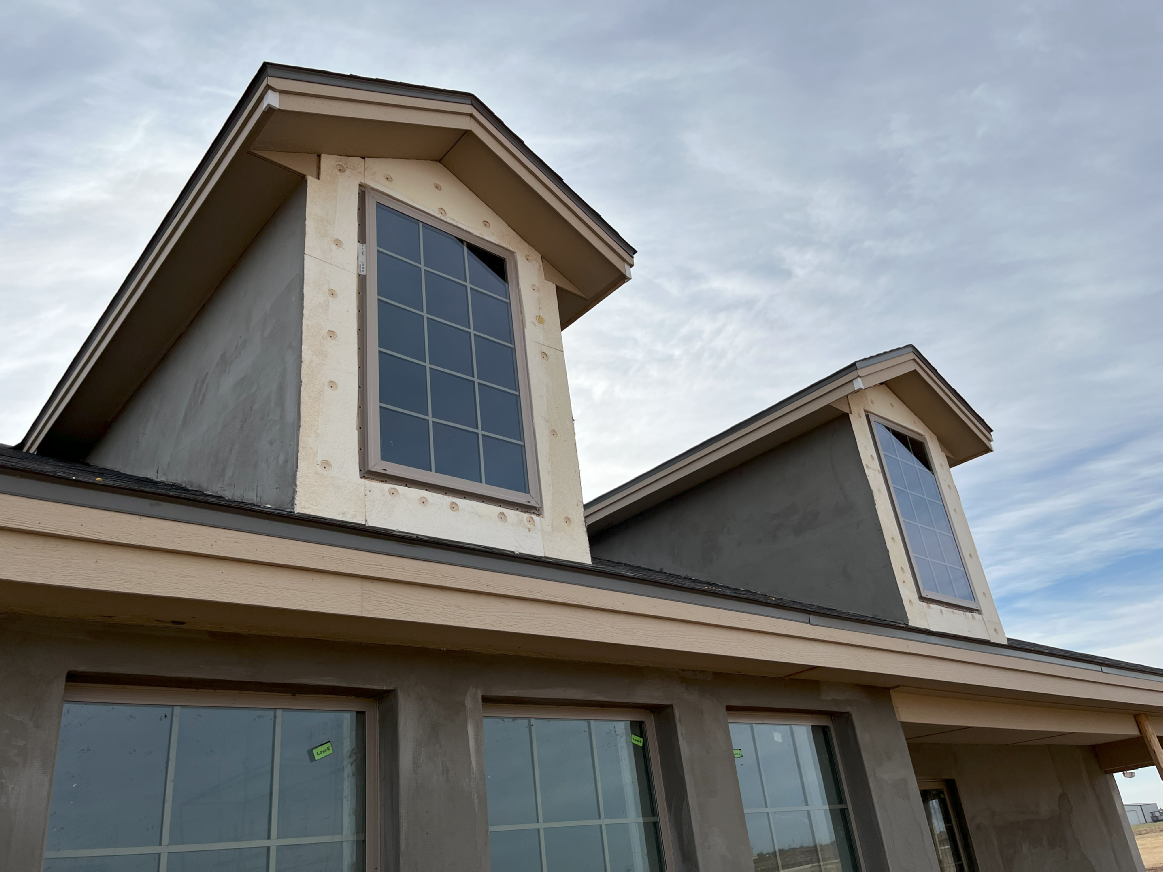

BARBER HOUSE is a hybrid CEB designed home, consisting of a 10-inch thick exterior CEB wall system with stucco veneer and 2x4 lite frame interior partition walls. The interior ceiling height was set at 9 foot, and the attic was not ventilated. Overhangs were set at 12 inches allowing for a 15% summer shading coefficient.


CURRENTLY BEING STUDIED

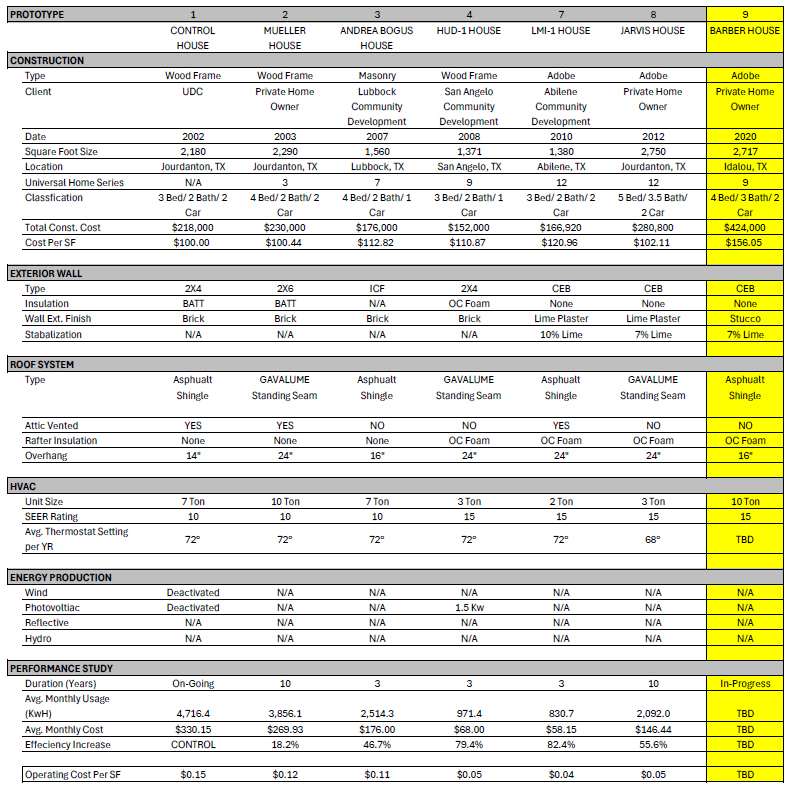

PROTOTYPE COMPARISON CHART

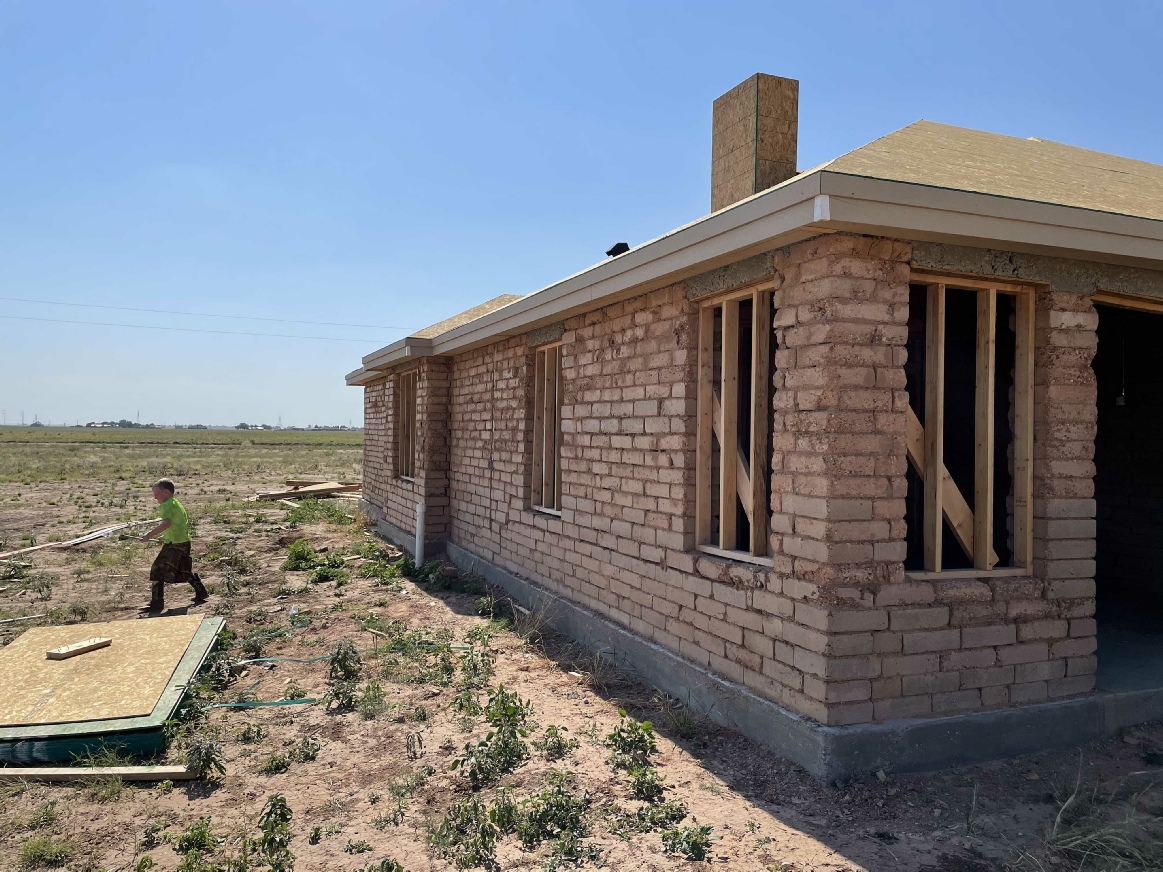

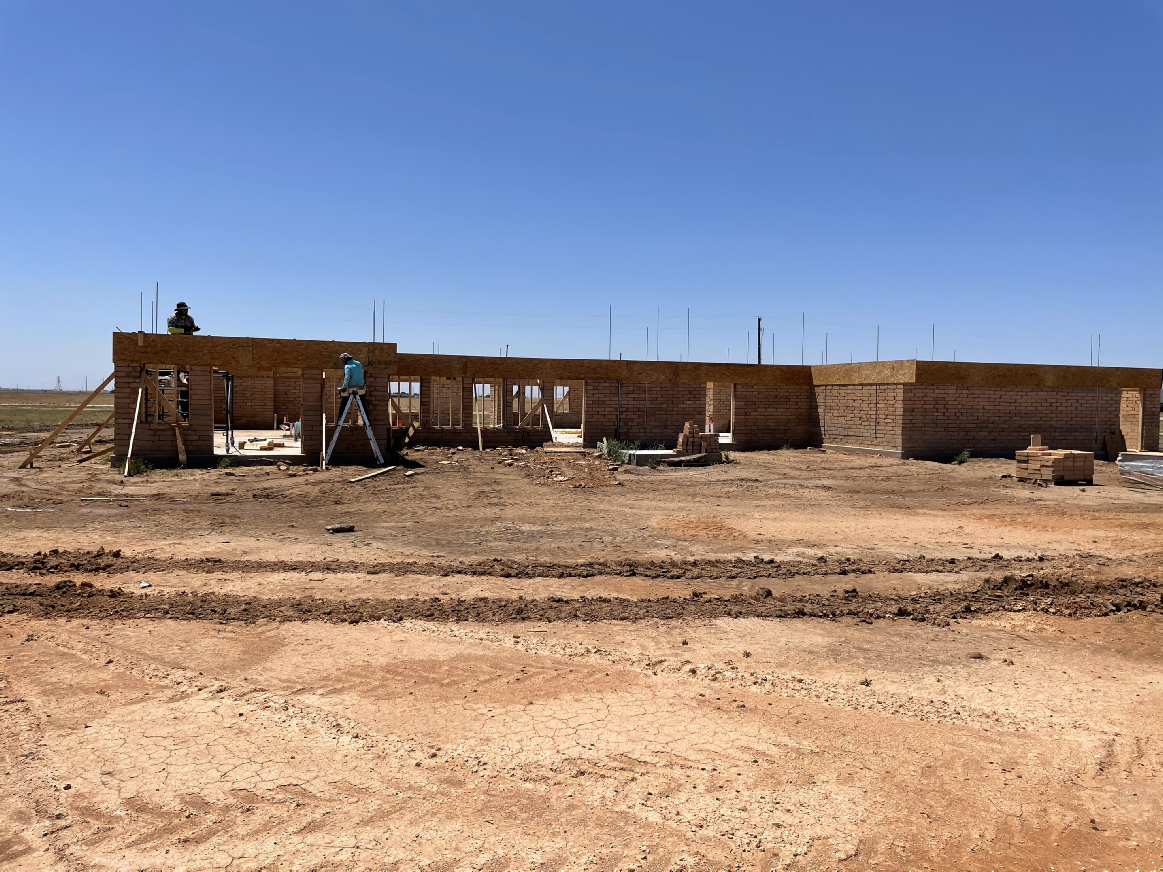

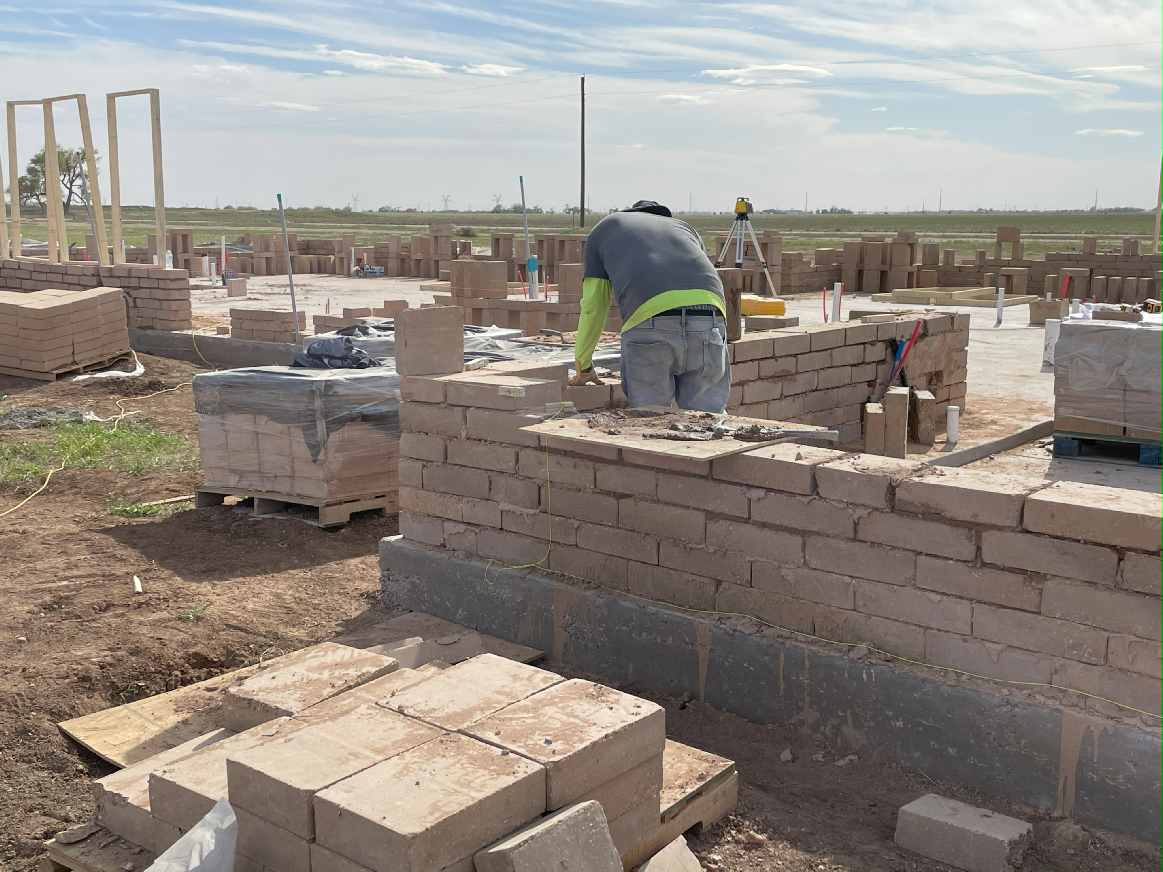

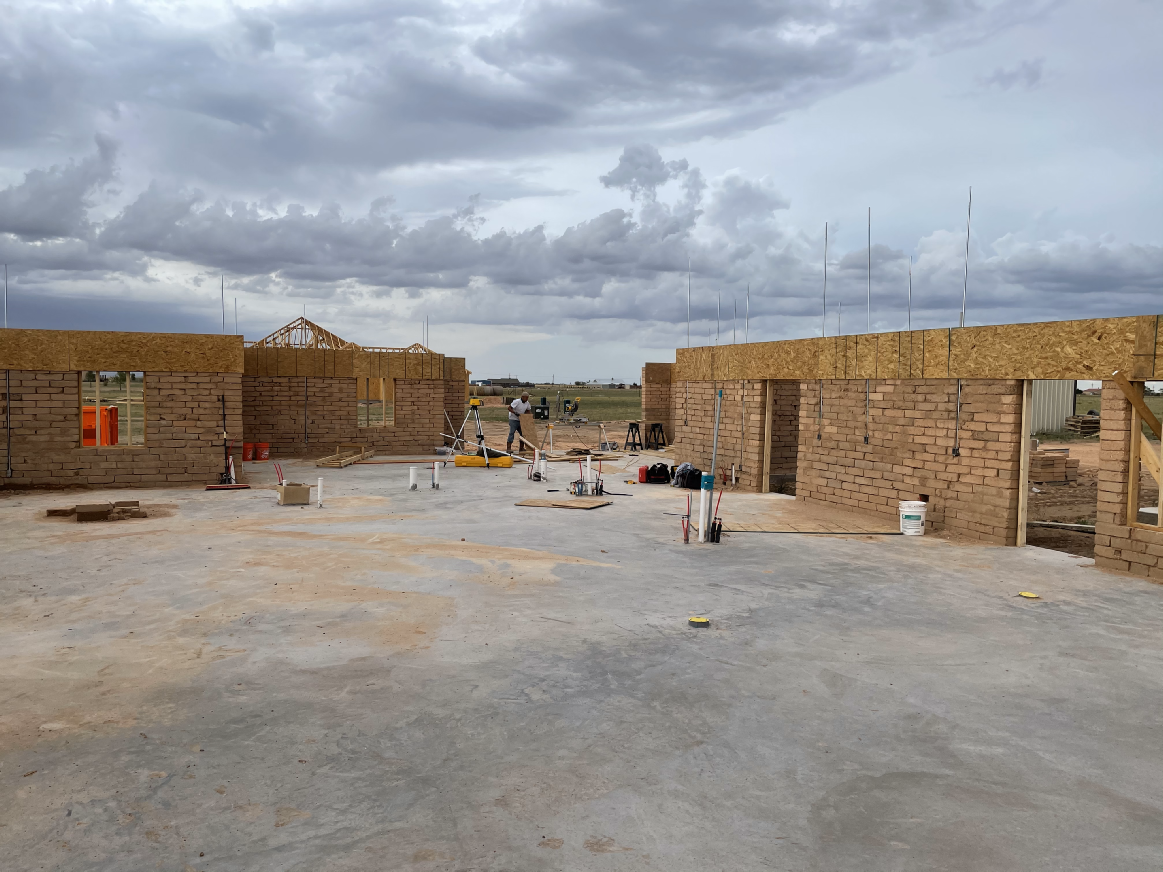

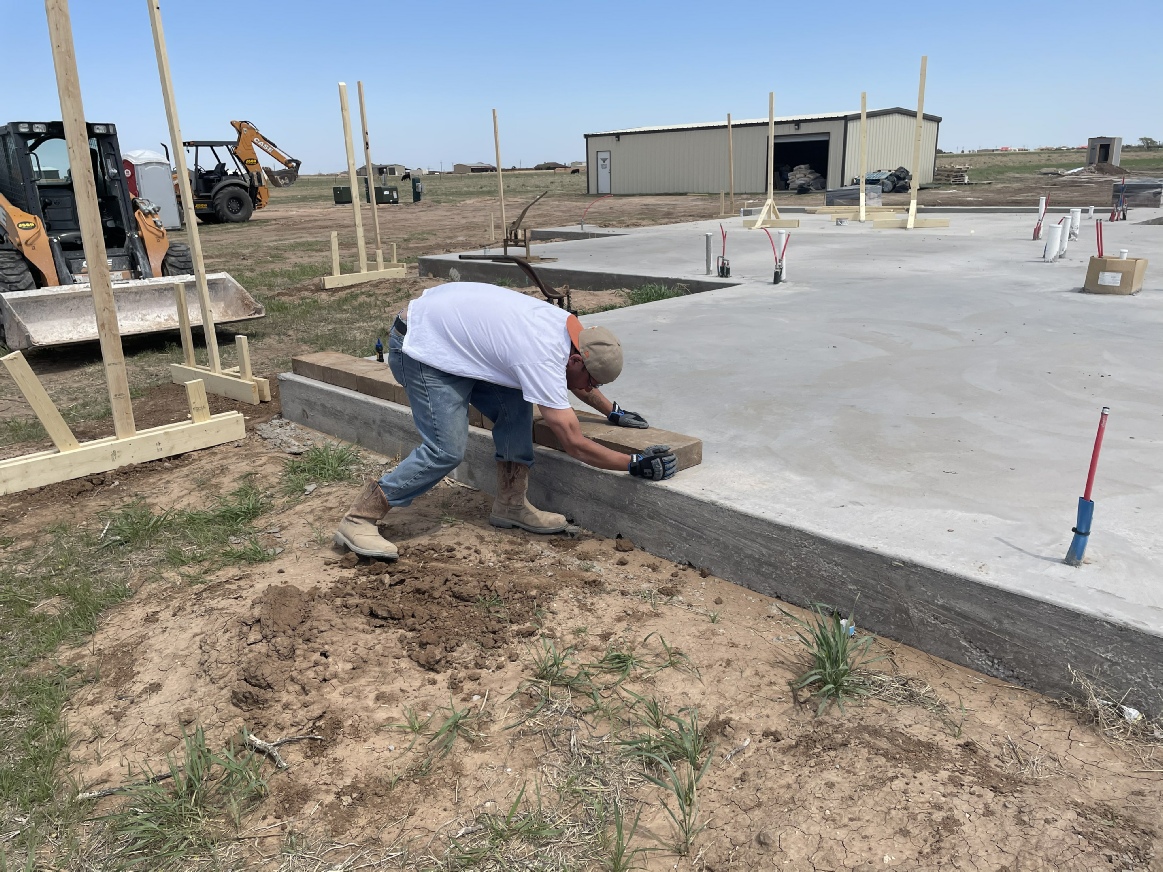

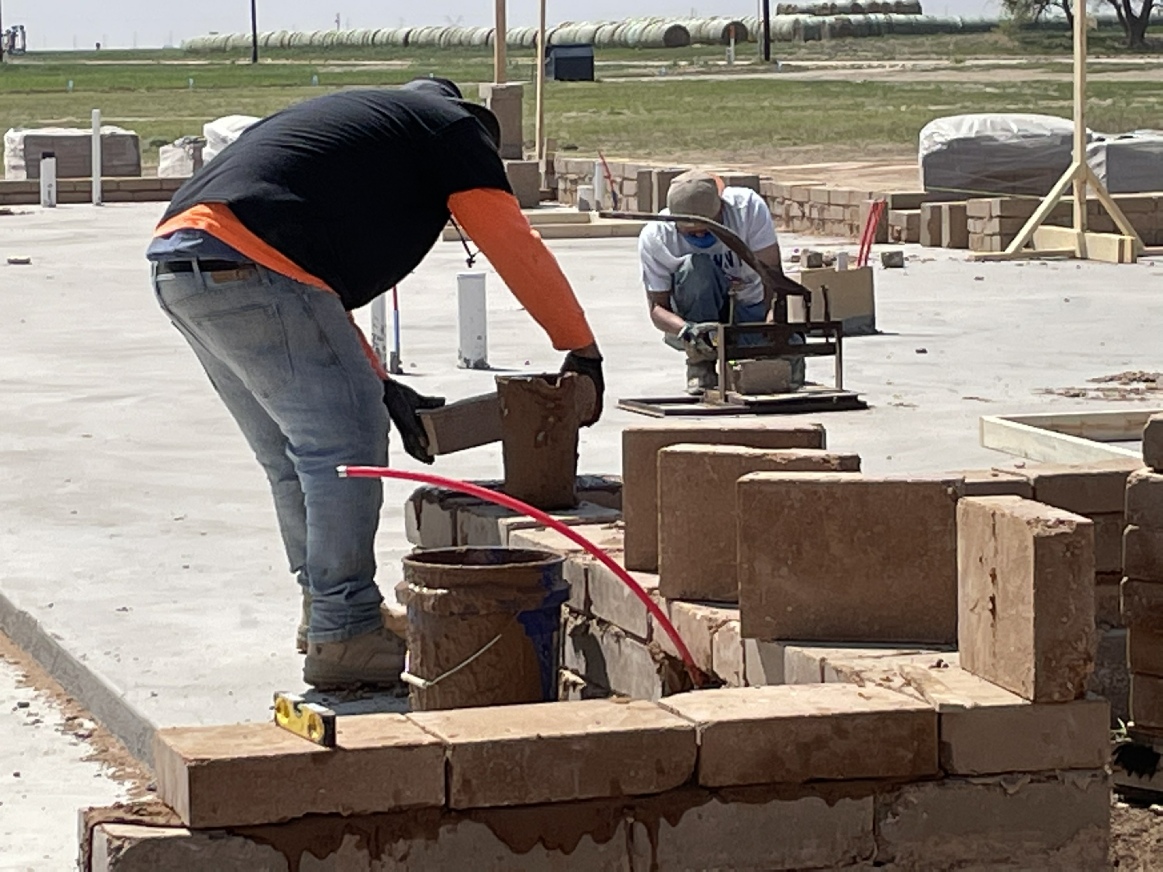

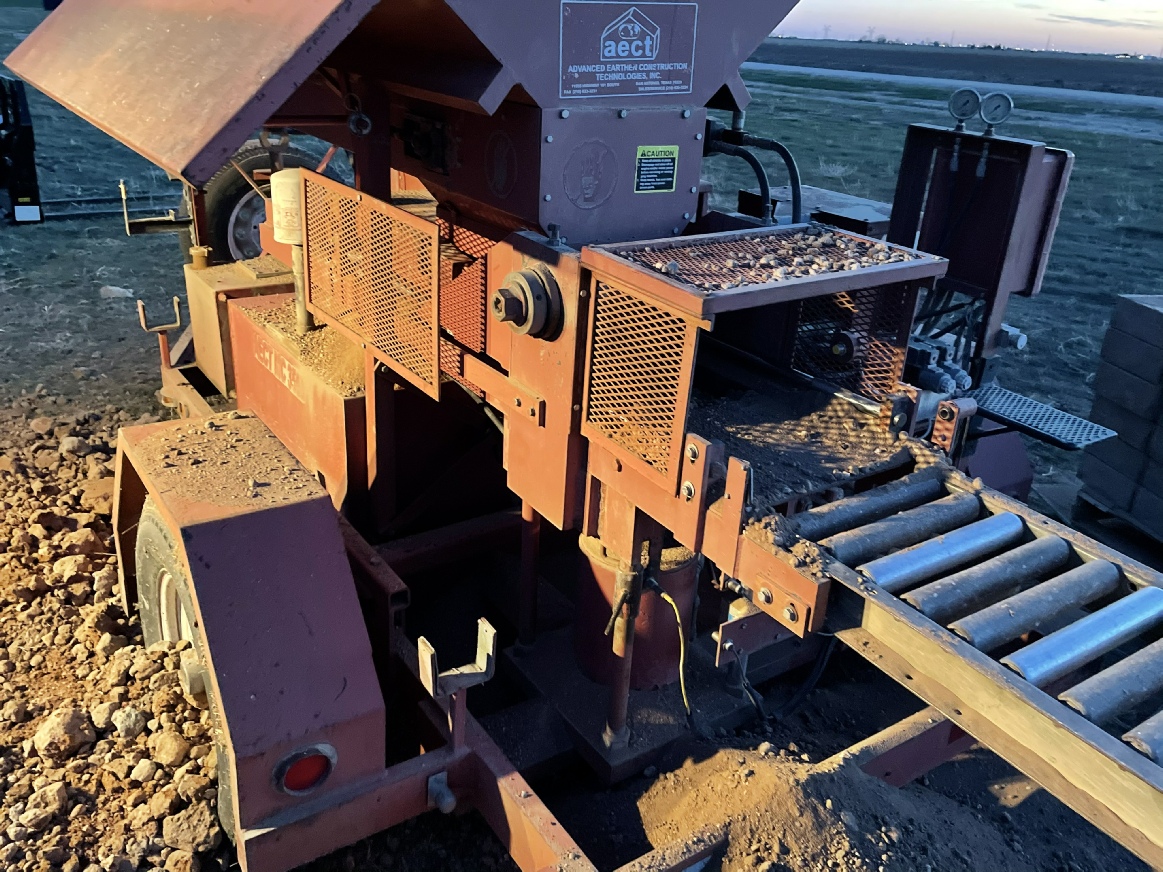

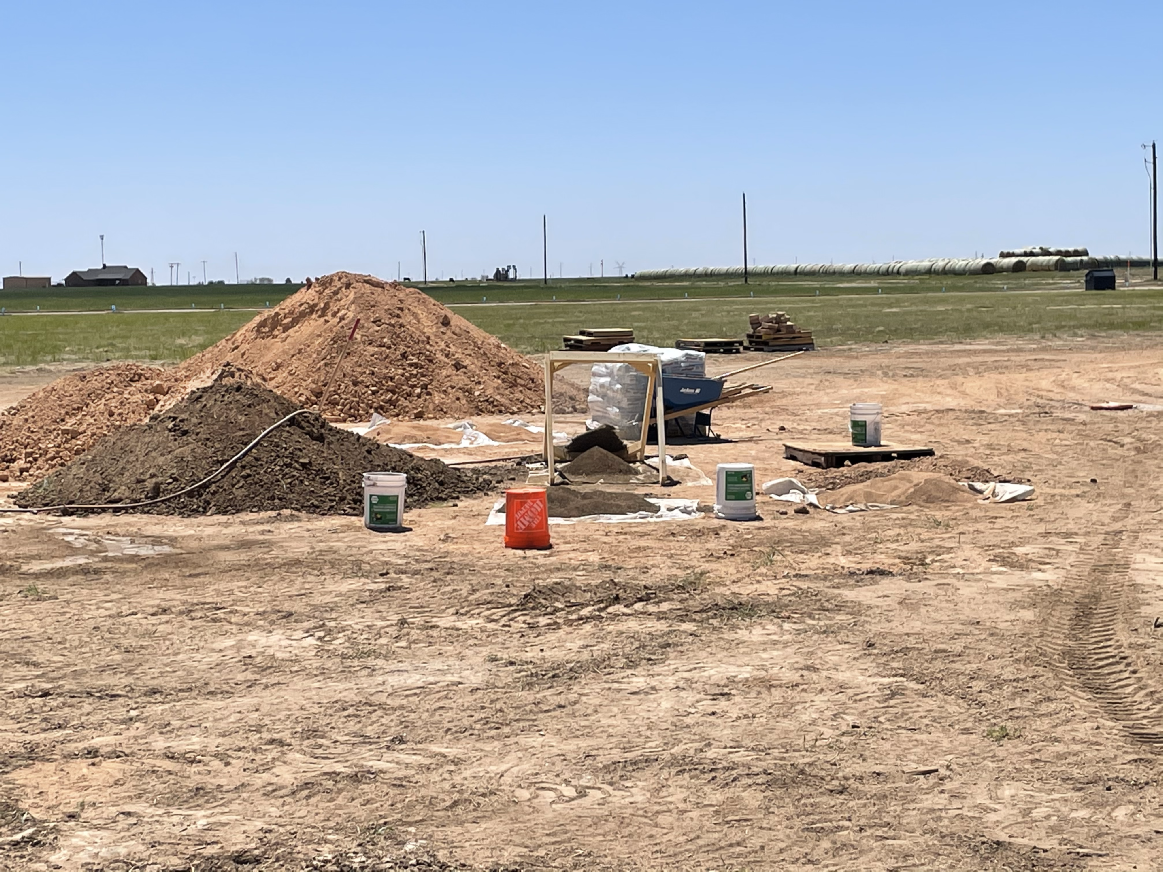

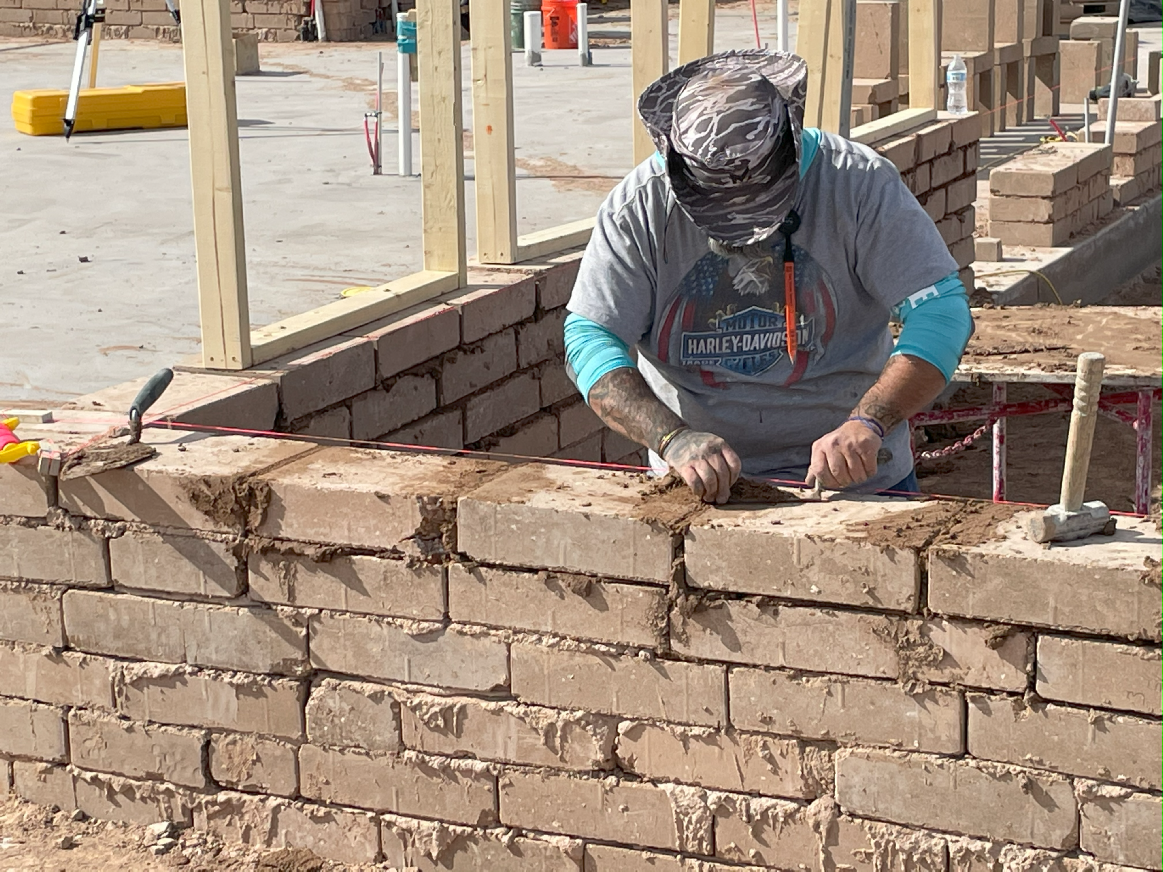

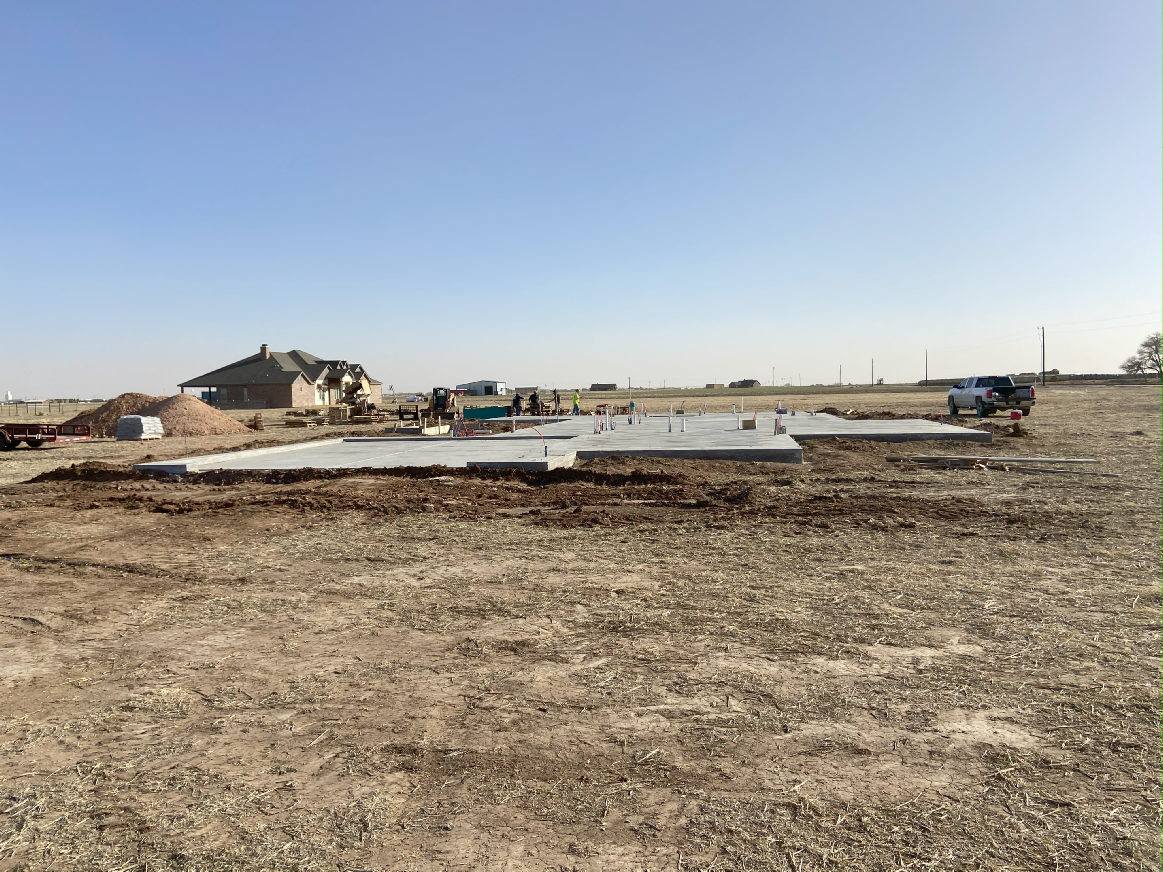

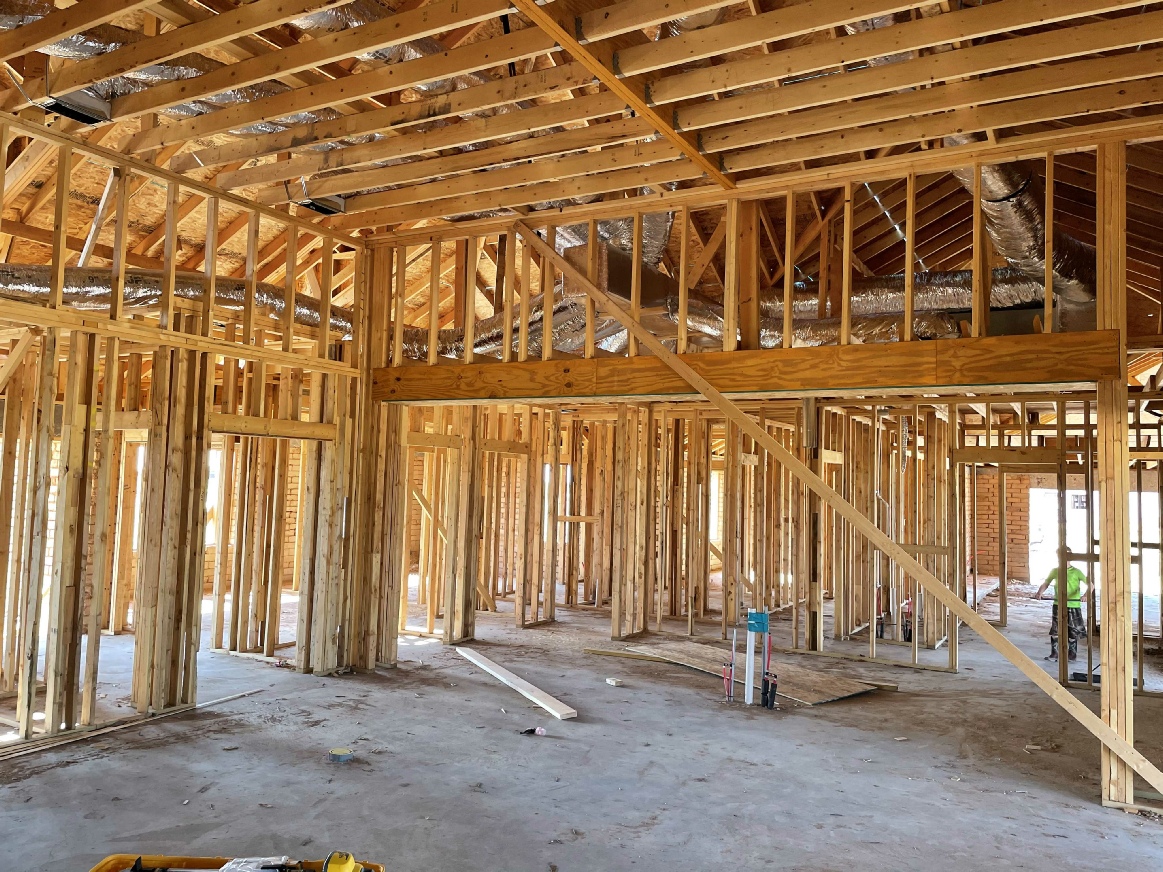

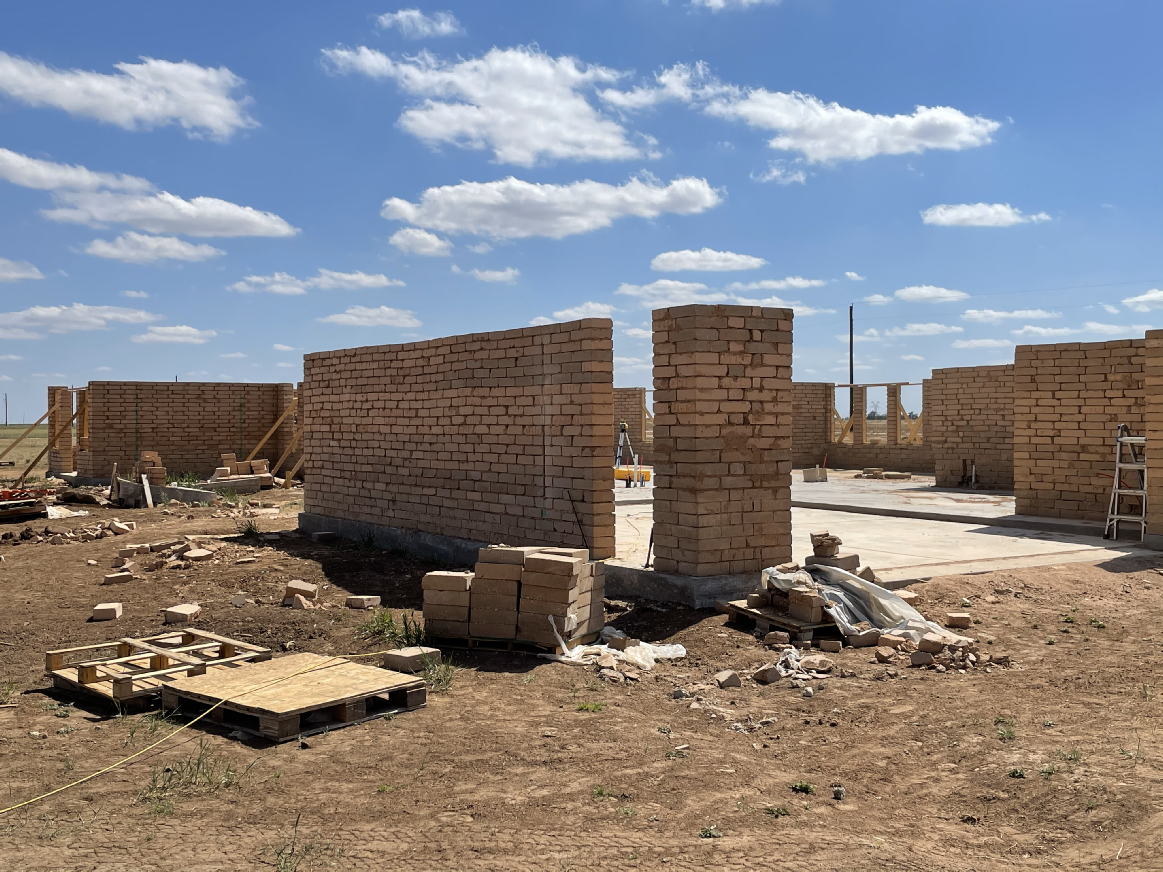

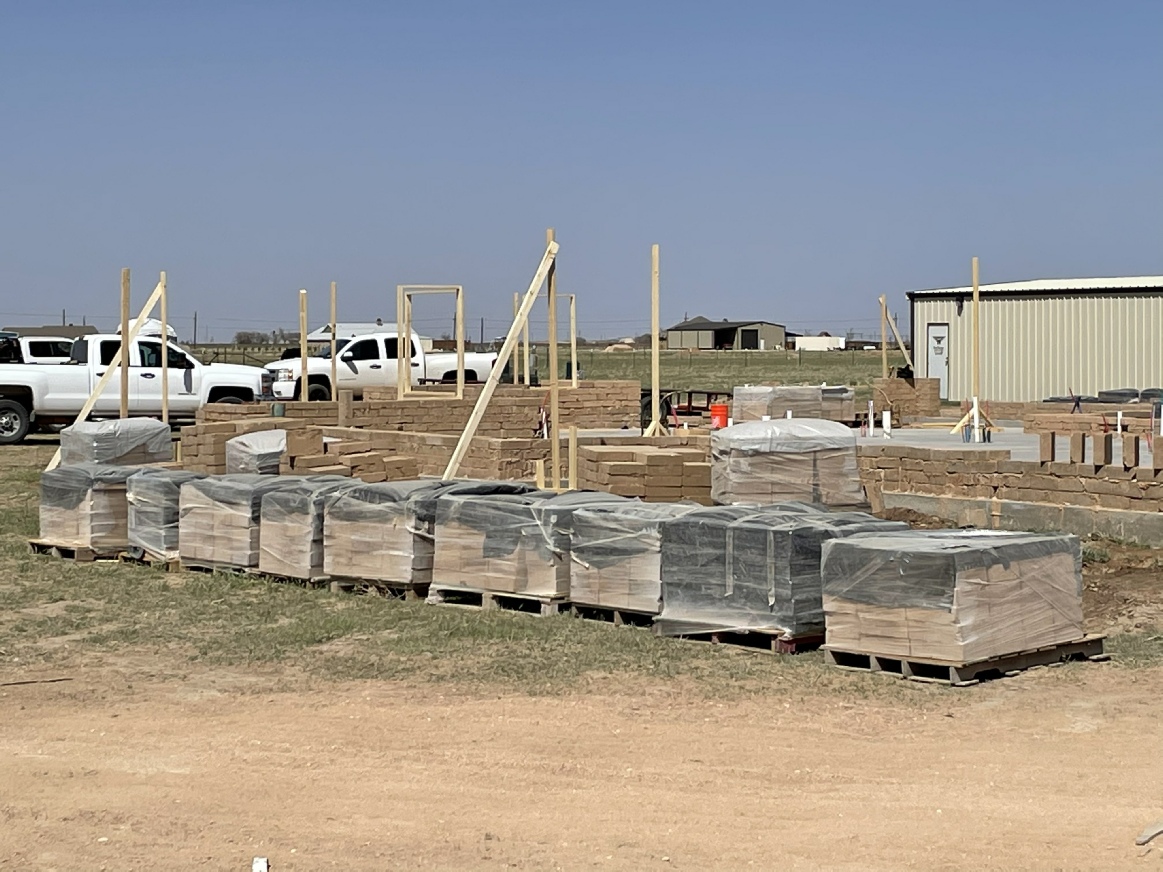

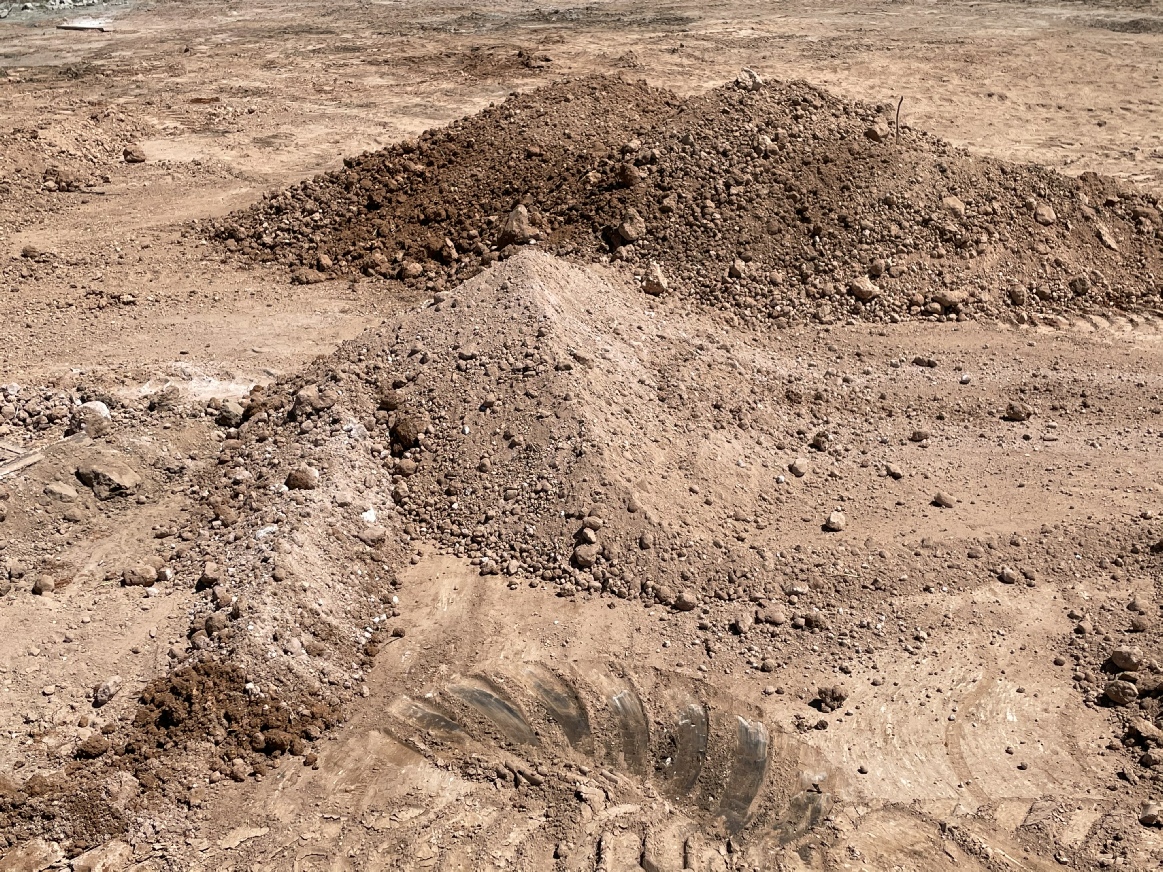

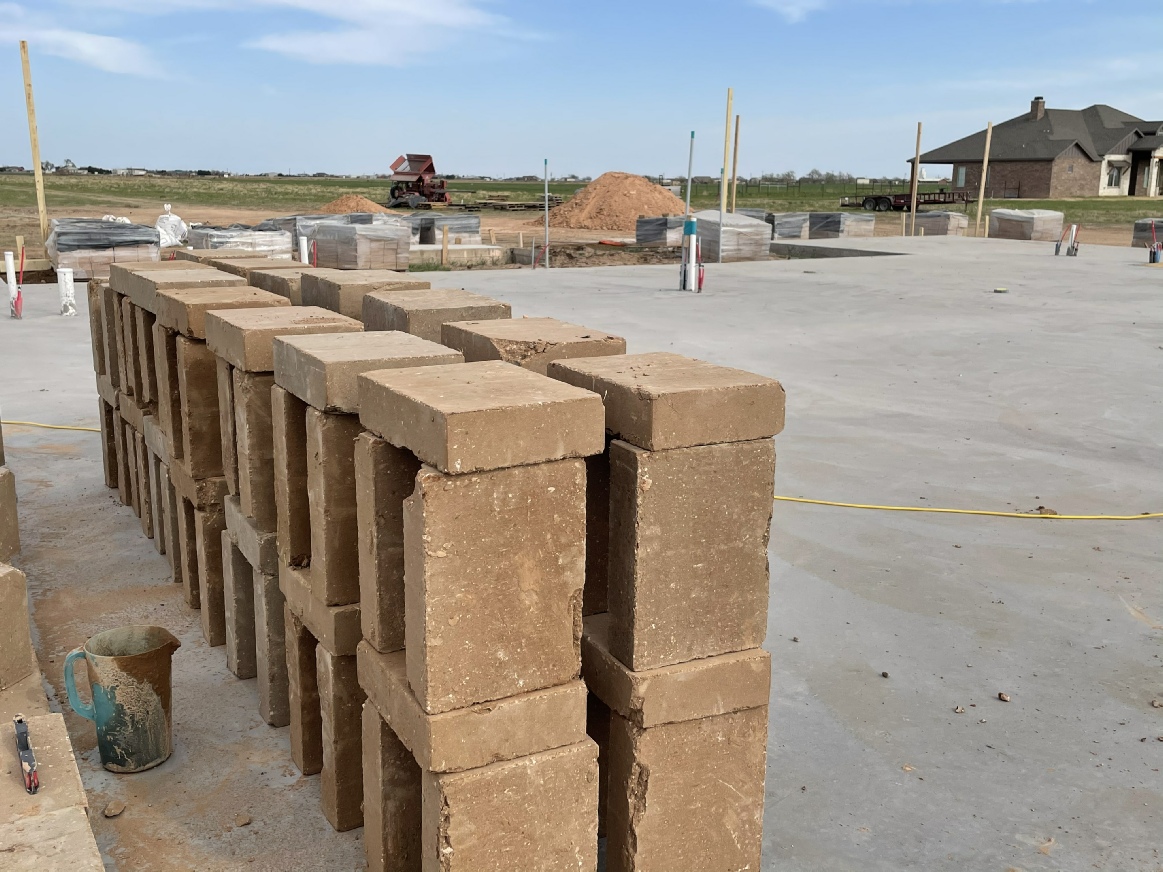

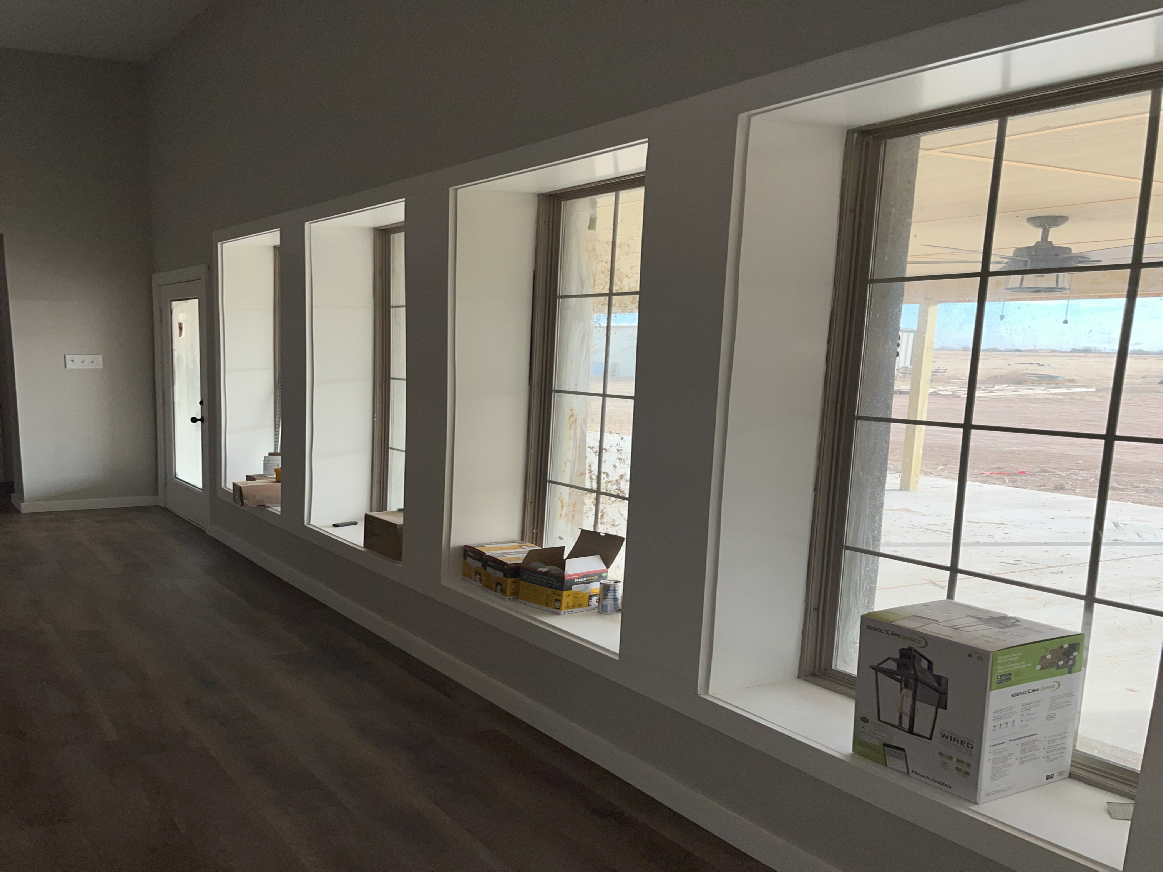

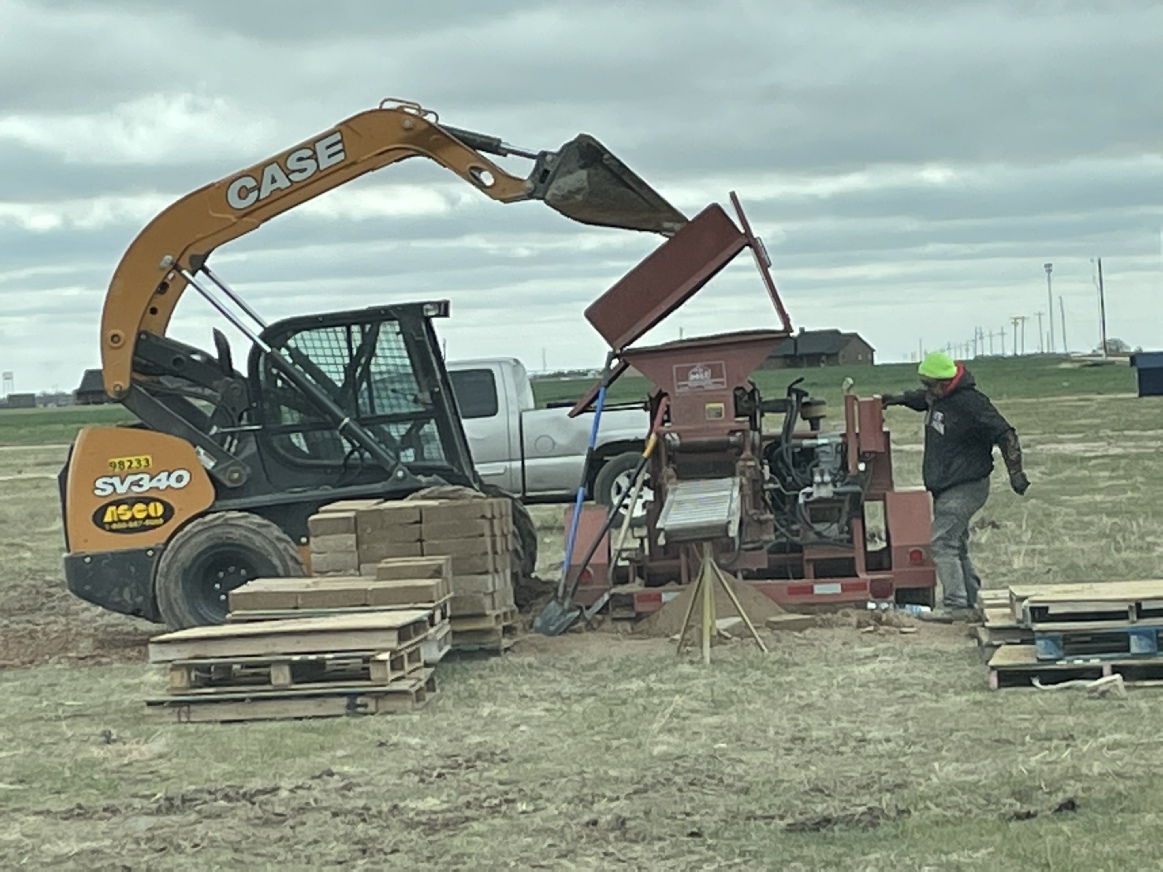

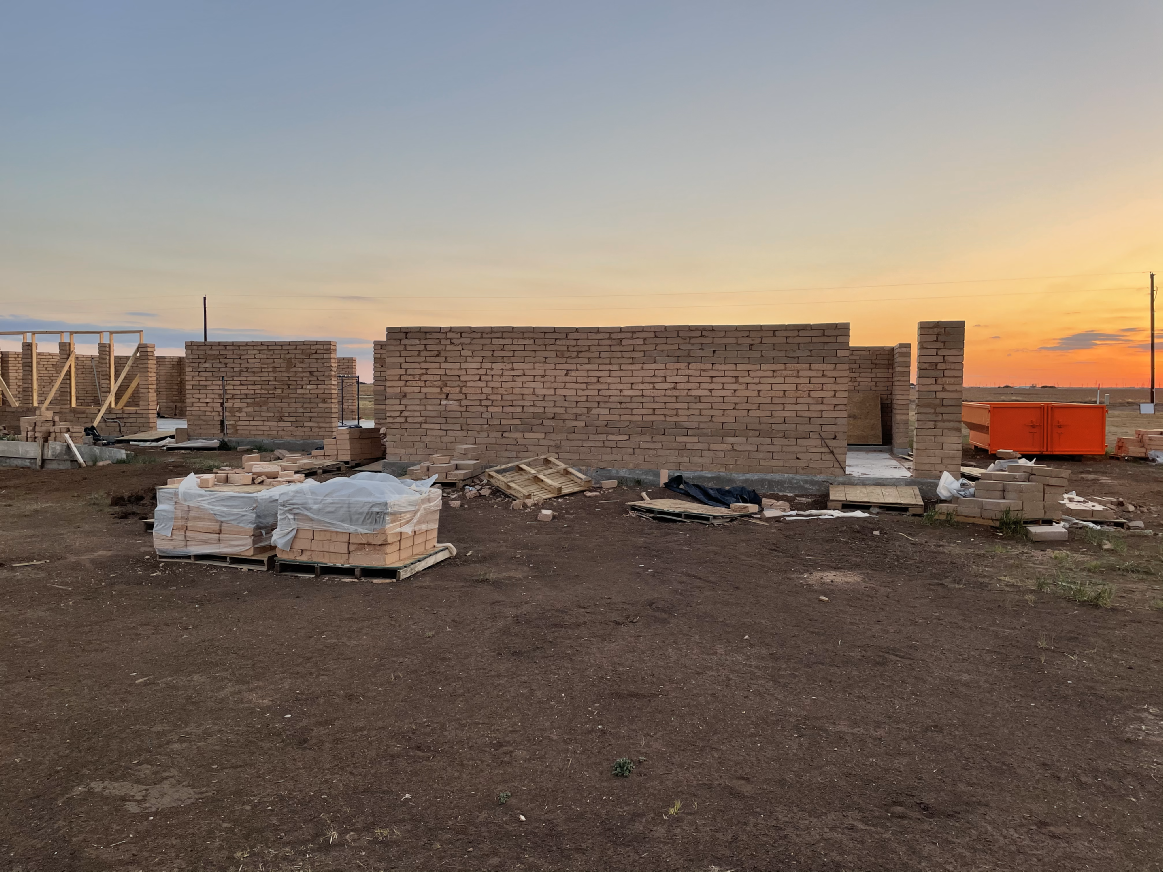

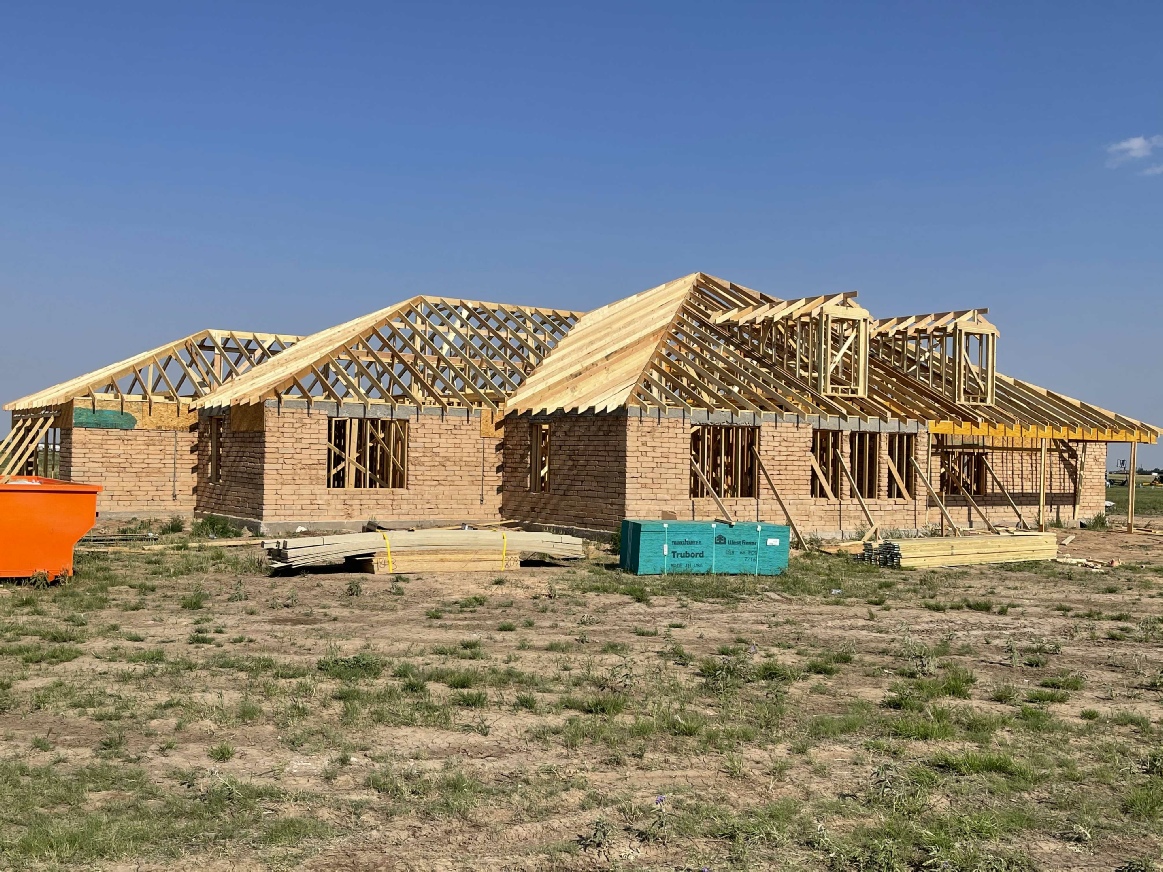

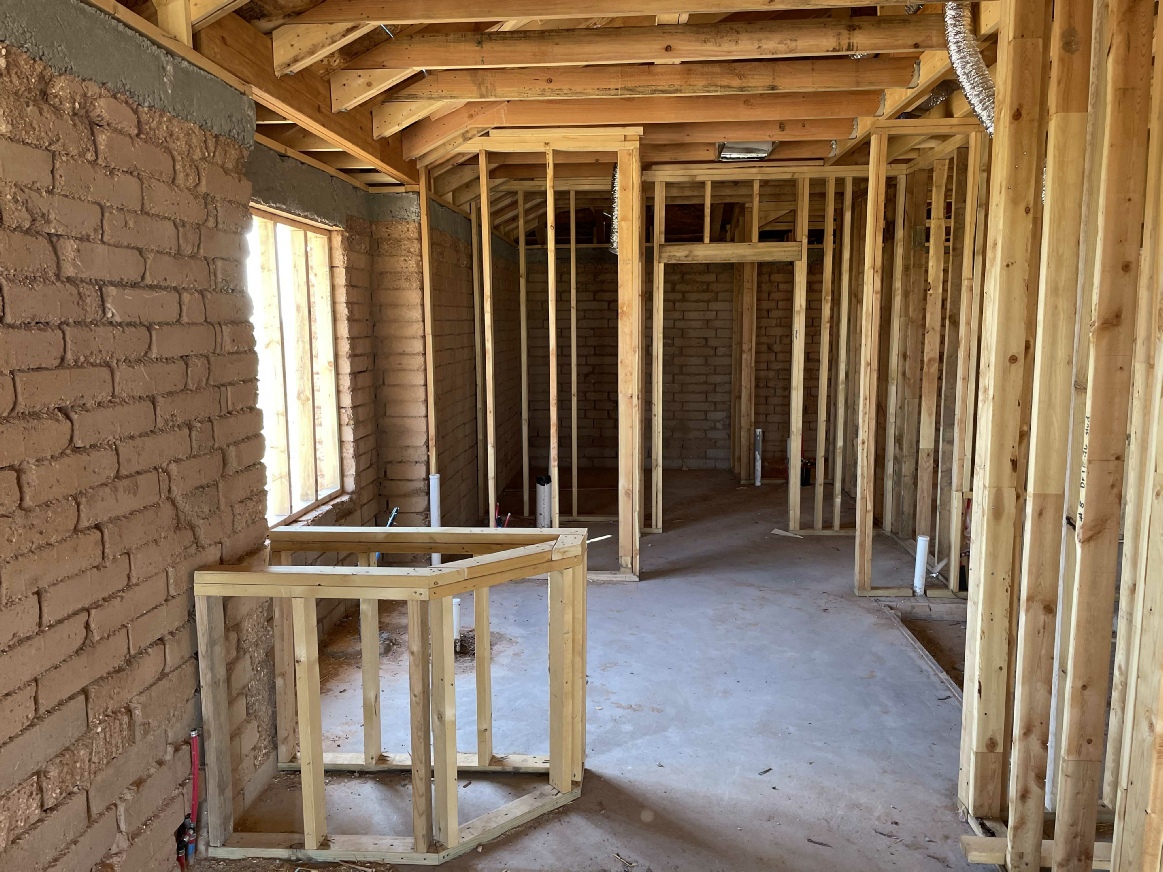

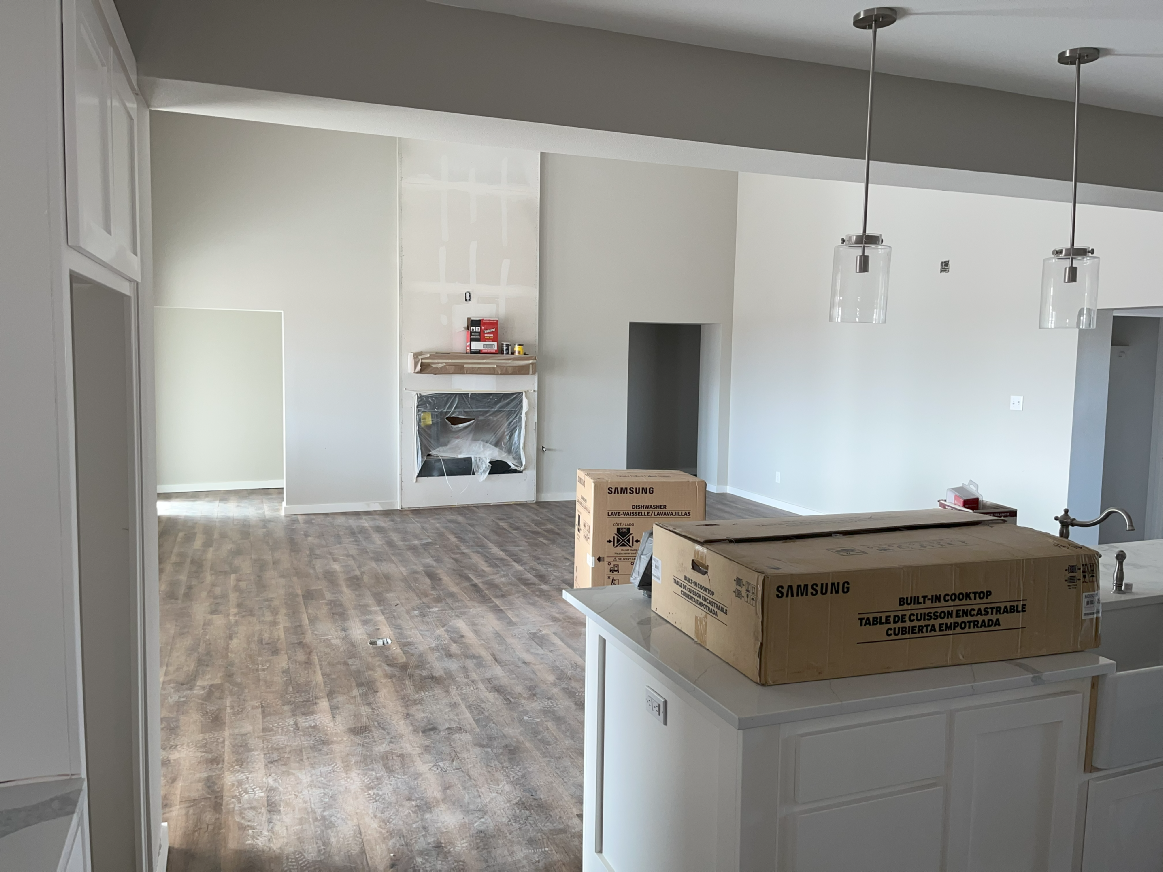

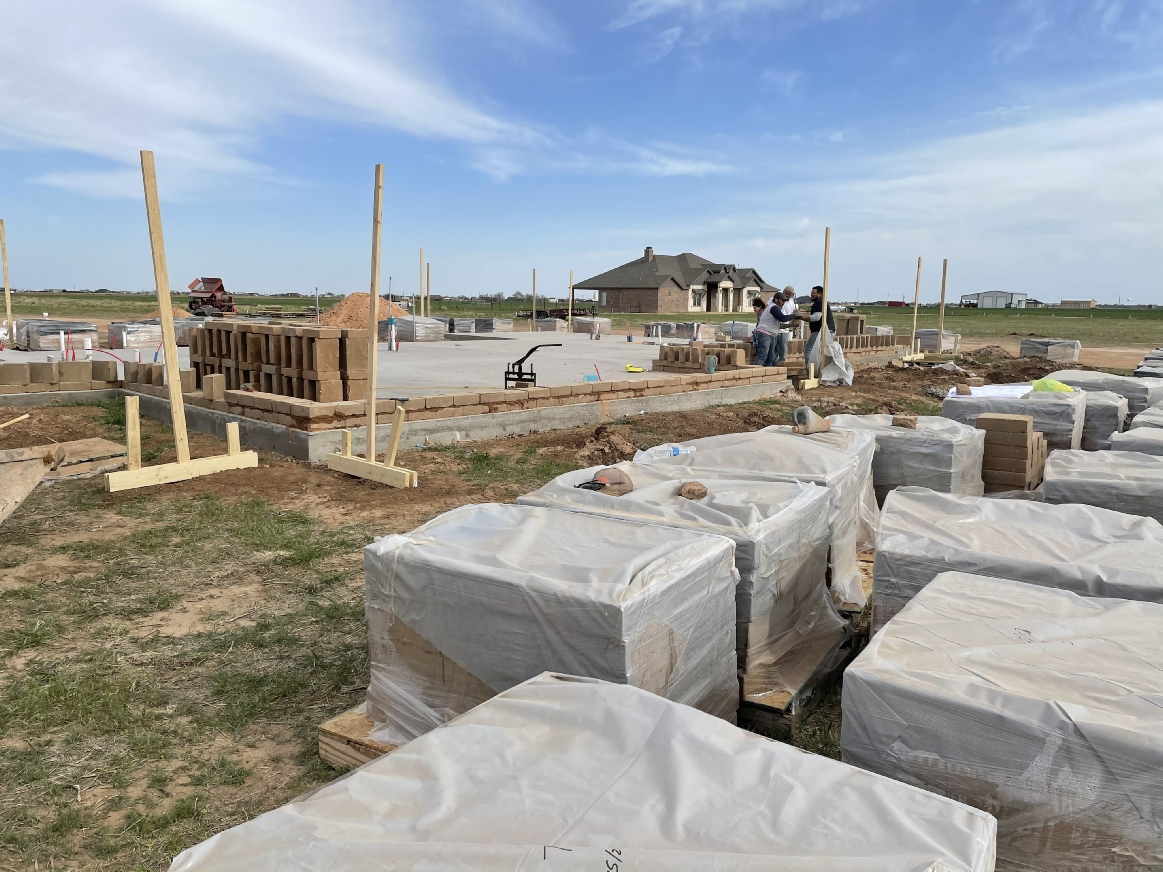

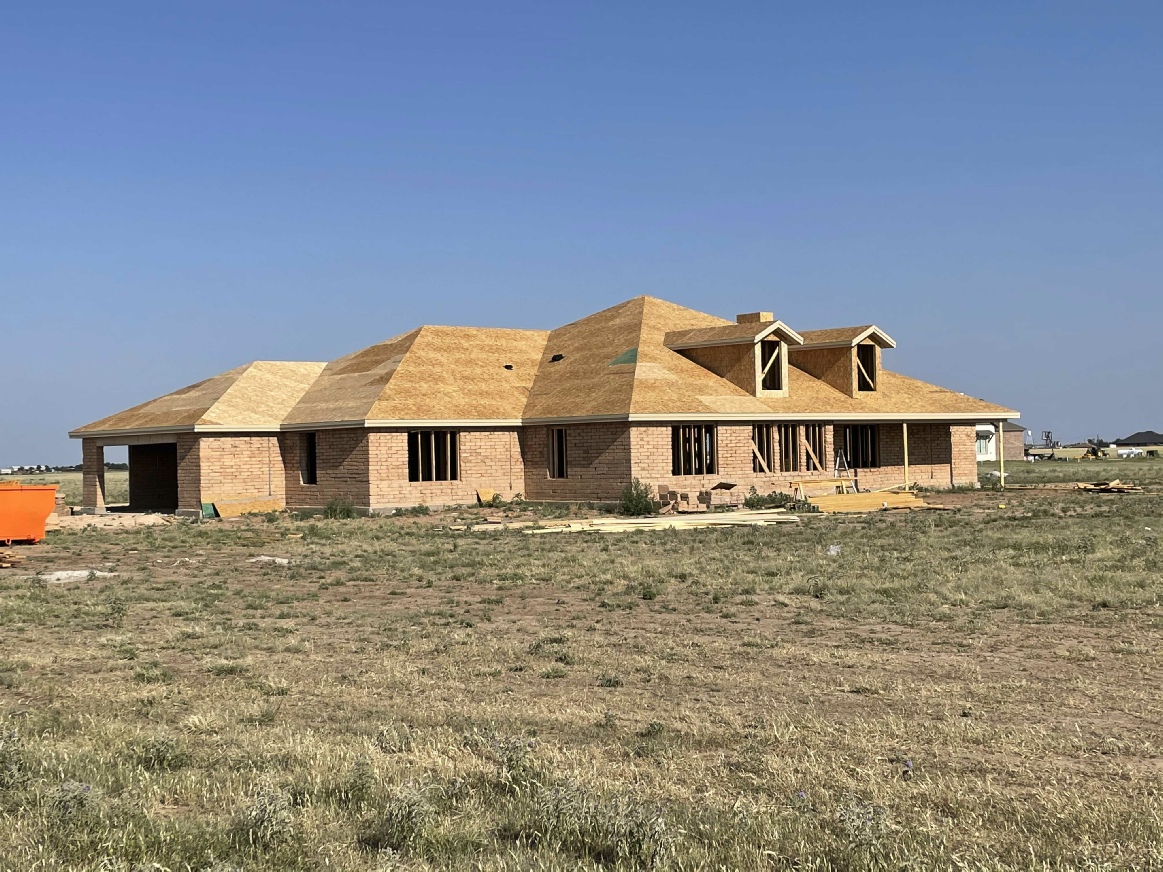

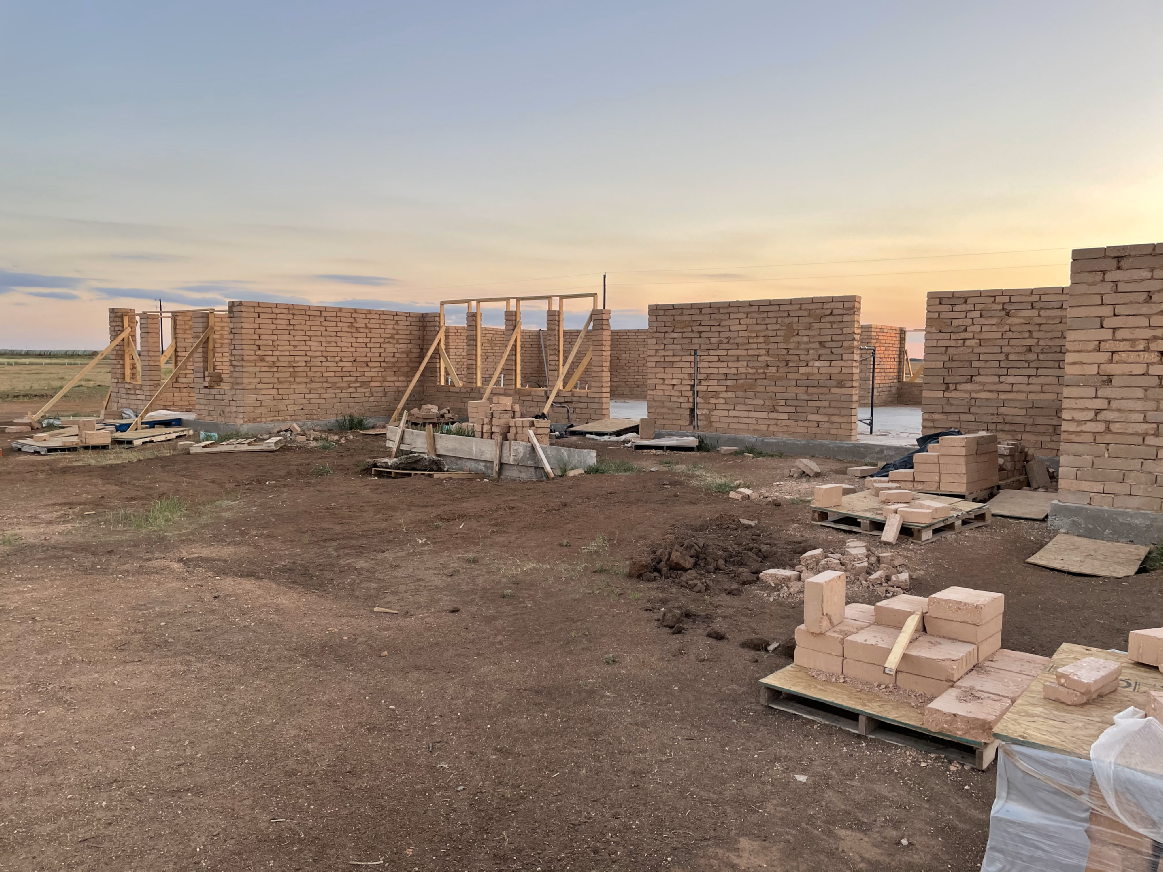

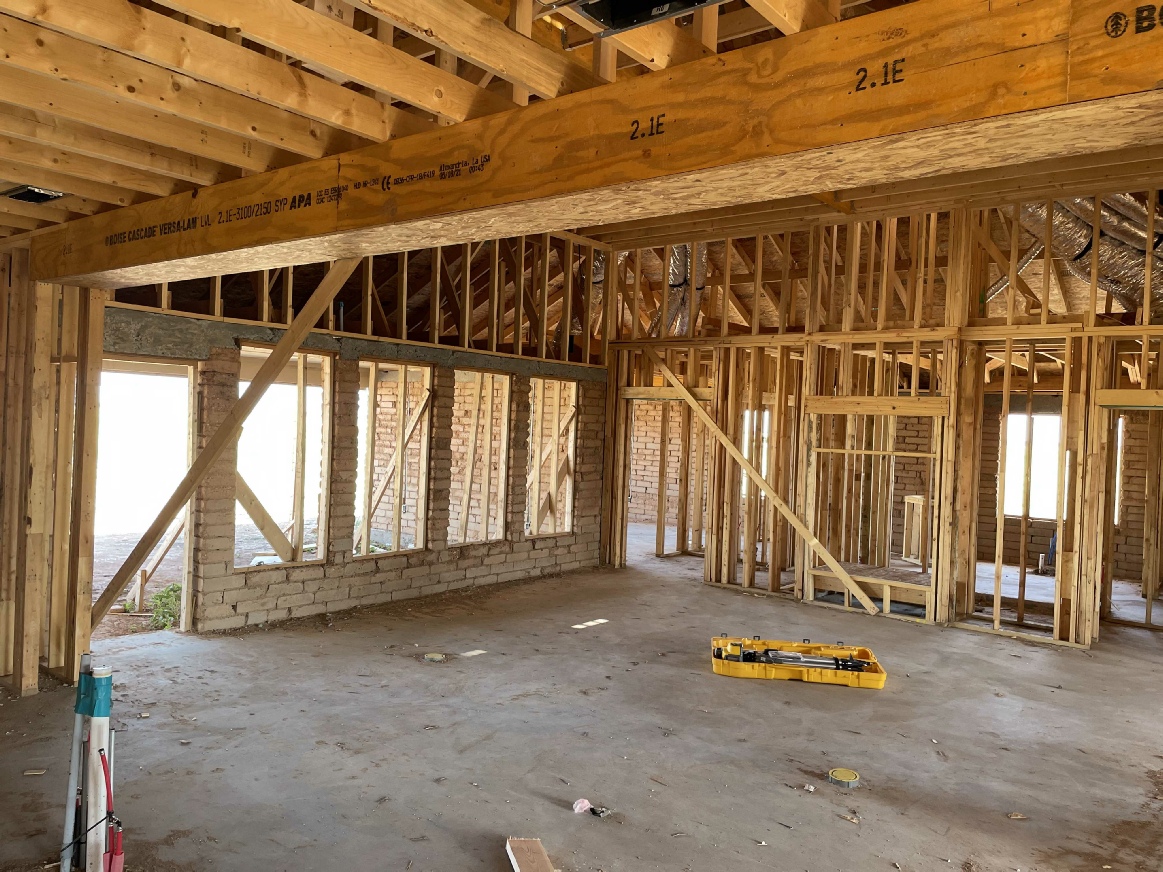

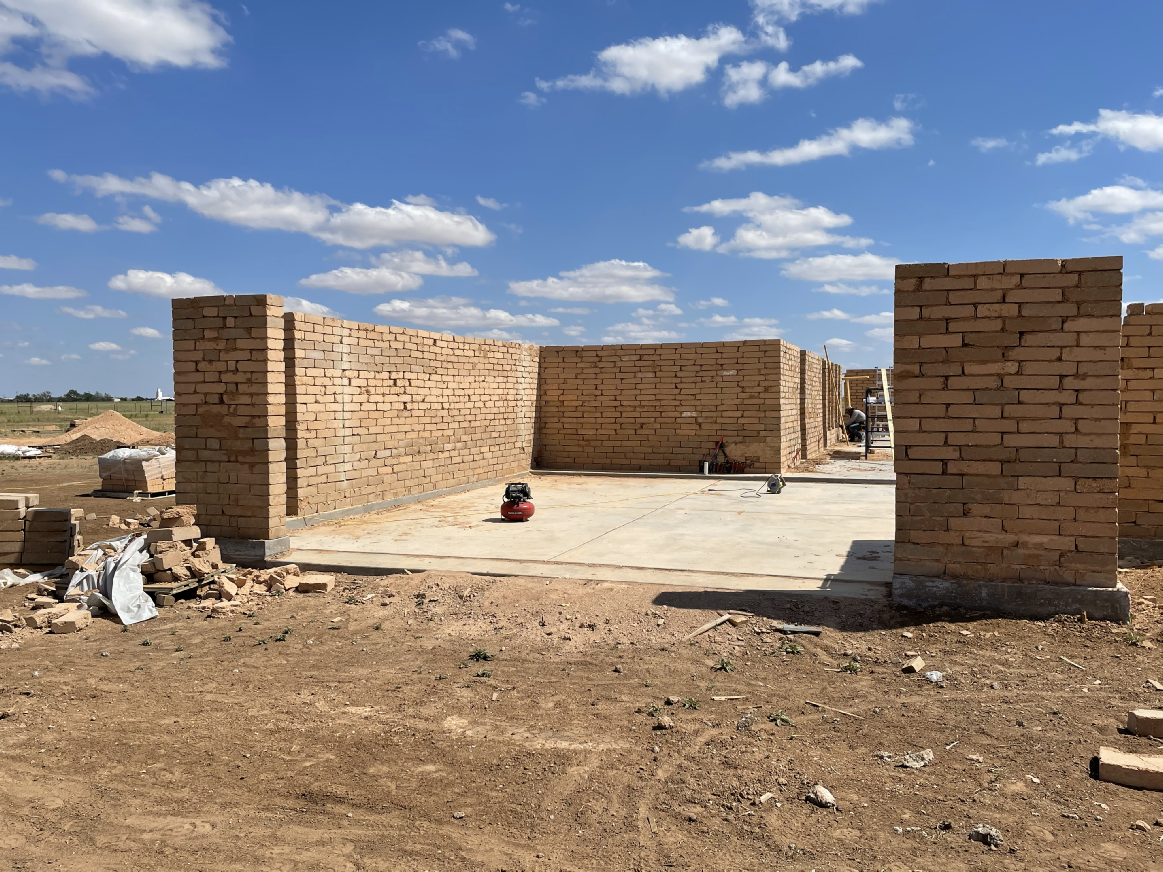

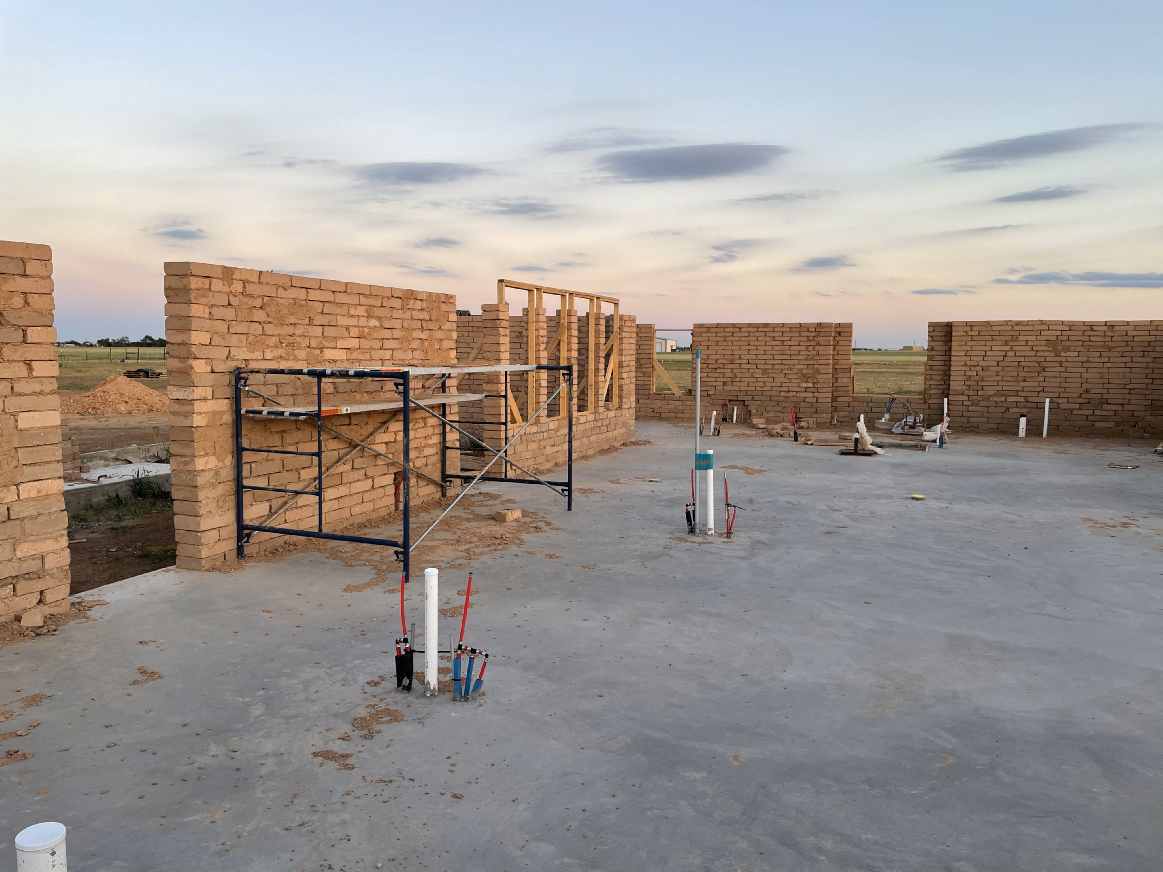

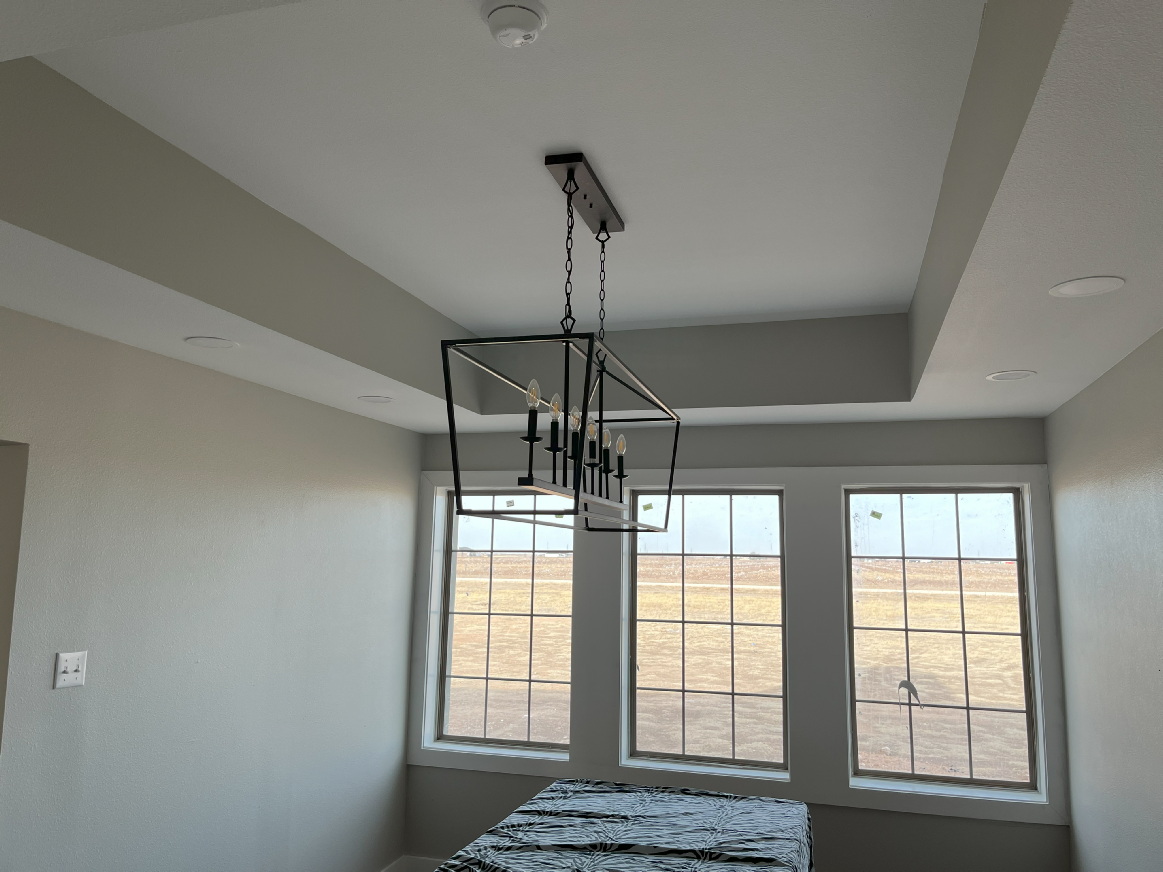

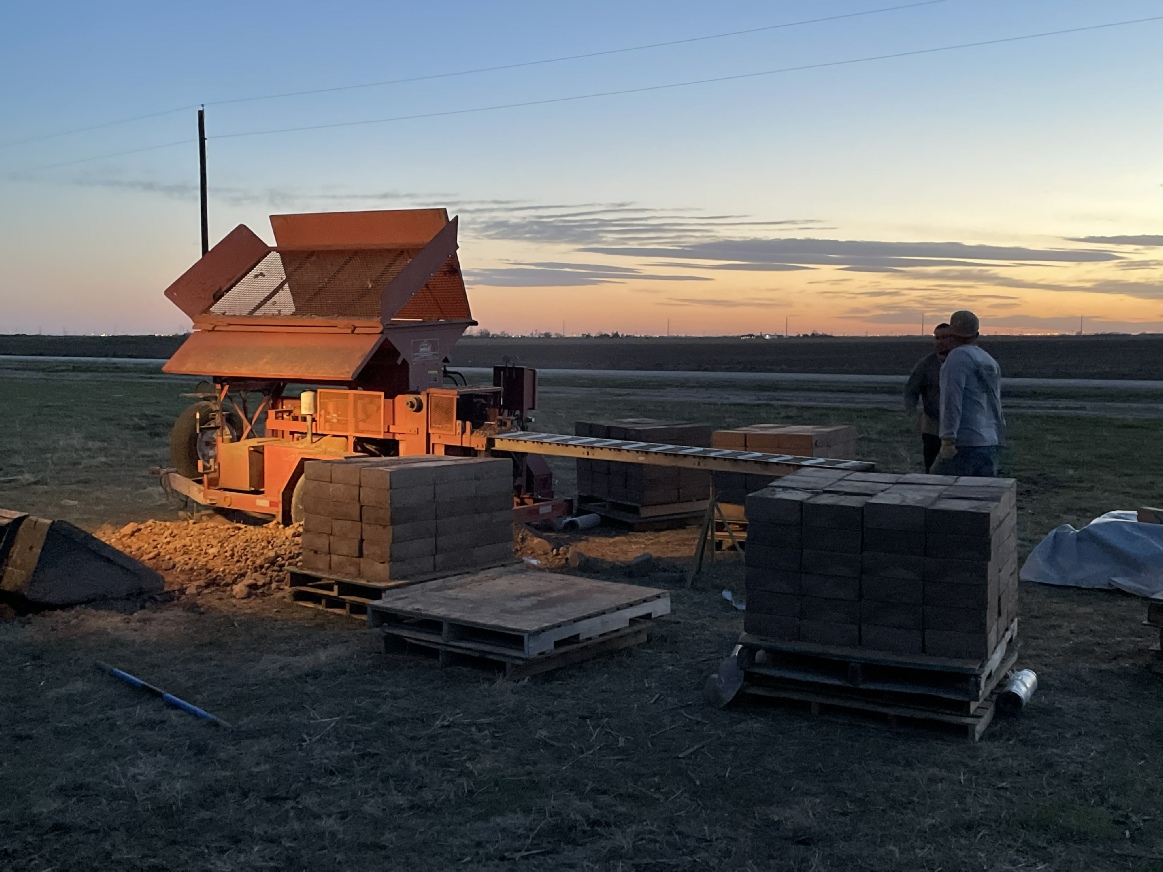

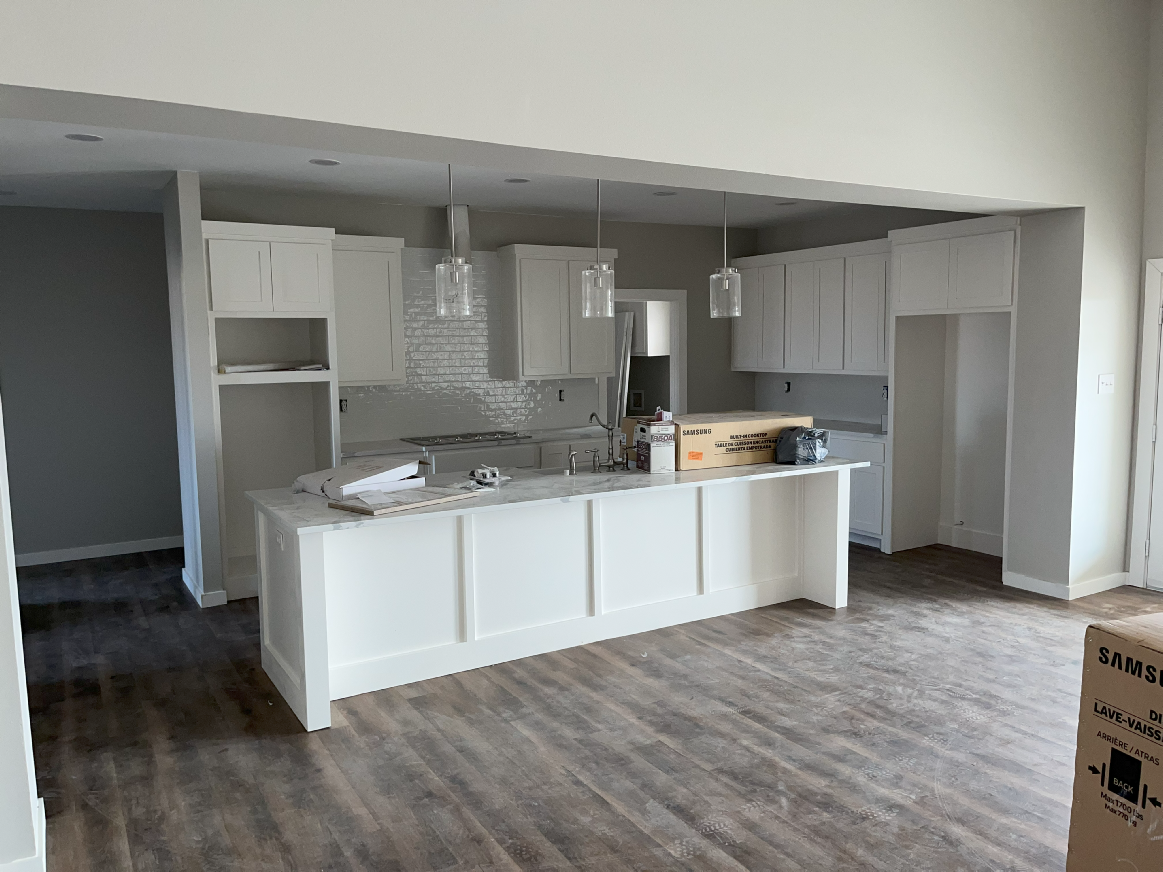

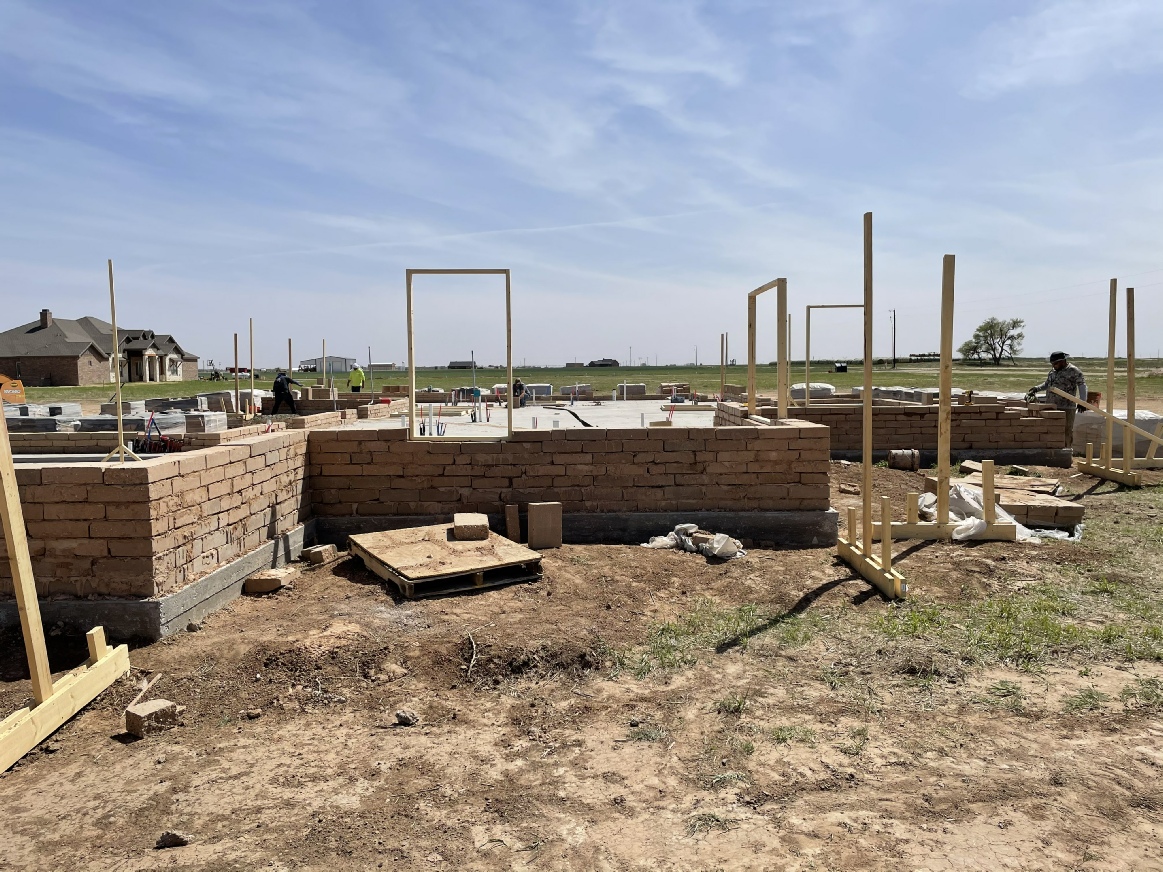

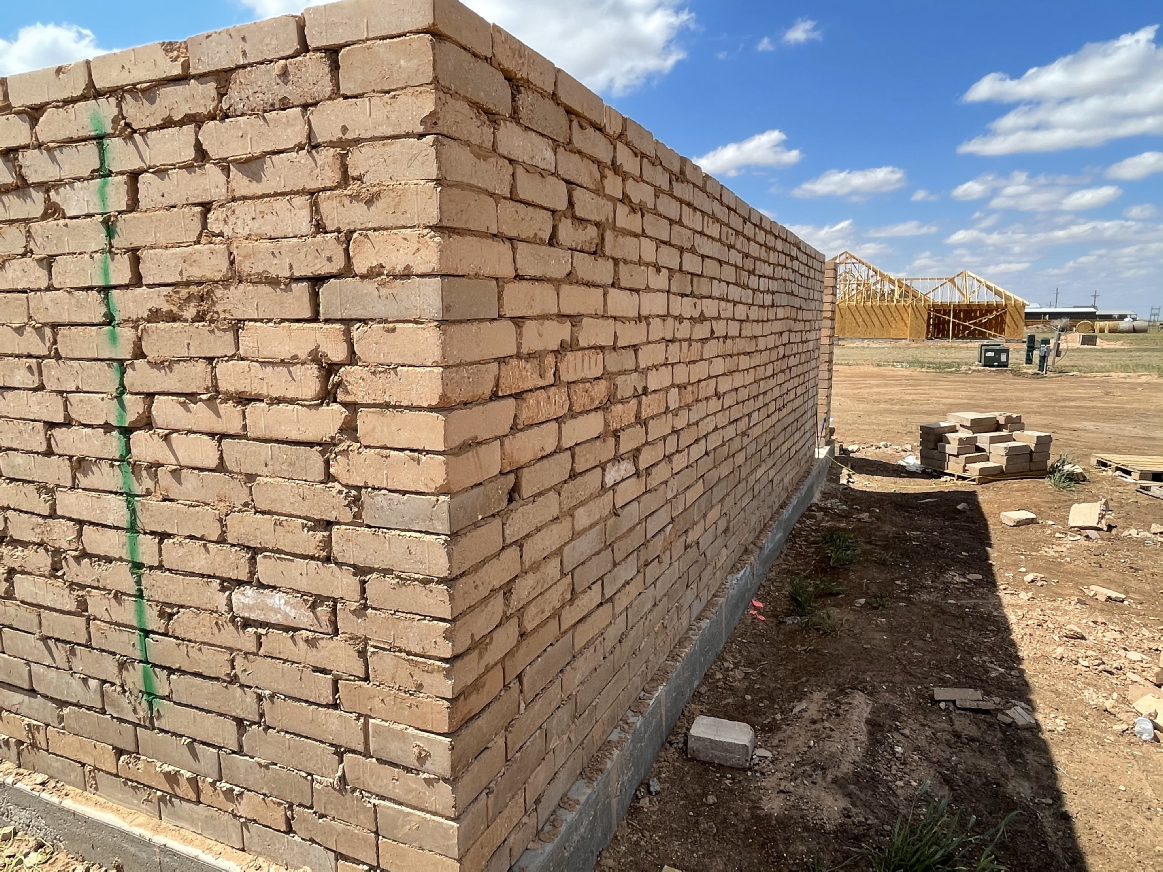

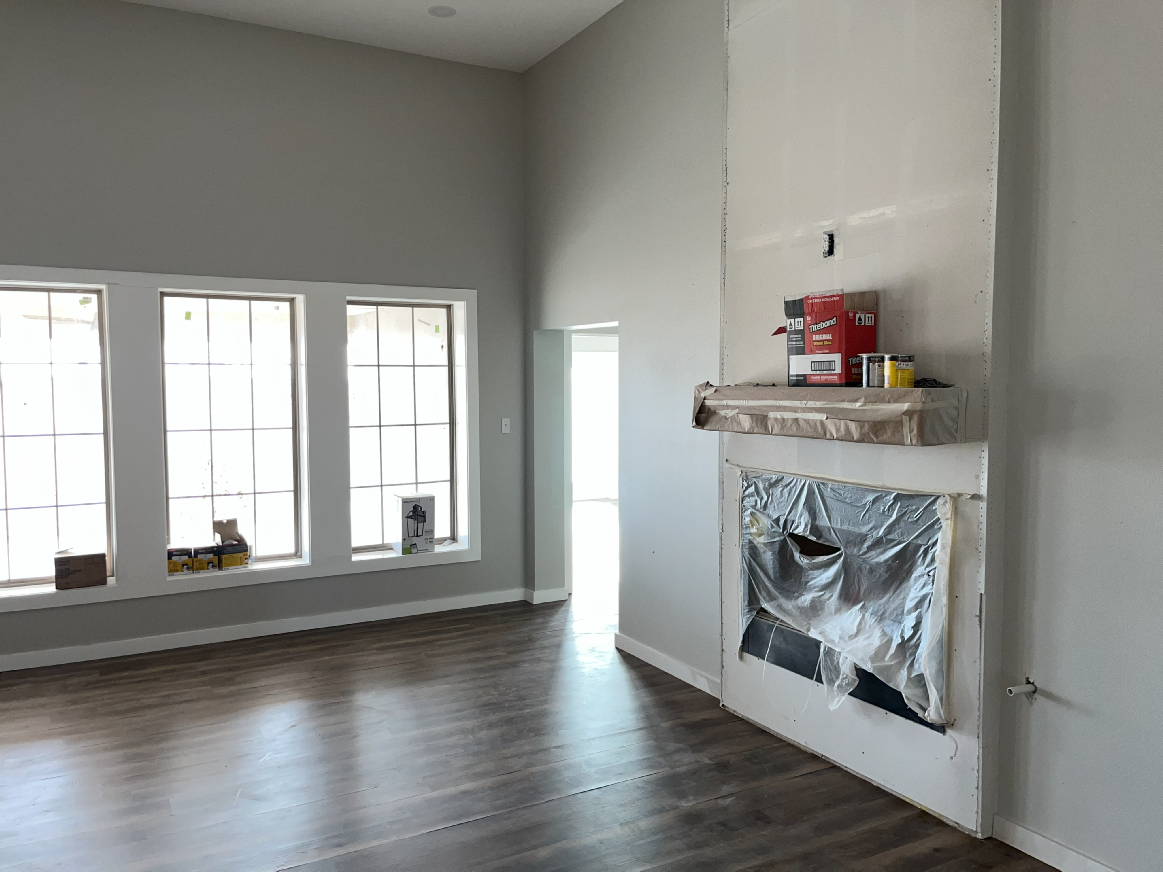

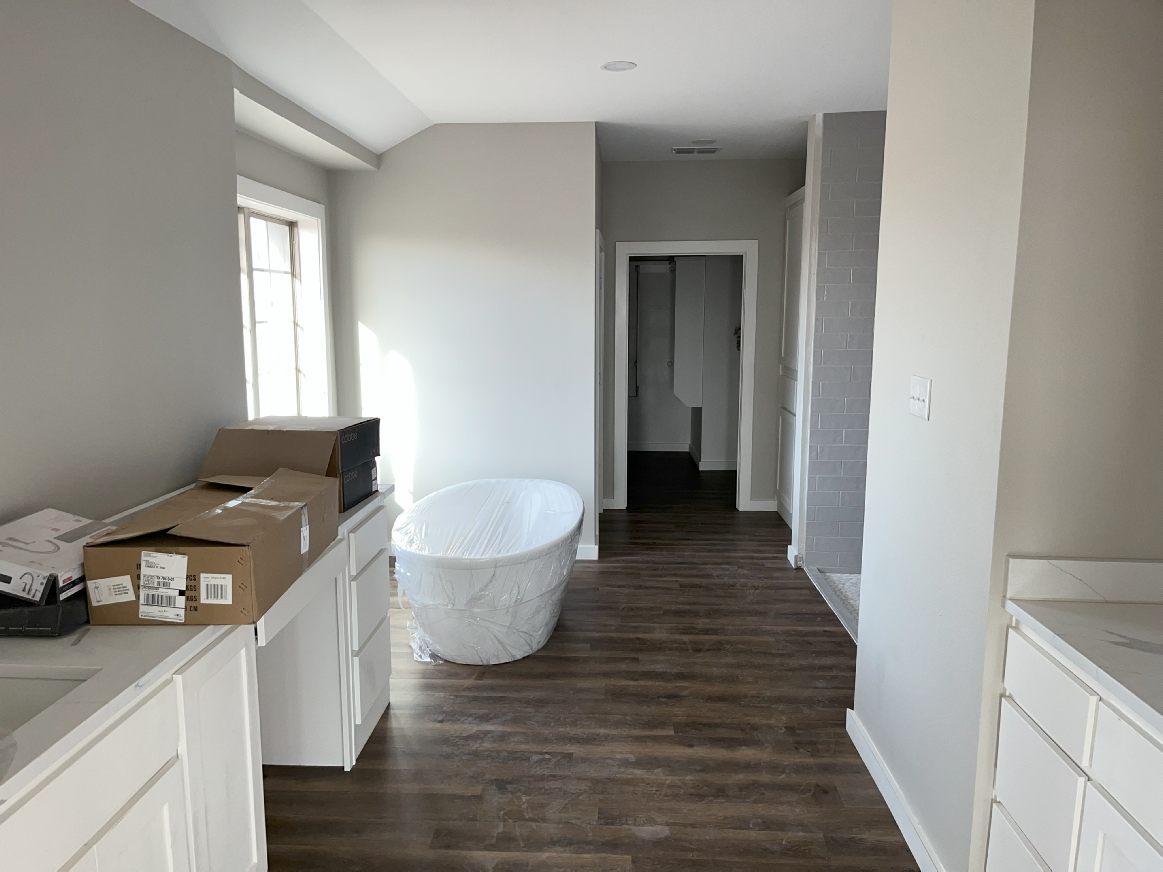

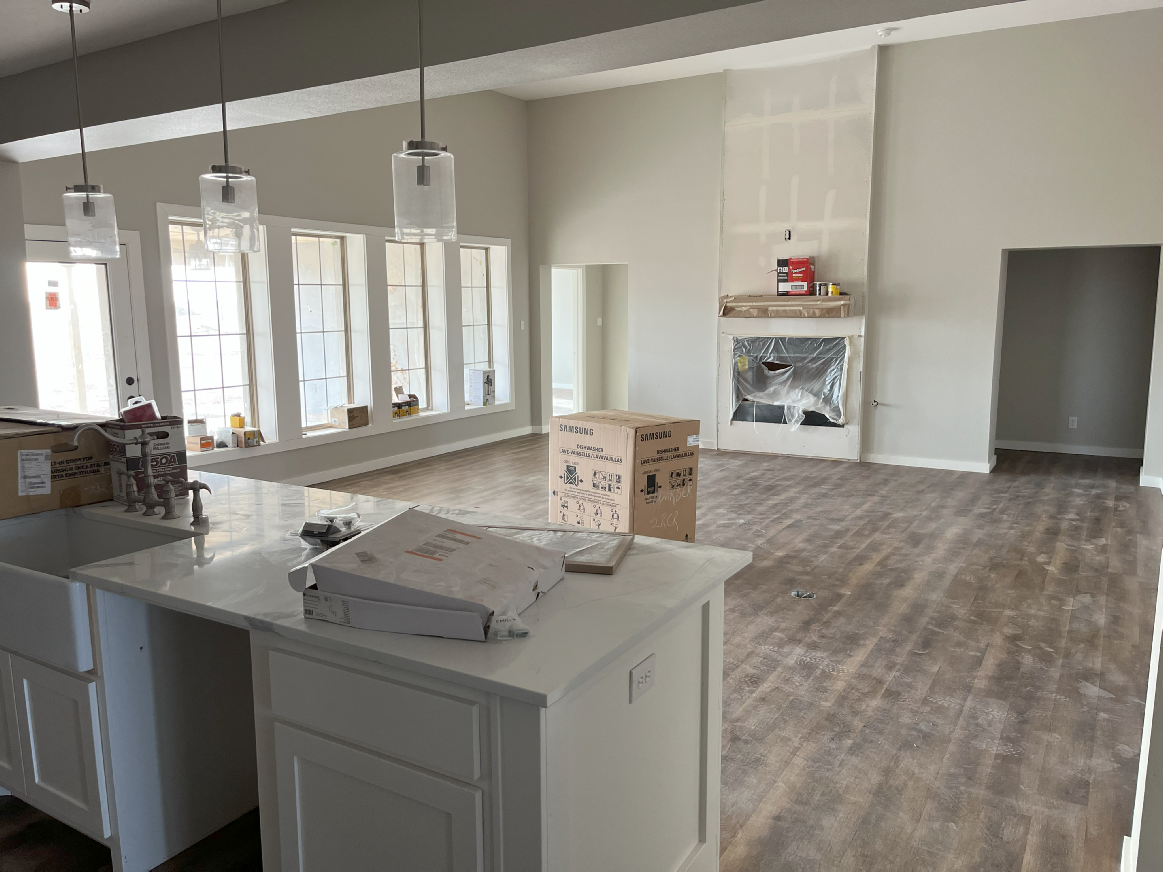

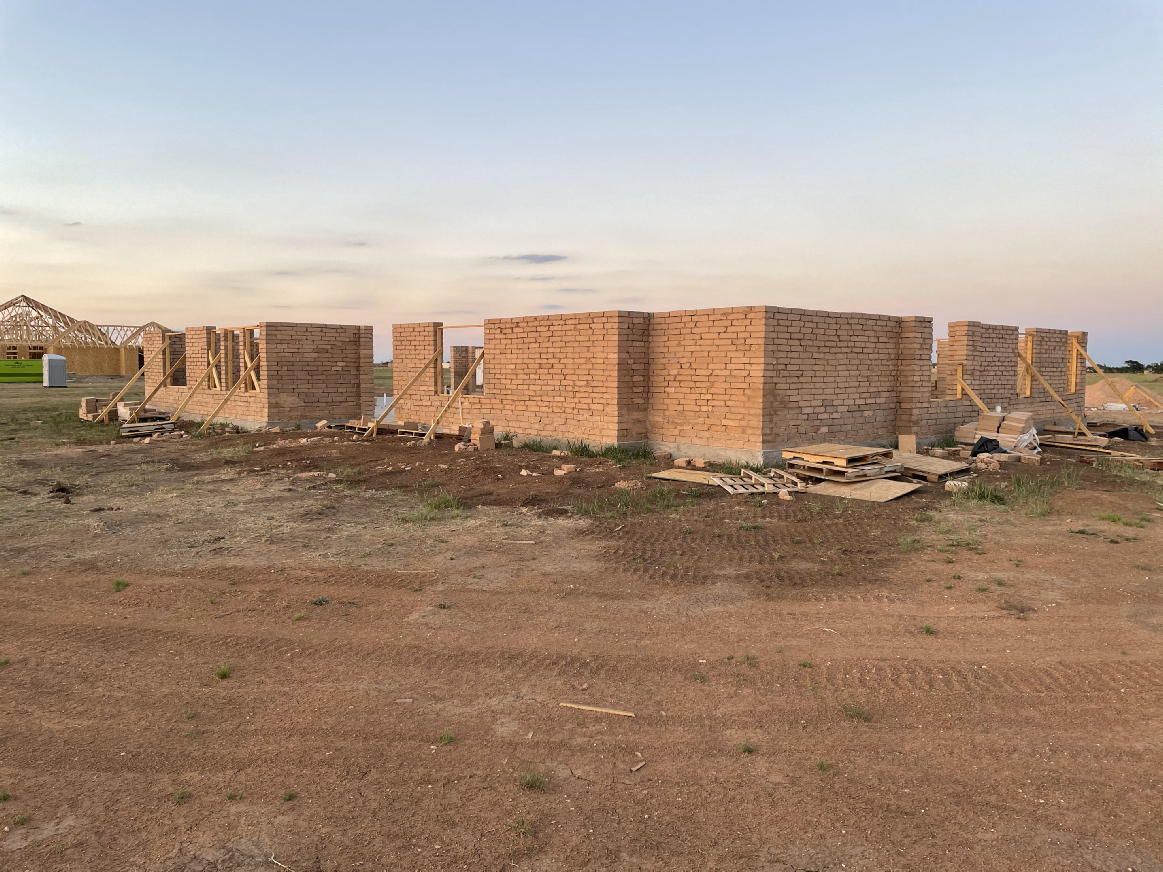

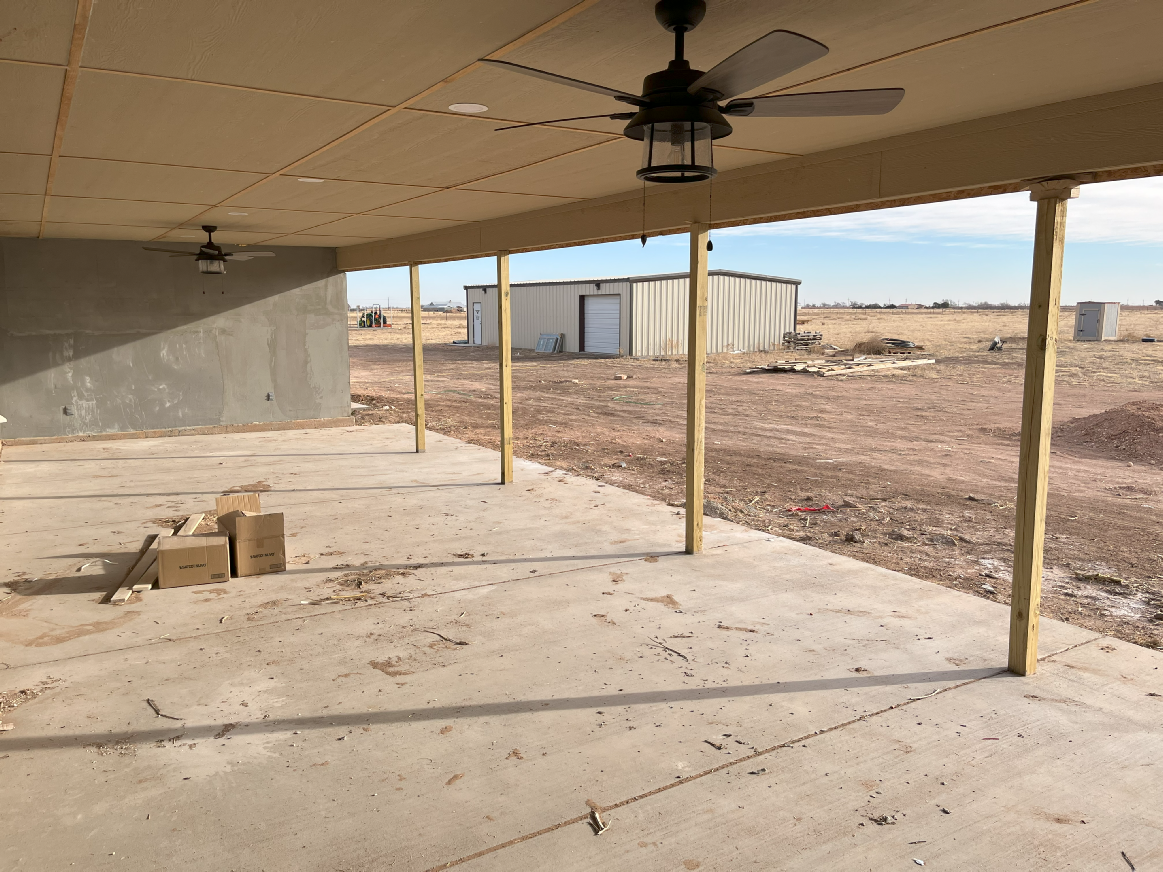

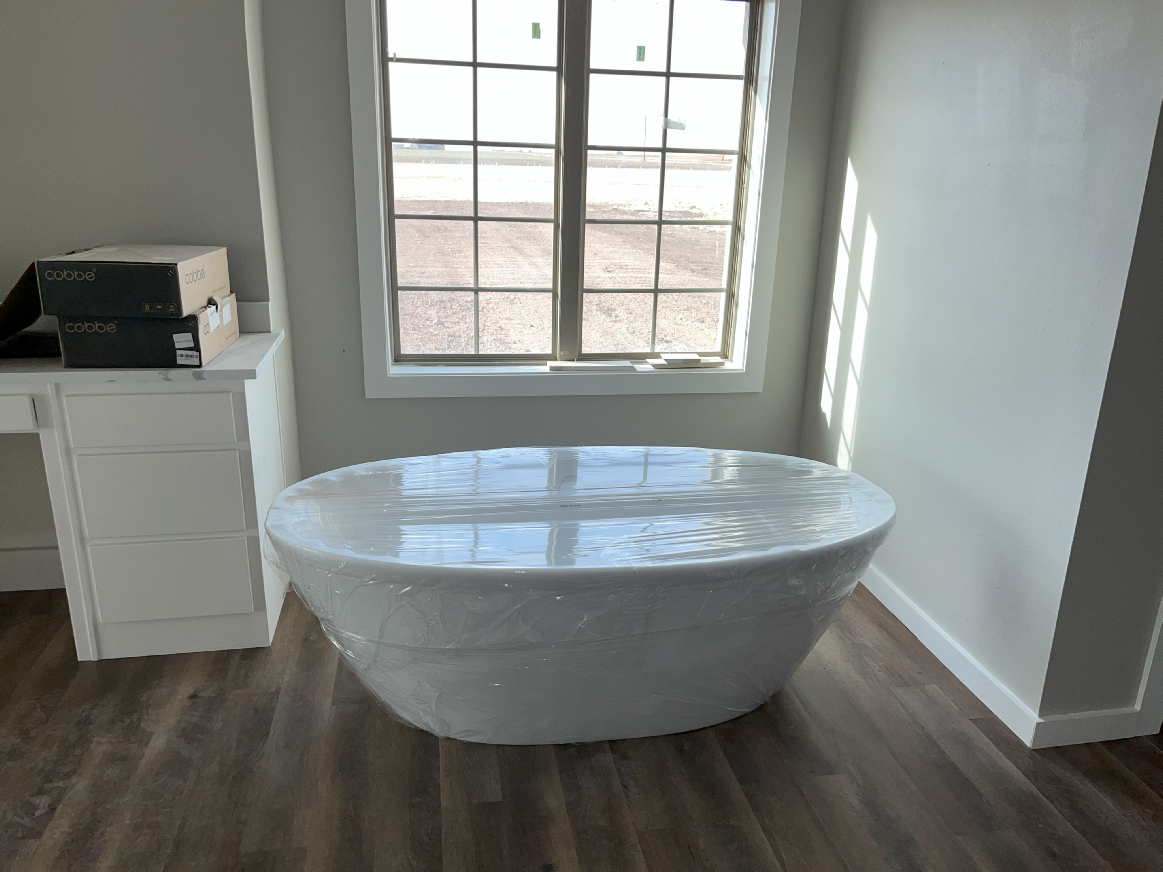

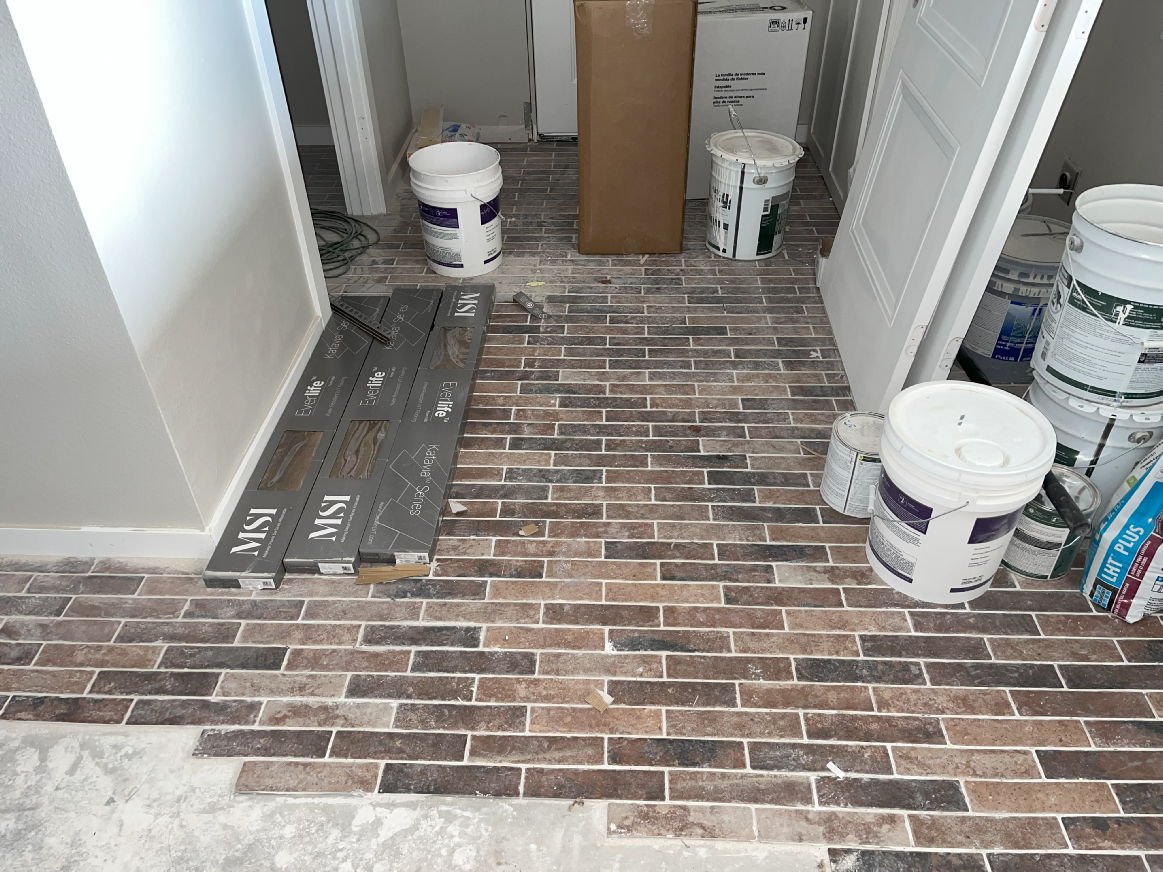

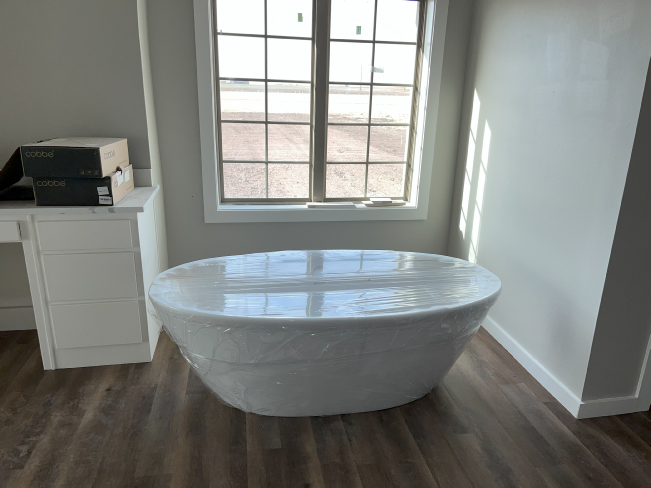

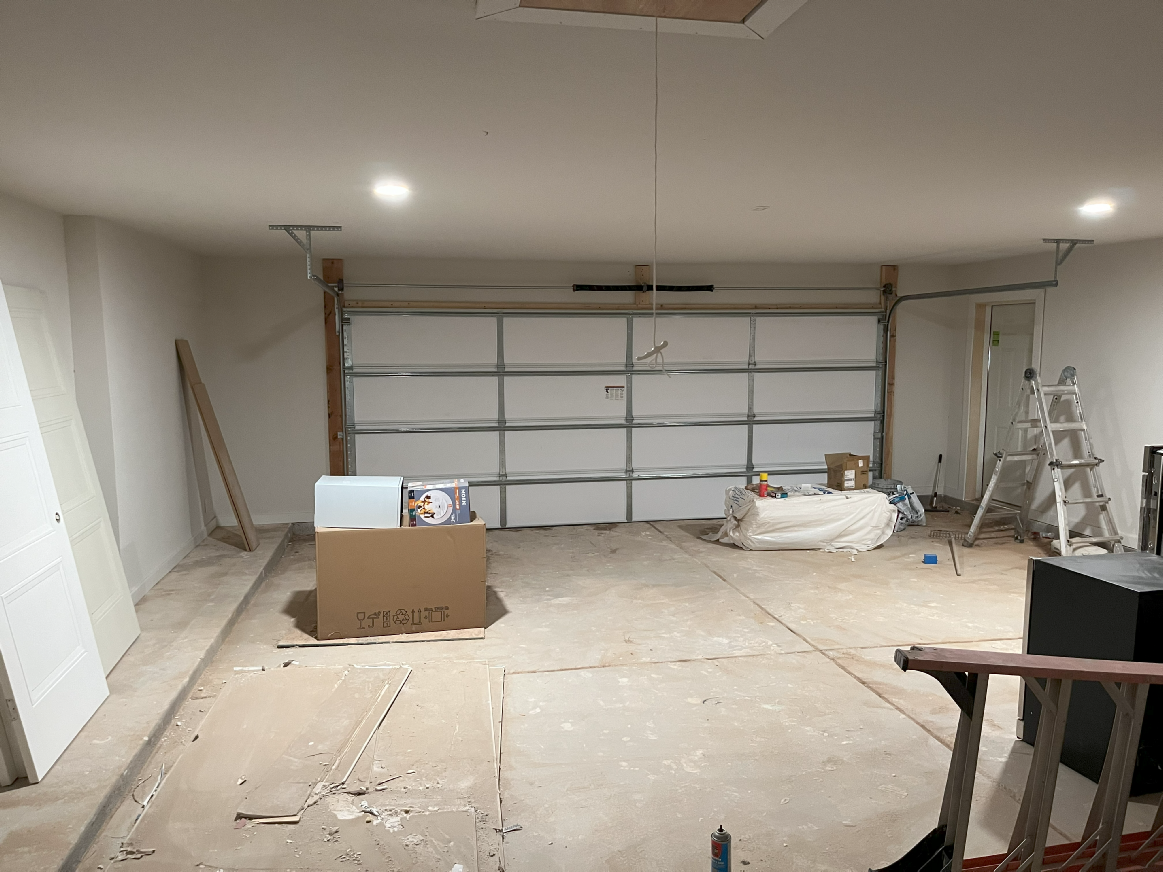

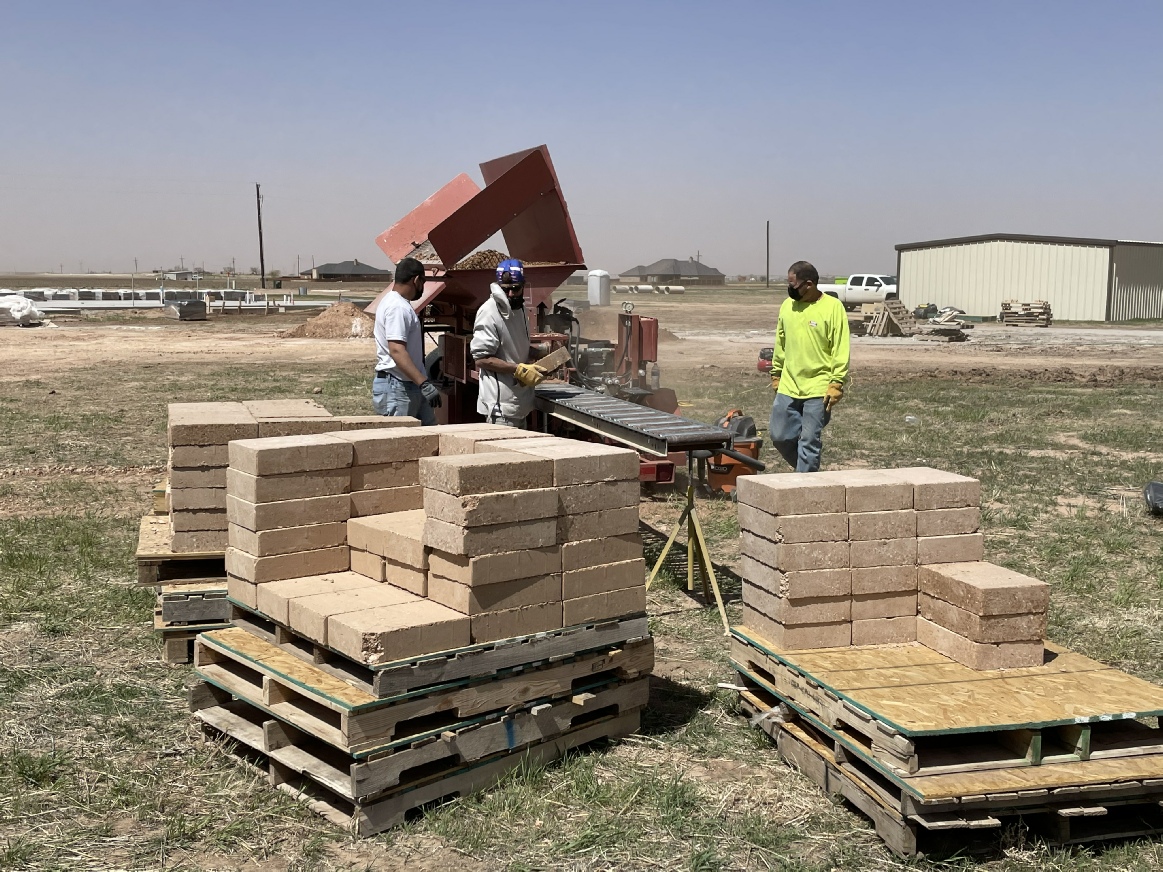

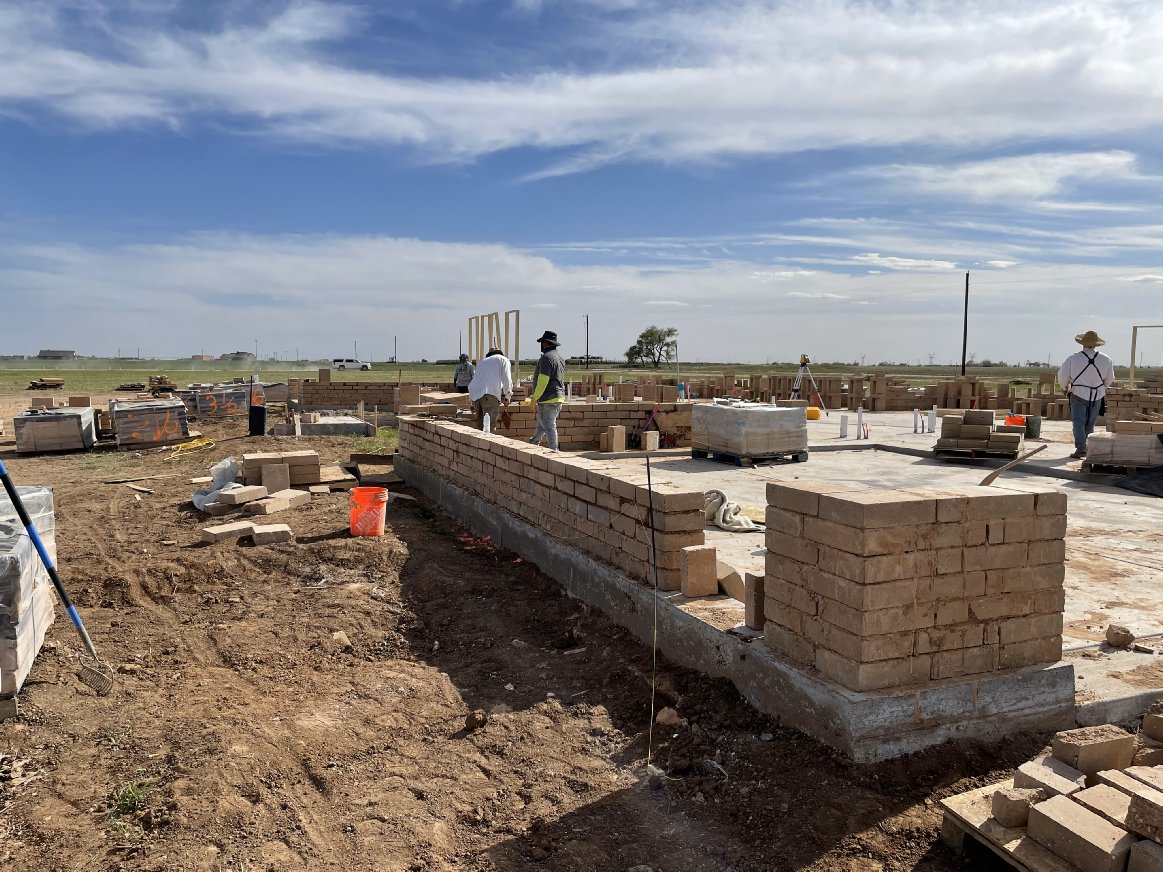

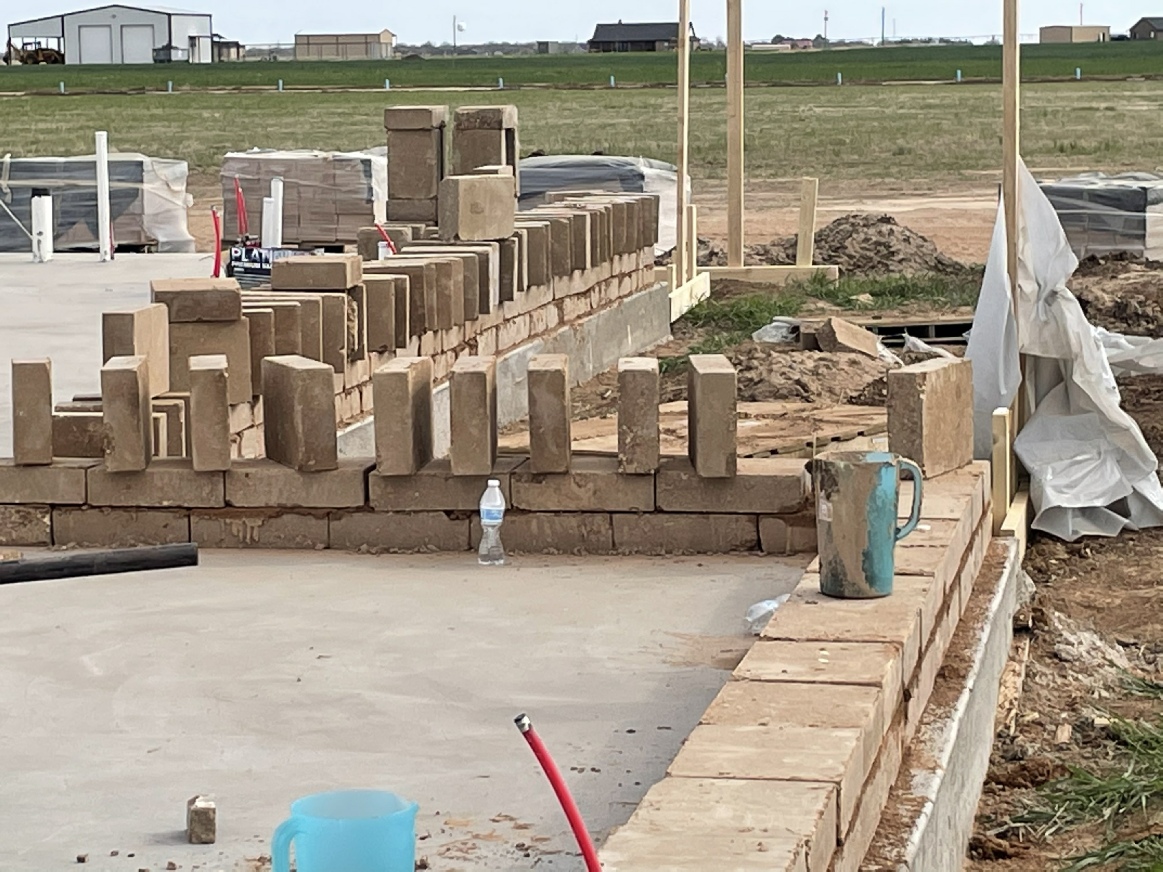

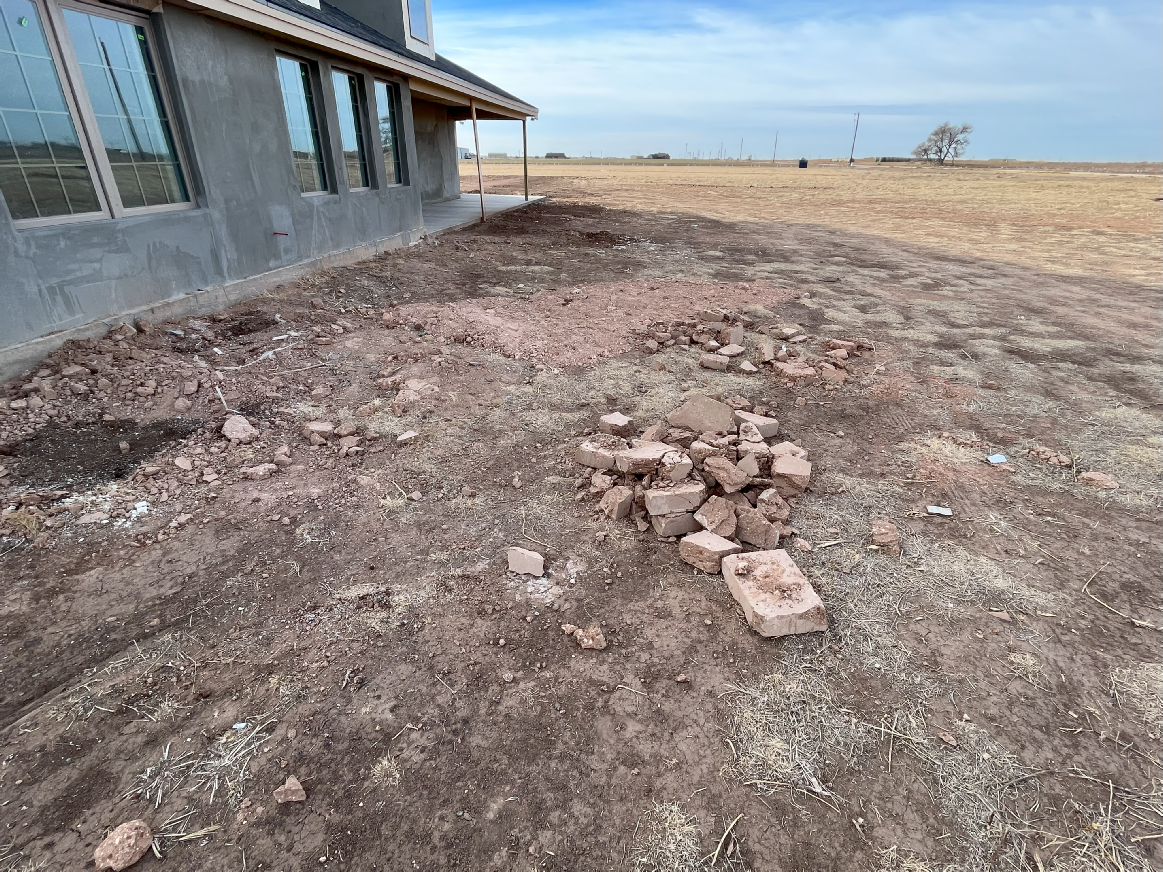

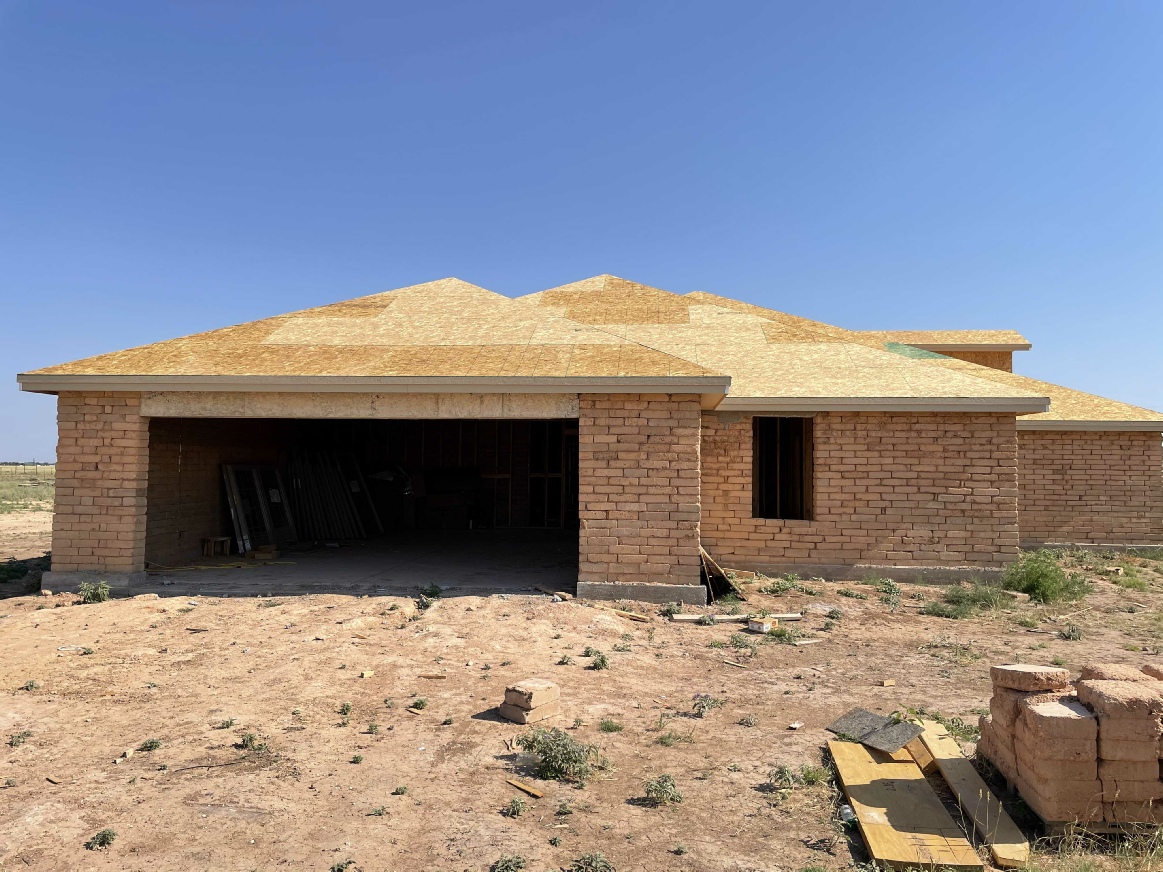

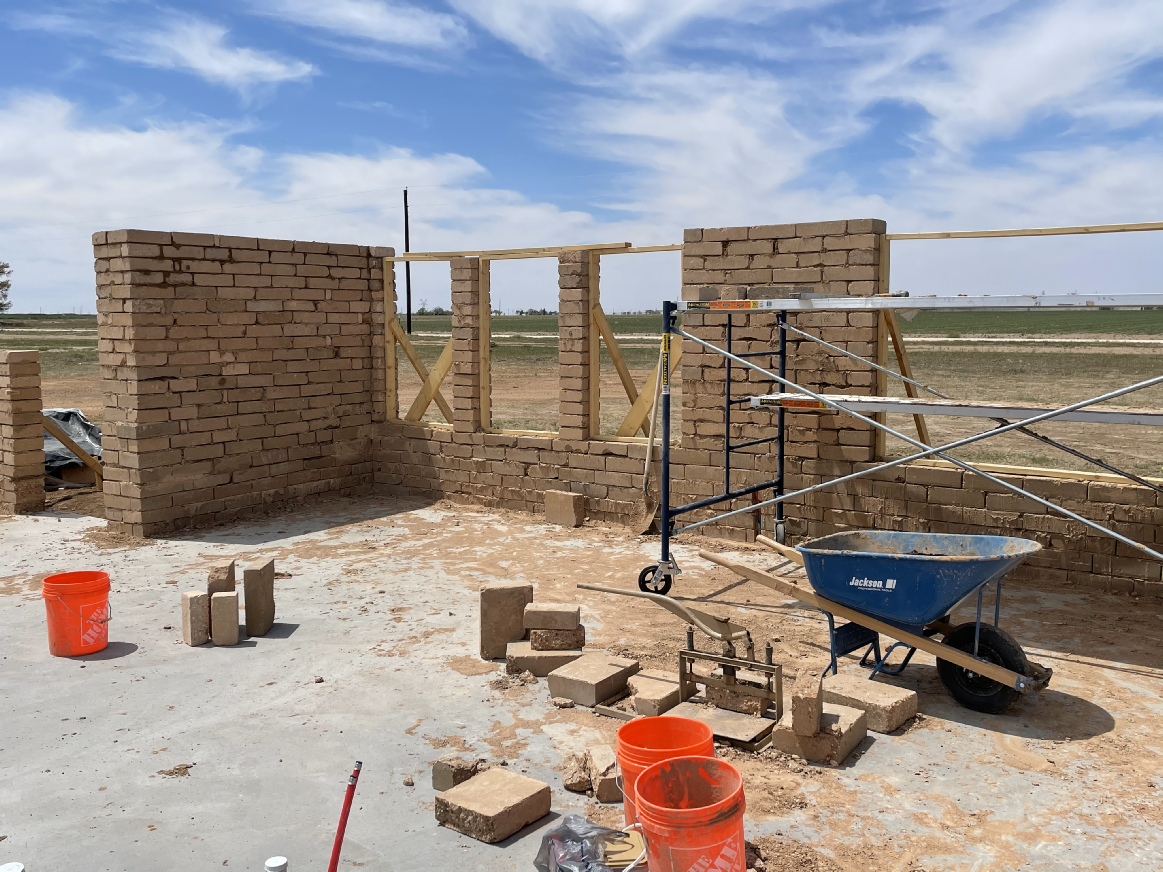

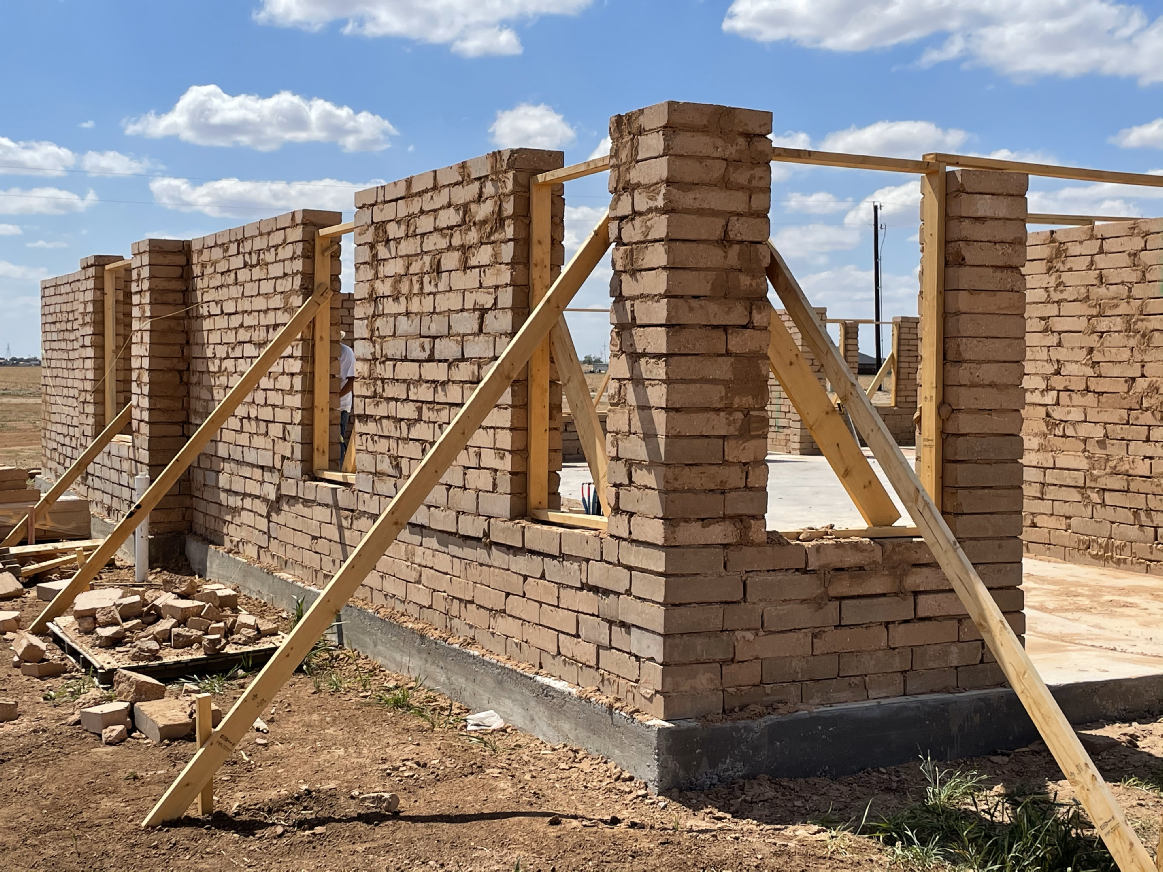

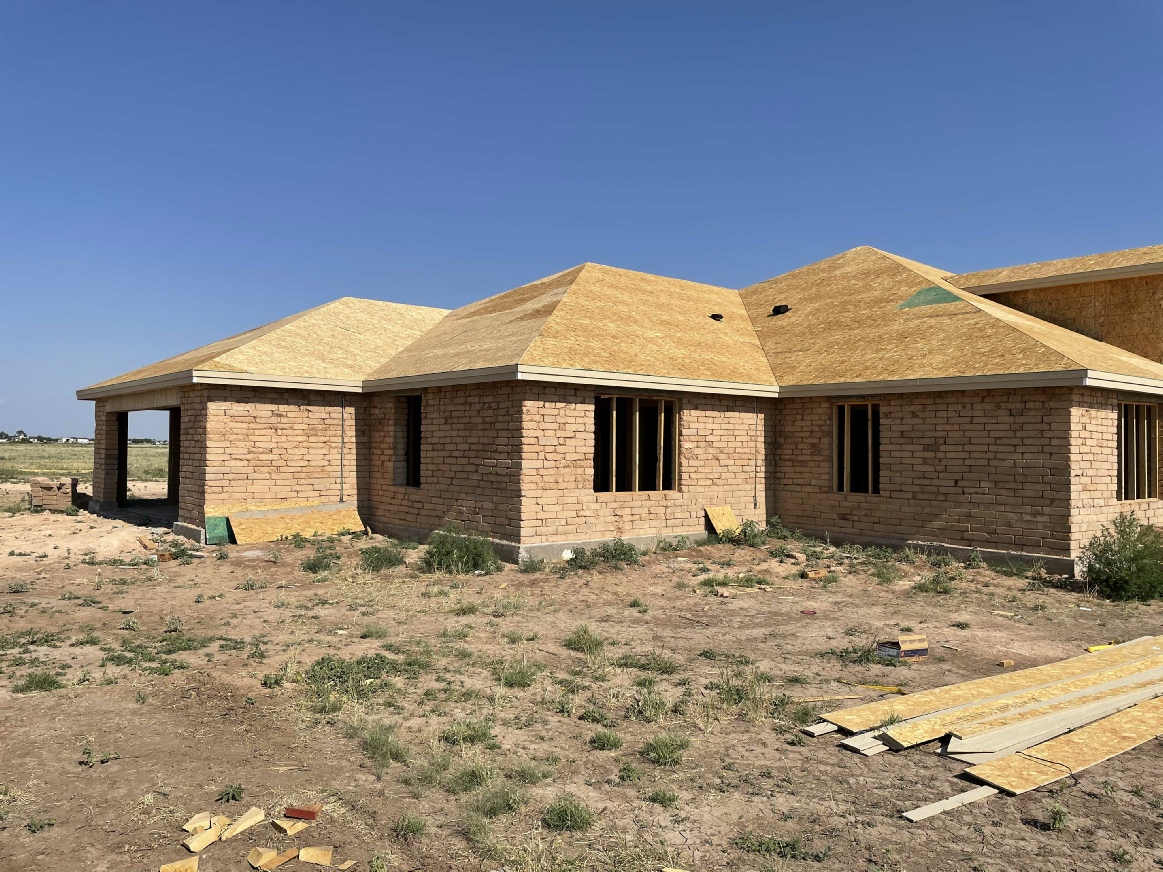

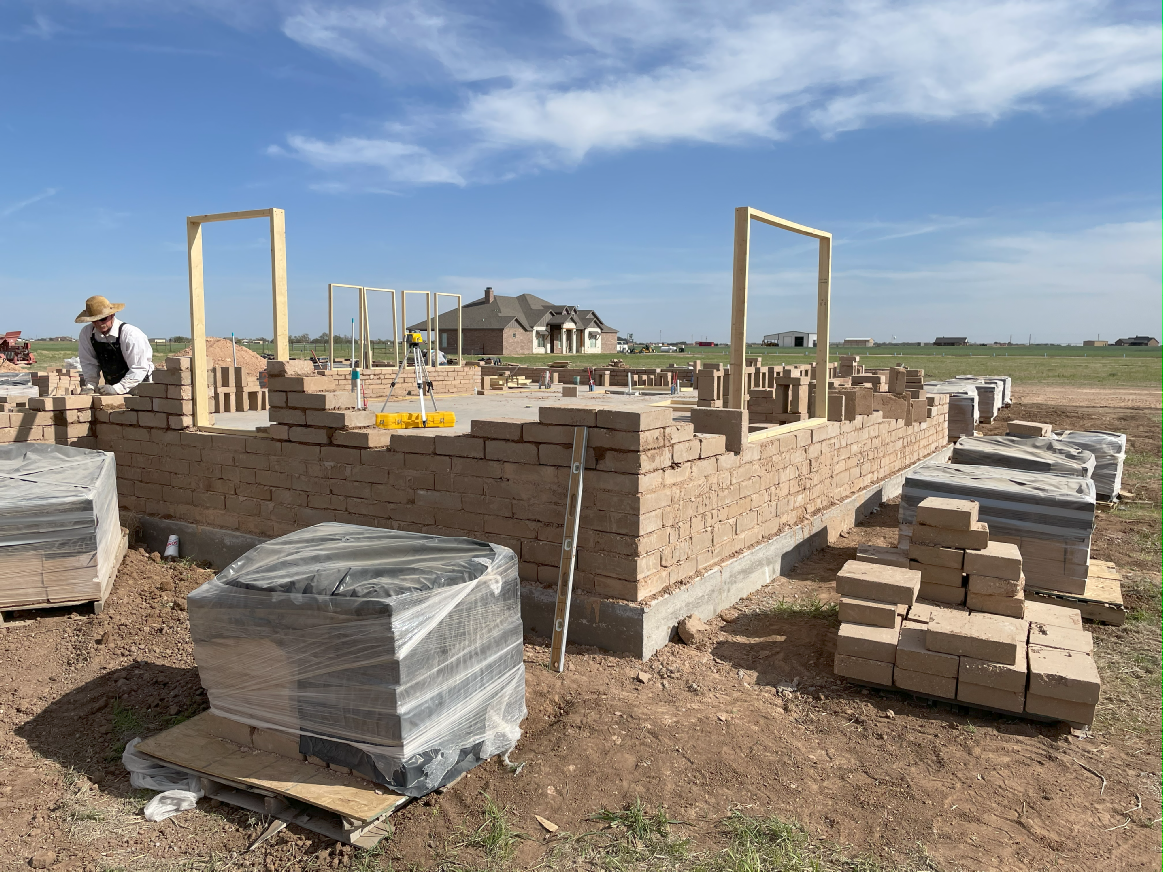

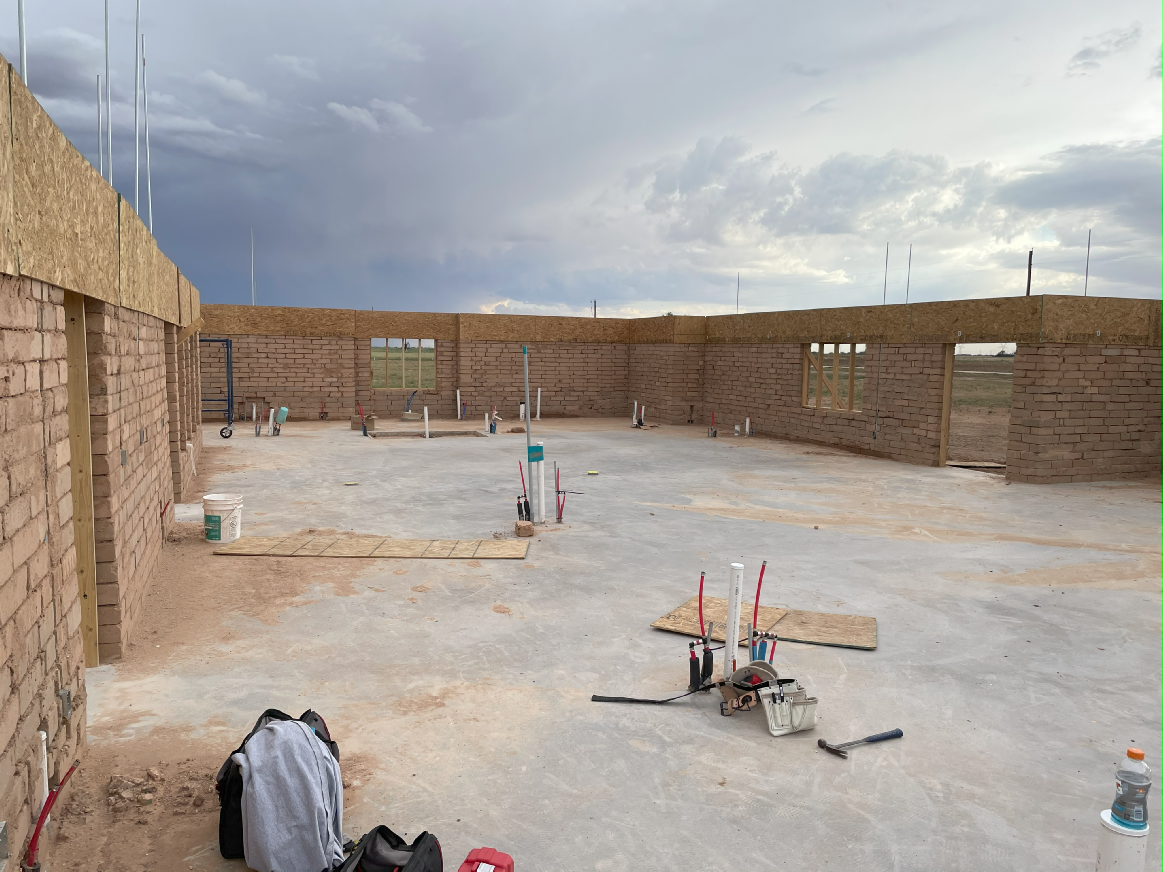

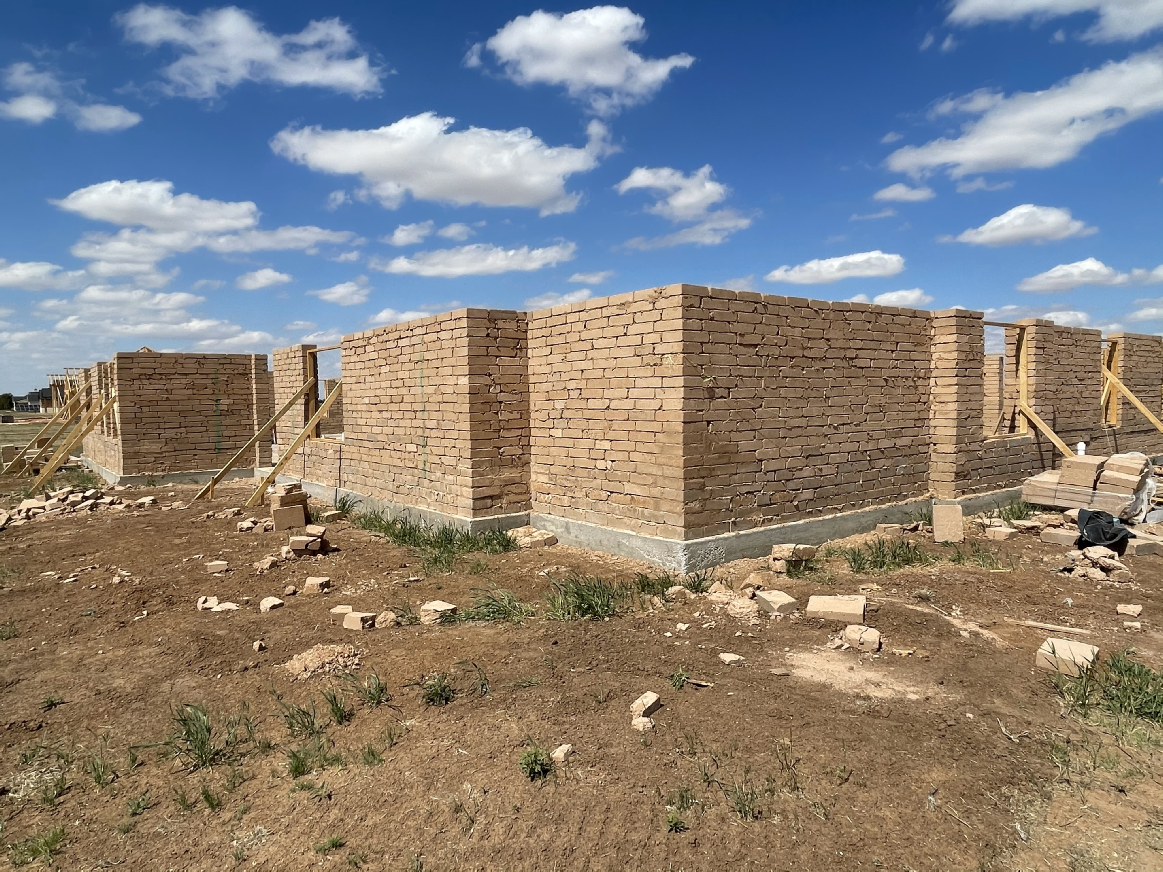

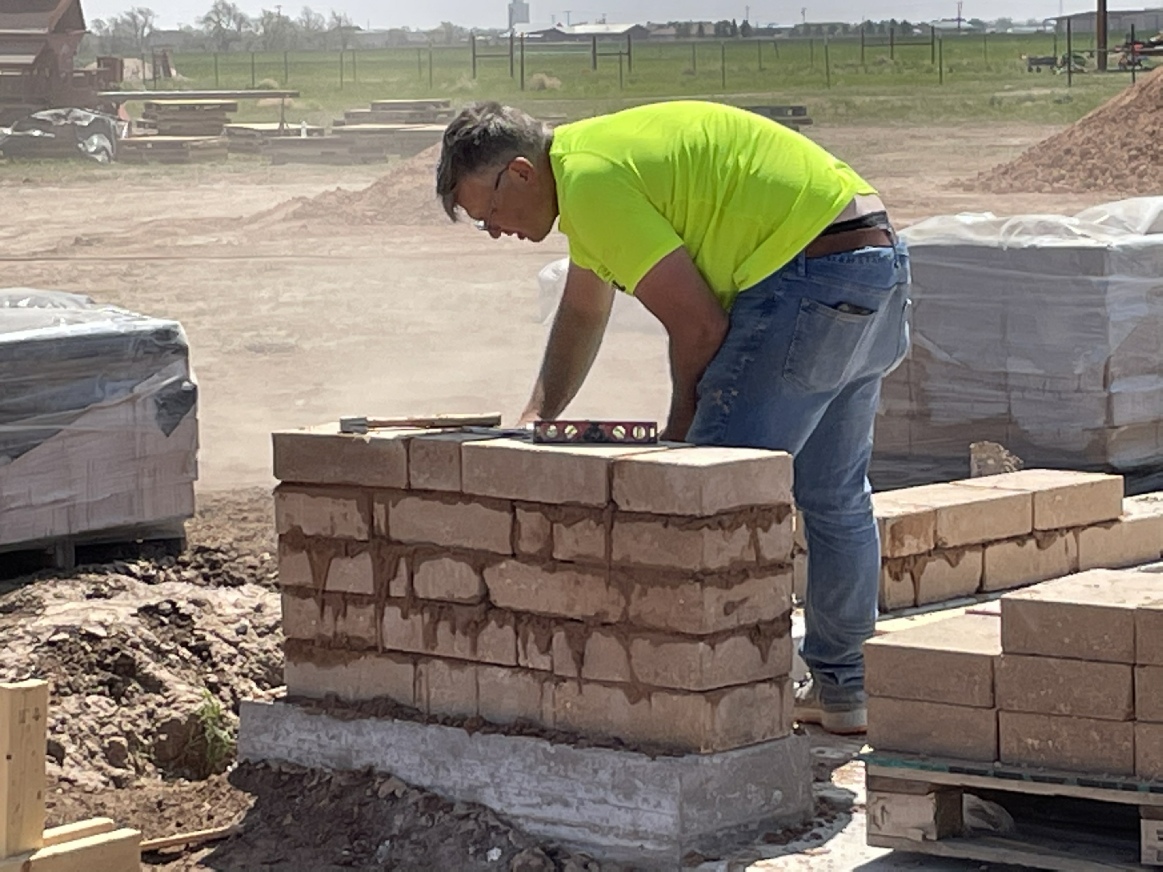

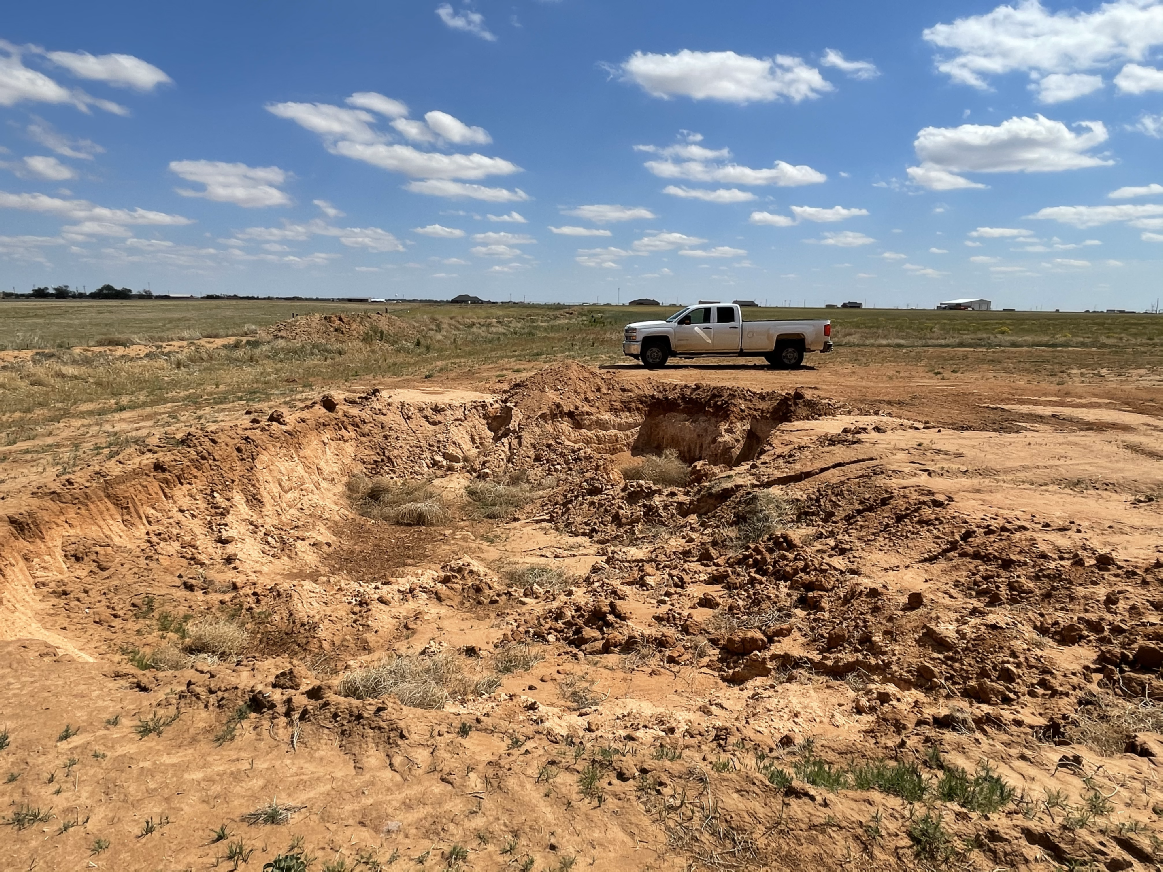

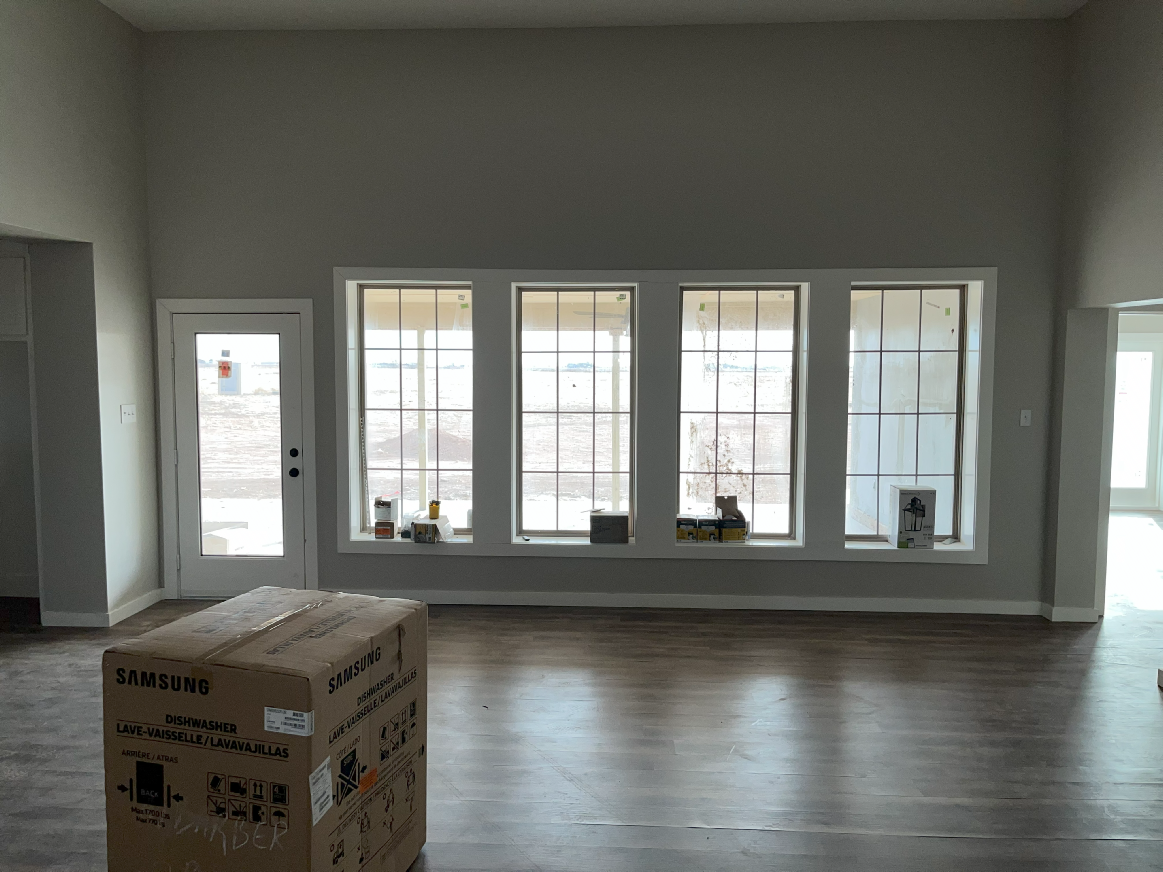

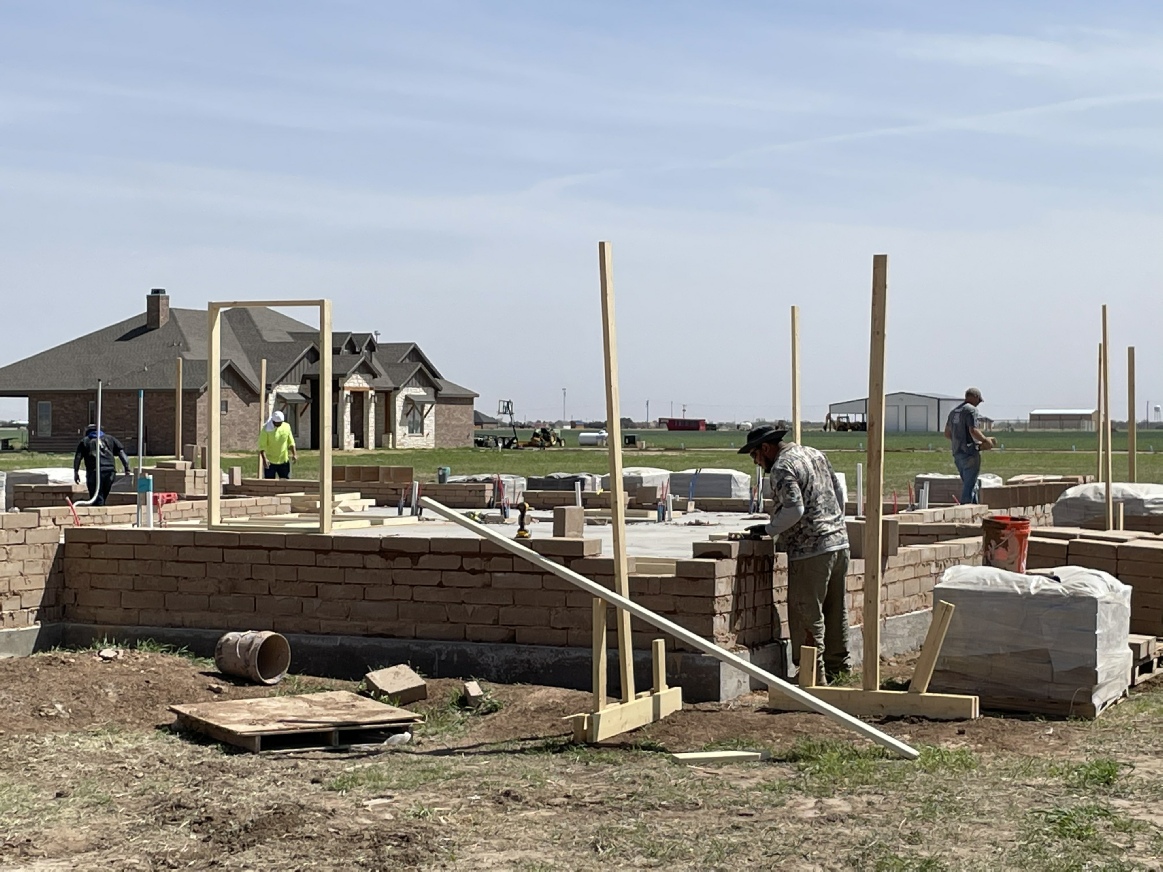

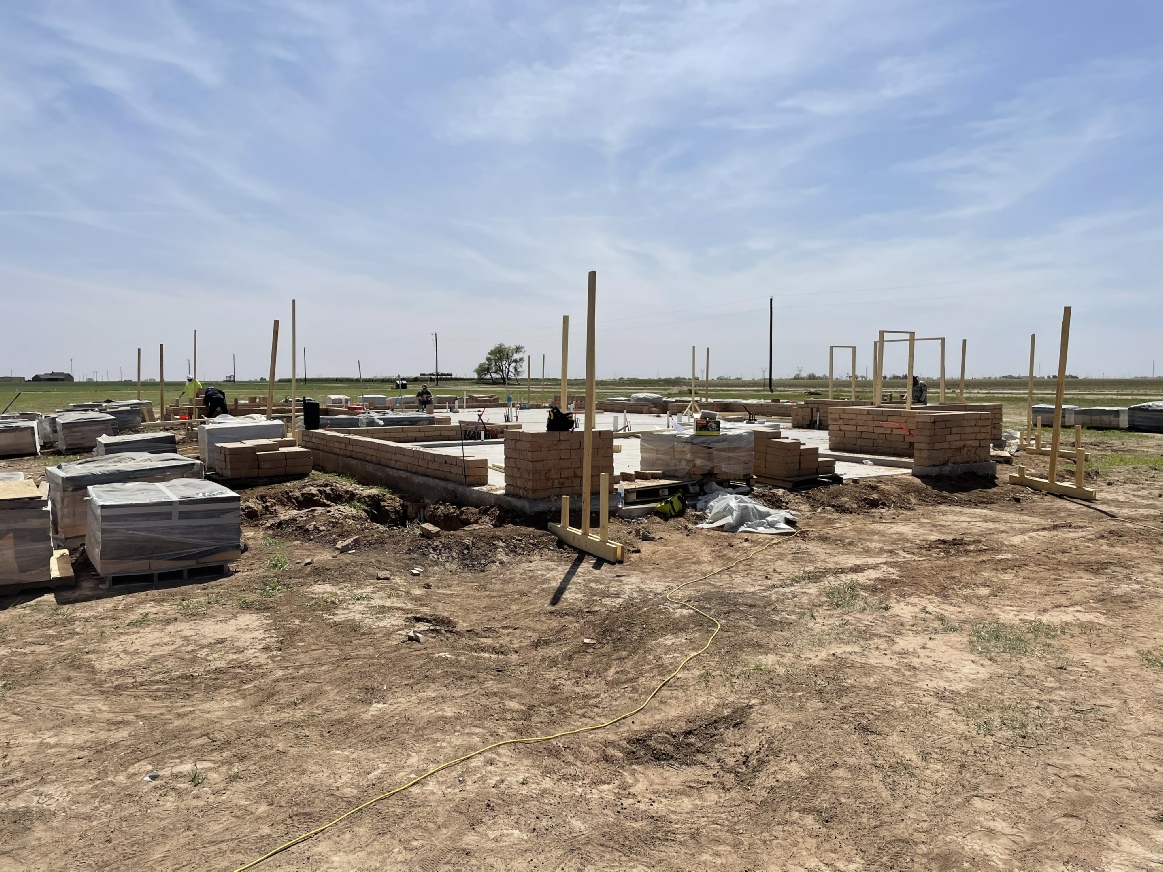

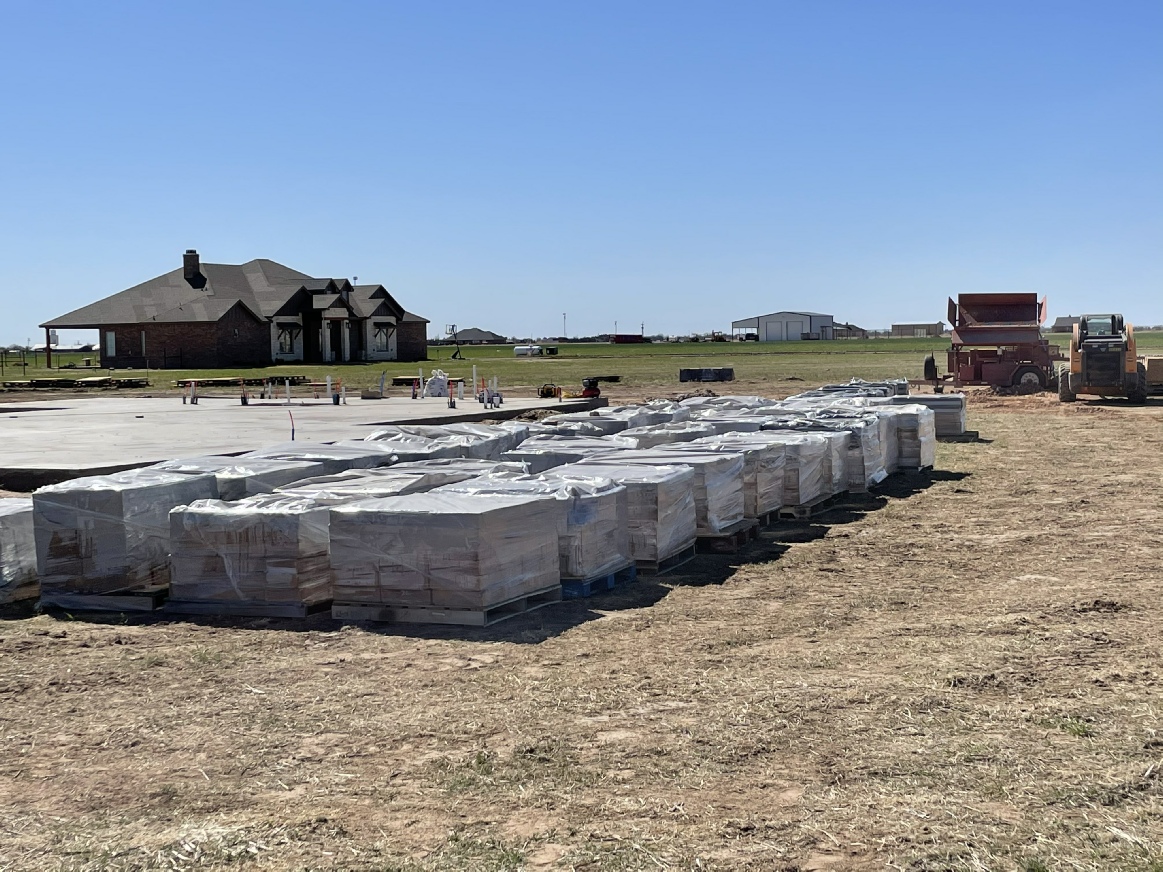

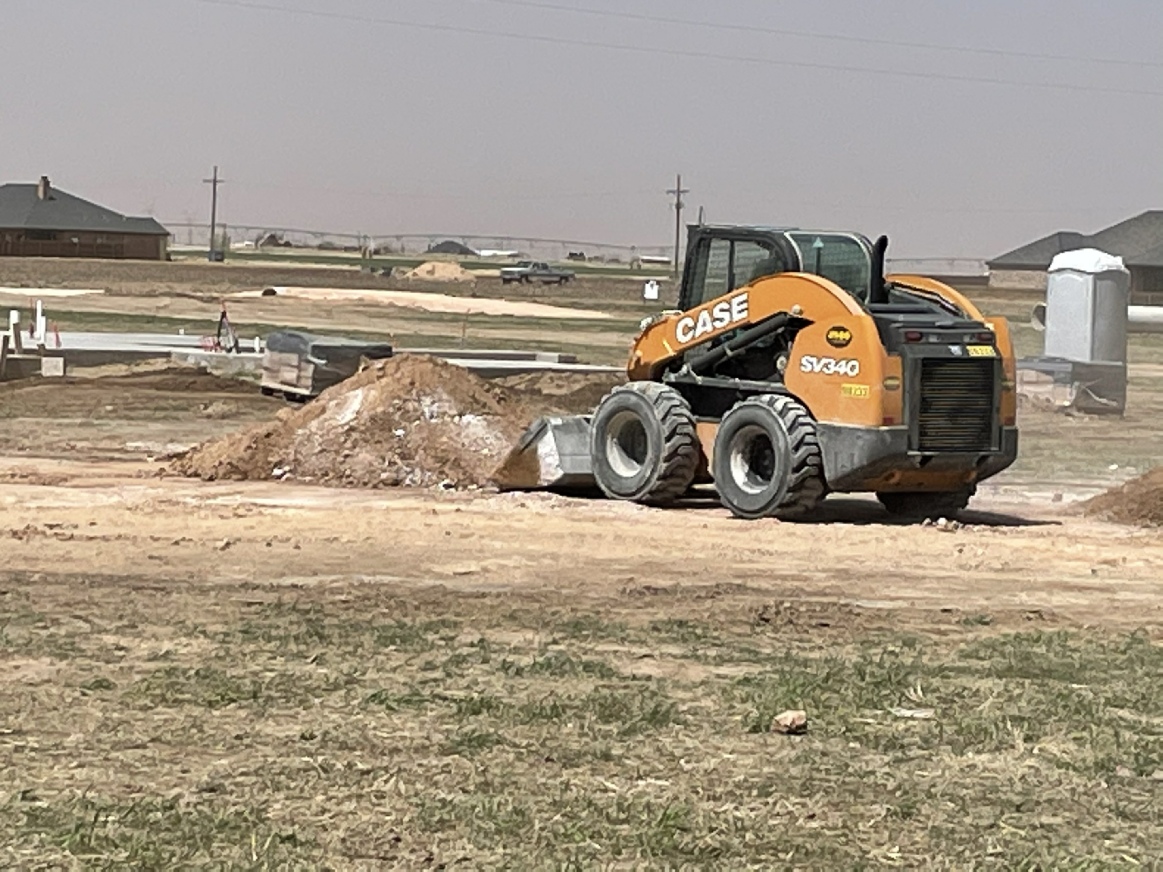

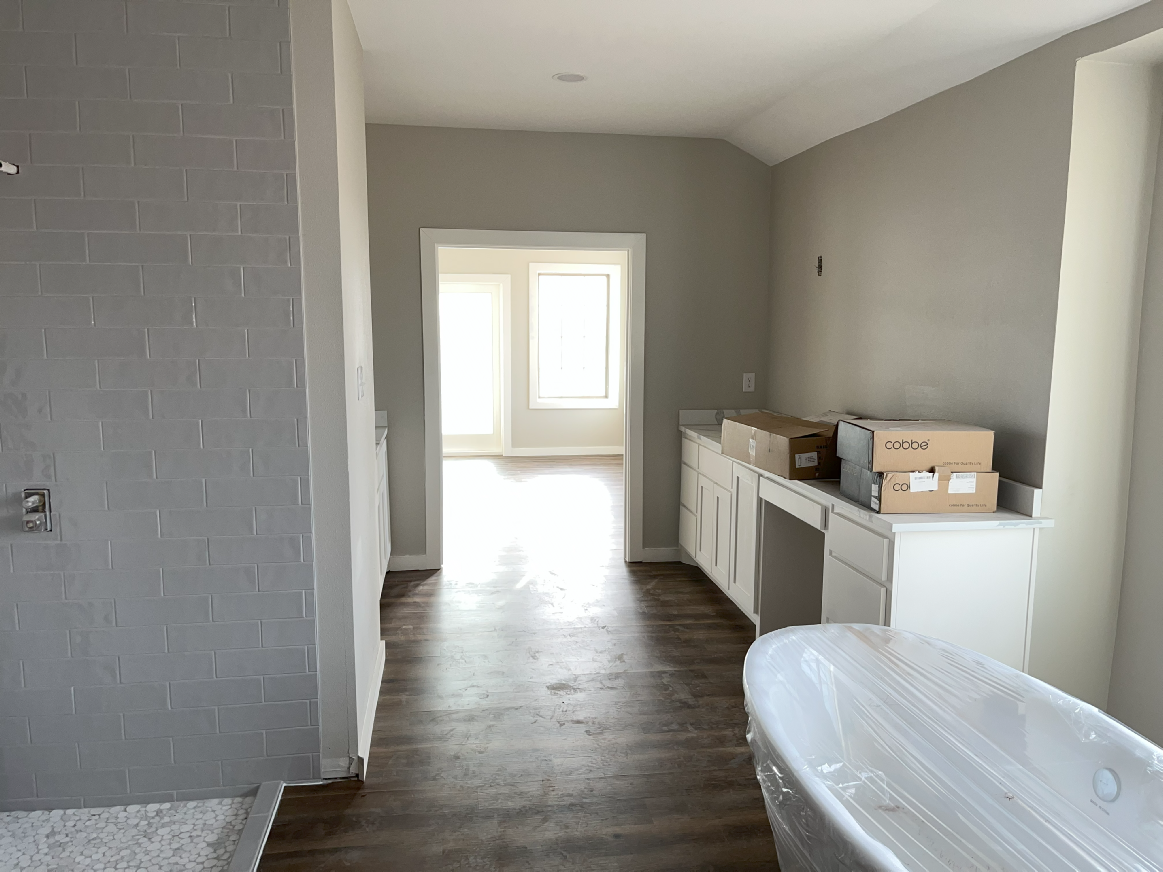

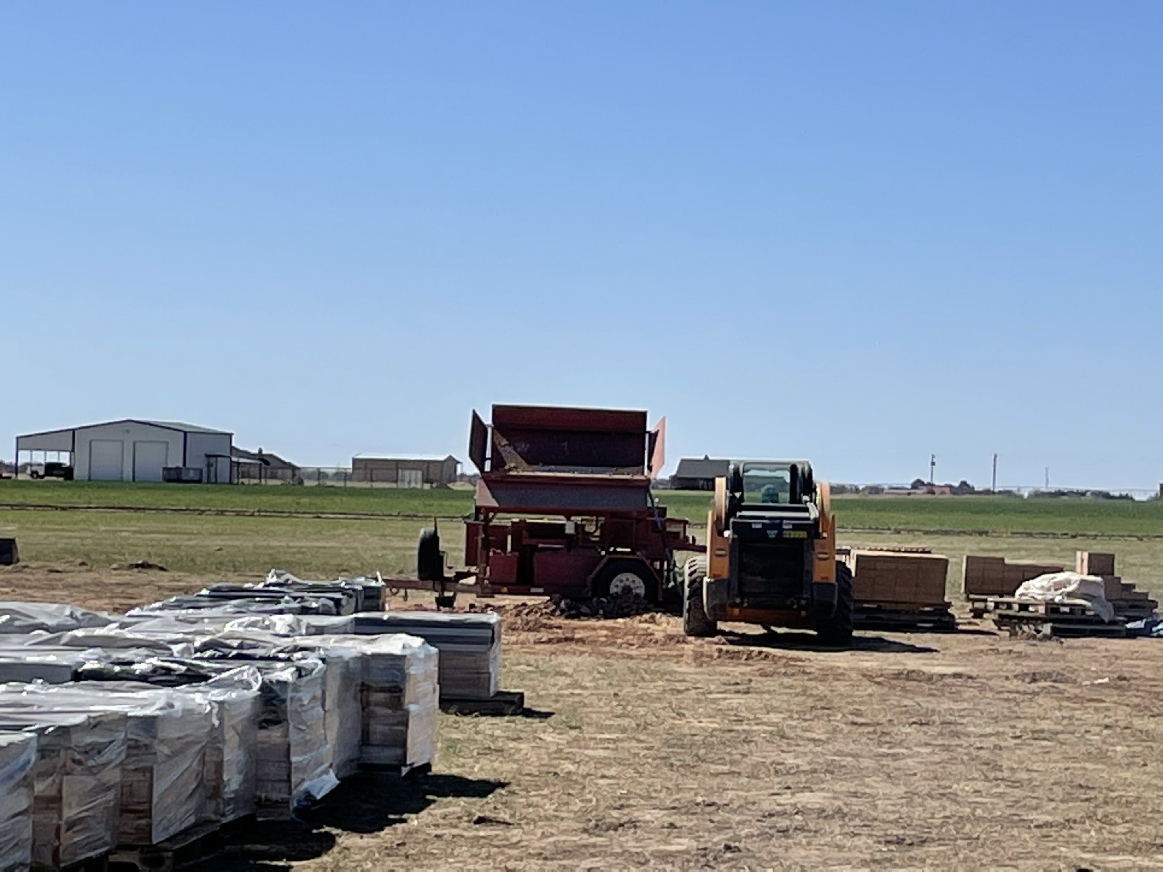

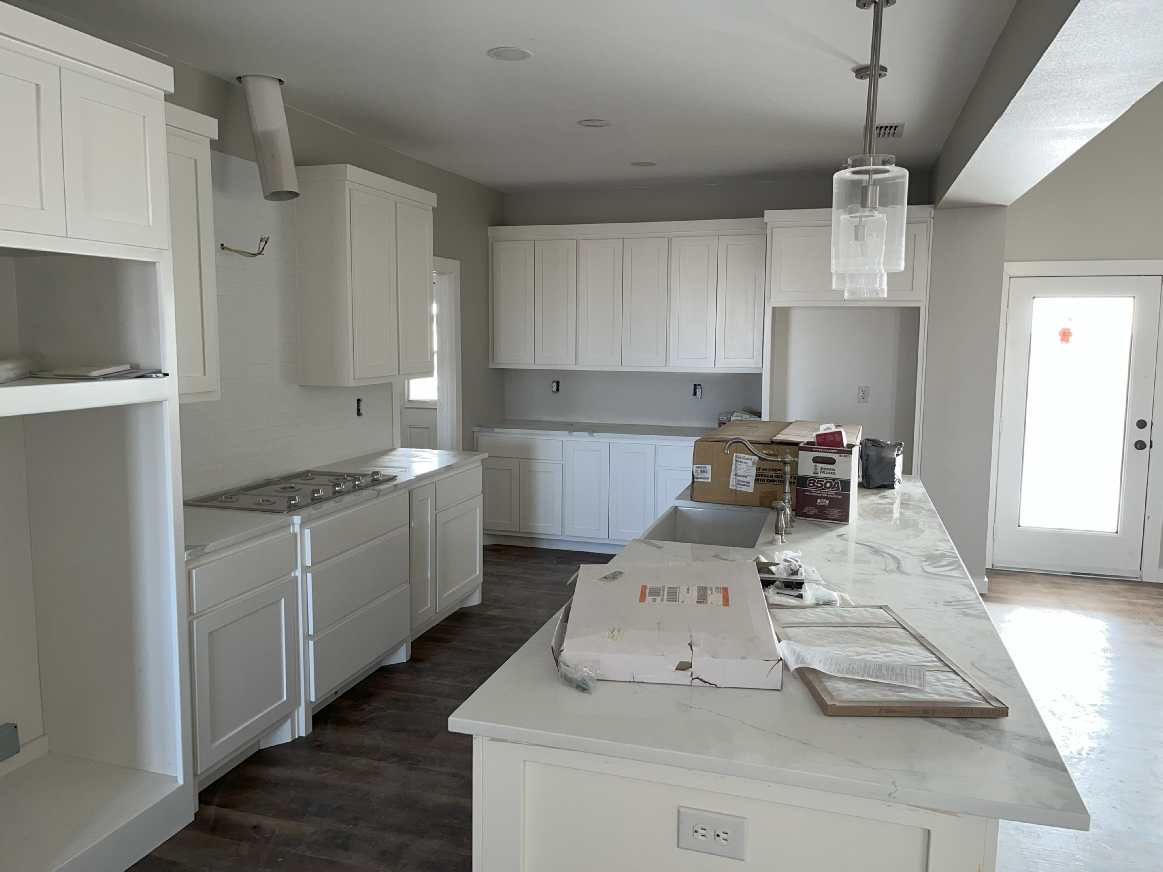

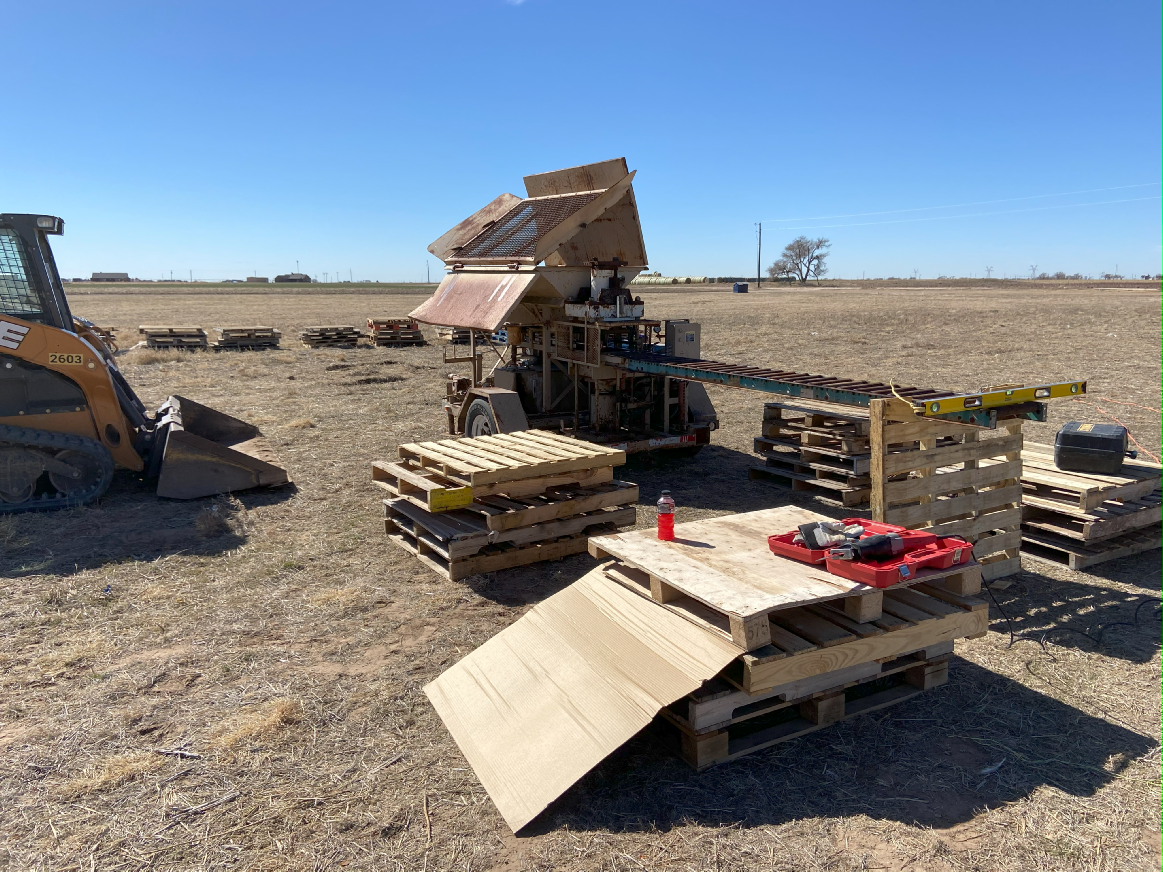

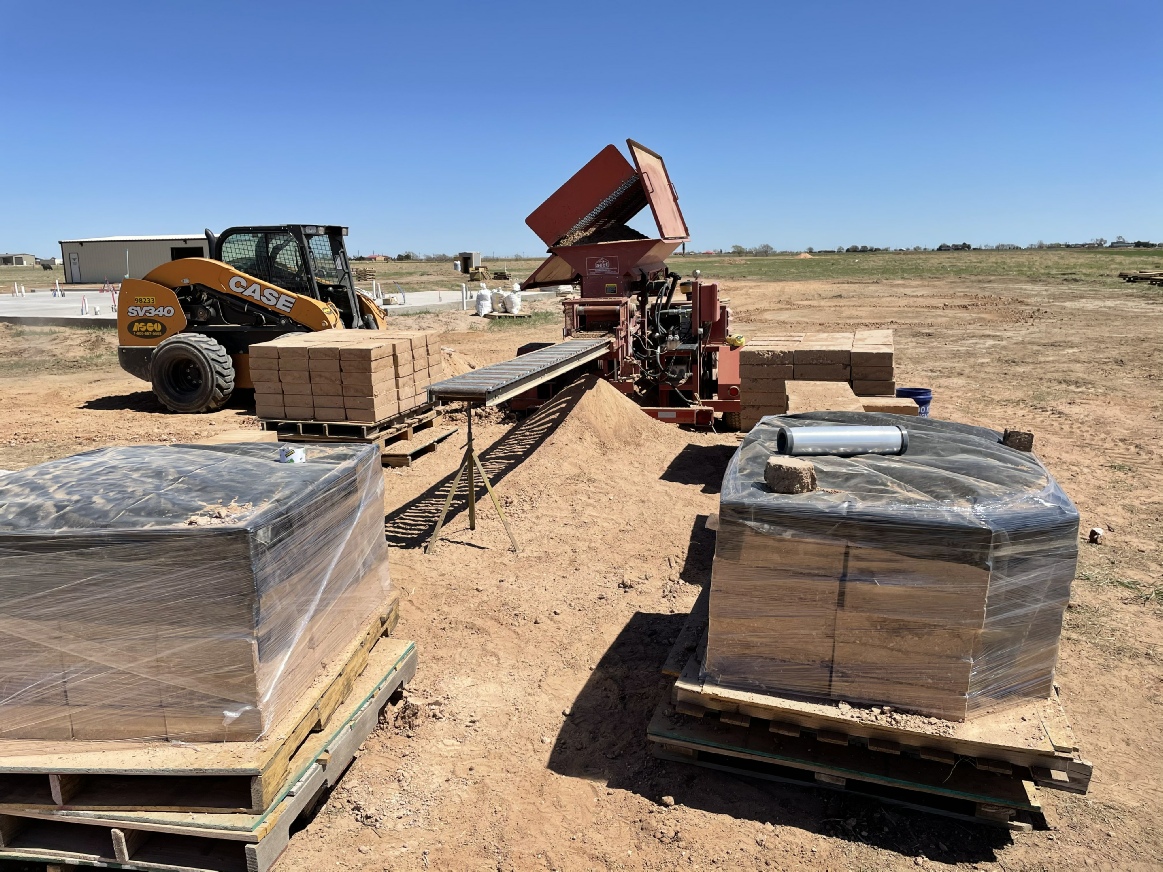

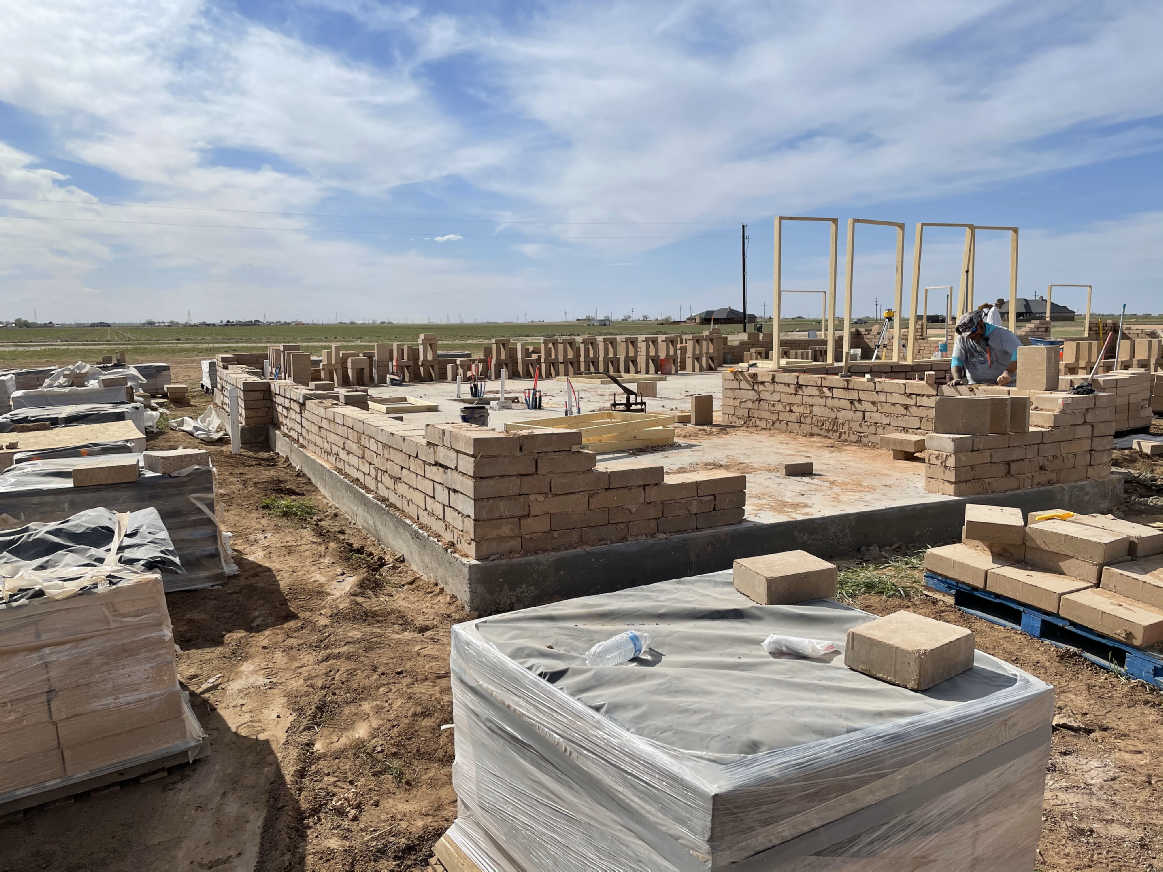

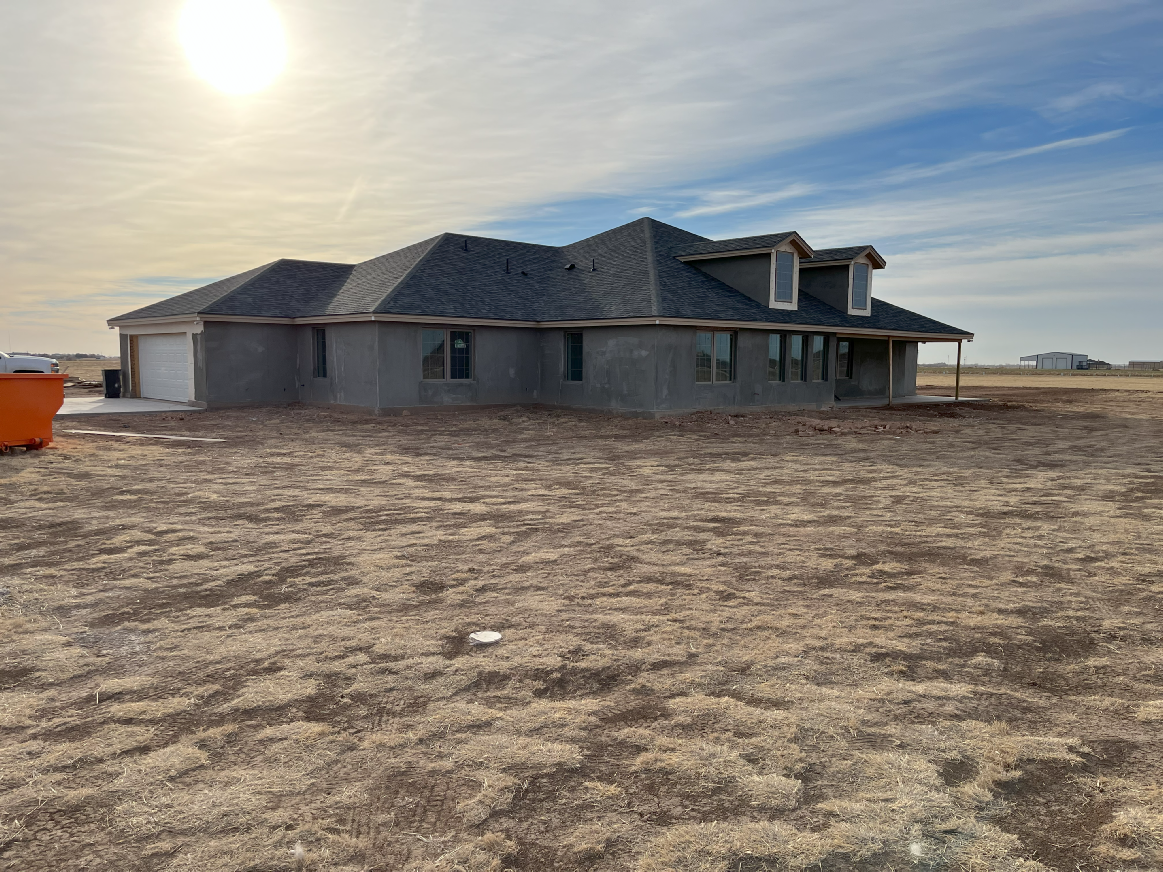

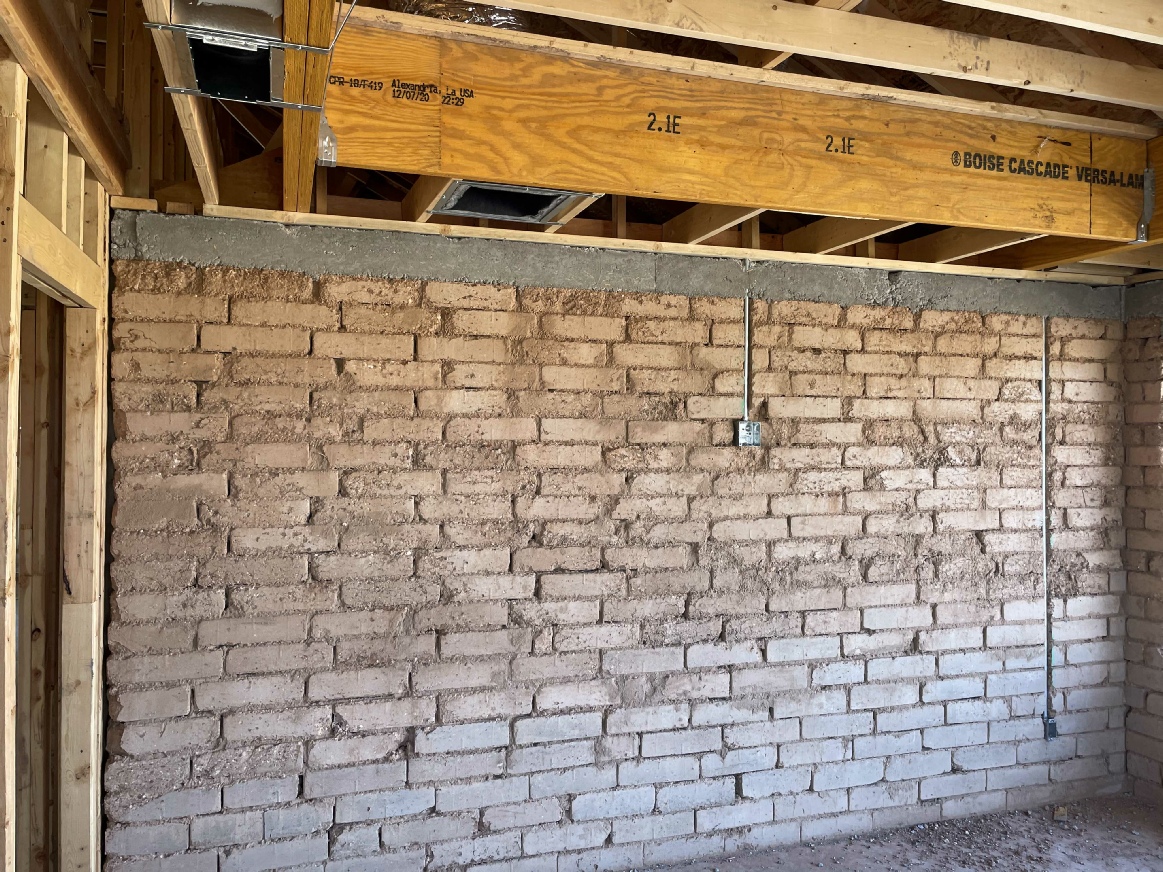

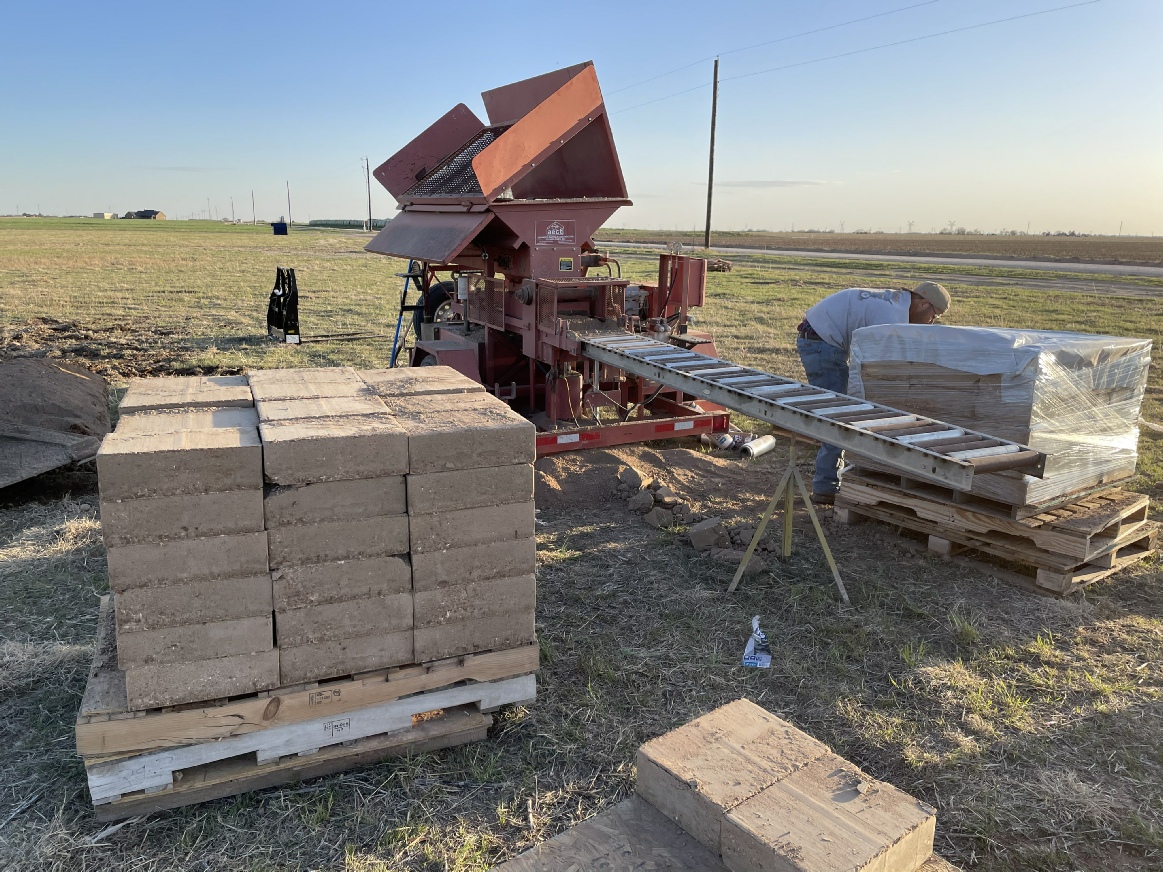

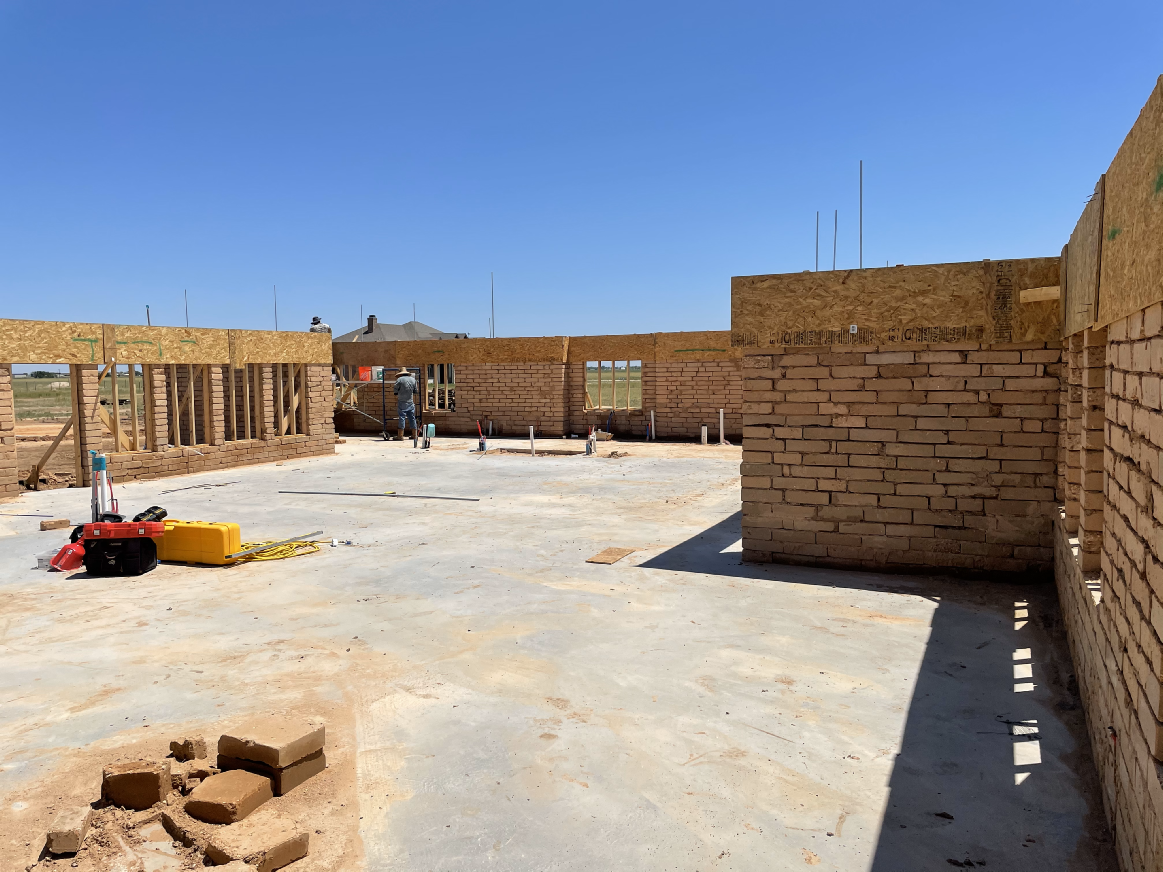

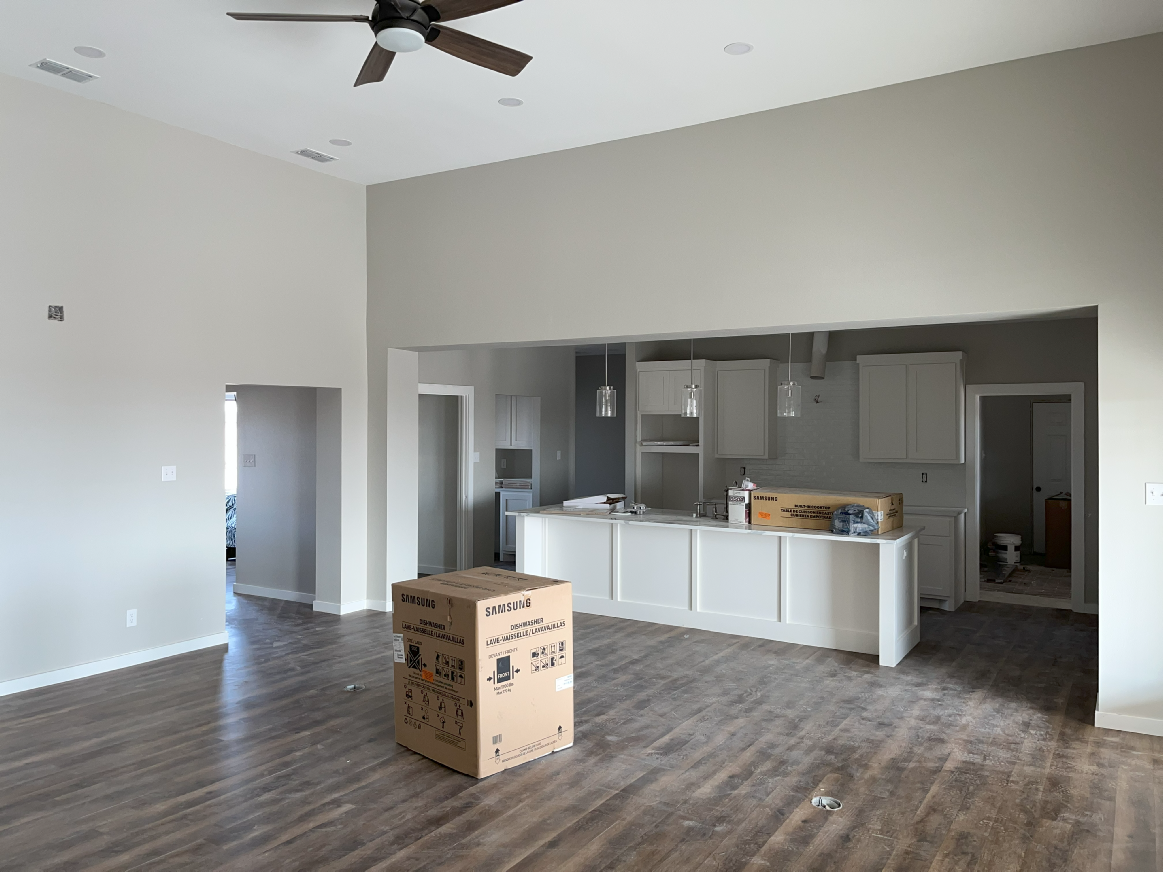

CONSTRUCTION PICTURES
